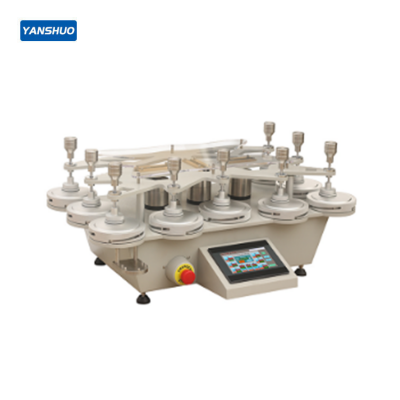

YG401G type Martin Dale wear resistance instrument
- 10 Unit / Units per Month
- T/T
You May Like
Product Description
[Scope of application]:
Used for the measurement of wear resistance, pilling performance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and nonwovens.
[meet a criterion]：
Wear resistance: GB/T 21196.2, GB/T 13775, ISO 12947, ISO 17704, ISO 5470-2, ASTM D4966, IWS TM 112, BS 2543, BS 3424-24, BS 5690, BS 8428, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096
Starting ball: GB/T 4802.2, ISO 129+45-2, ASTM D4970, IWS TM 196, M.S P17, Next TM26,198525
[ test pattern ]：
Mode 1: Circular samples and fabrics of the same material are rubbed under a specified pressure, following the Lissajous figure motion path. After reaching the specified number of rotations, the degree of pilling is evaluated. This principle corresponds to the standard test for fabric pilling degree (24*24mm).
Mode two: Under a specific pressure, circular fabric samples are rubbed against standard abrasives along the Lissajous curve, causing the samples to break. The wear resistance of the fabric is indicated by the number of times the samples break. This principle aligns with the standard test for fabric wear resistance (60*60mm).
Mode 3: Circular fabric samples are rubbed against standard abrasives under a certain pressure along a straight motion trajectory, resulting in sample damage. The wear resistance of the fabric is expressed by the number of wear times of the sample damage. This principle corresponds to the standard specified wear resistance test for fabrics (100mm).
[Instrument characteristics]:
1. There are three modes of motion trajectory:
Mode 1: The envelope surface is the trajectory of Lissajous (Lissajous) figure with 24 x 24mm
Mode 2: The envelope surface is a 60 x 60mm Lissajous (Lissajous) graphic trajectory
Mode 3: linear motion trajectory with a stroke of 100mm
2. Two counting methods, positive counting and reverse counting.
3. The design of the non-flipping guide plate makes it unnecessary to move the sample.
4. PLC modular control, 7-inch color touch screen, Chinese and English dual menu operation.
5, brushless motor drive, running smoothly and noiseless.
6. The key components such as grinding head and heavy hammer are made of high quality 316 stainless steel.
7. Import needle roller bearings to reduce the friction force on the guide rod. Each table is formed in one time by CNC grinding machine to ensure that each station is on the same plane and the test results of each station are consistent.
[ technical parameter ]：
1. Number of workstations: 9
2. Counting range: 0~999999 times
3. Maximum stroke: transverse: 60.5±0.5mm longitudinal: 24±0.5mm
4. Mass of pressurized material:
a. Holder: 198±2g
b. Weight of fabric sample hammer: 395±2g
C. Furniture decoration sample weight hammer: 594±2g
D, Type B holder: 155±1 g
e, stainless steel butterfly: 260±1g
5. Effective friction diameter of grinding block:
Type A 198g(1.96N) Friction head Φ28.65 ±0.05mm
Type B 155g(1.52N) Friction head Φ90 ±0.10mm
6. Relative motion speed between the holder and the grinding table: 50±2r/min (30-70r/min adjustable)
7. Sample pressing hammer quality: 2385±10g
8. Shape size: 850 x 650 x 350mm
9. Power supply: Ac220V 50Hz 500W
10. Weight: 150kg
