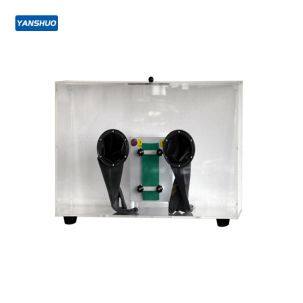

YG342S Electrostatic Decay Performance Tester

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 0 Unit / Units per Month
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

【Scope of Application】:
This instrument is suitable for determining the electrostatic decay performance of medical protective clothing and heat-sealable flexible antistatic barrier materials under specified laboratory environmental conditions. It applies a high-voltage electric field to the test material and then measures the charge decay time.

【Applicable Standards】:
GB 19082-2009 Technical requirements for medical disposable protective clothing, Clause 5.10; GJB 2605-1996 Specification for heat-sealable flexible antistatic barrier materials, Clause 4.7.16

【Technical Parameters】:

1. Test Voltage: 0V ~ 5KV, 0V ~ ---5KV

2. Decay Voltage: 100V ~ 4800V, digitally set

3. Pressurization Time: 1s ~ 3000s, digitally set

4. Decay Time: Real-time display, resolution 0.001s

5. Decay Mode: Two modes: Decay Ratio, Decay Voltage

6. Test Voltage Display: Test voltage, decay voltage displayed in real-time

7. Static Voltage Pressurization Timing Range: 1s ~ 10S, digital display

8. Static Voltage Decay Timing Range: 1s ~ 10S, digital display

9. Sample Decay Ratio: 10% ~ 99%, digitally set

10. Number of Samples: 1 piece ~ 9 pieces

11. Test Times: 1 time ~ 9 times

12. Main Unit Weight: kg

13. Instrument Power Supply: AC 220V±10%, 50Hz

14. Main Unit Dimensions: 835mm×430mm×560mm

【Instrument Features】:

1. The instrument adopts computer testing control technology combined with high-tech indicator programs, ensuring accurate and reliable testing, convenient and safe operation. It can be equipped with a printer. The screen intuitively displays the voltage applied to the sample and the decay time. Microcomputer control, intelligent testing, various indicator parameters are intuitive on the interface, clear at a glance, and simple to use.

2. Under compliant environmental conditions, after clamping the sample, click "Start" for a fully automatic operation process. Operators can complete testing tasks with minimal intervention.
