Home > Products > ABB > ABB PP865A 3BSE042236R2 Touch Screen

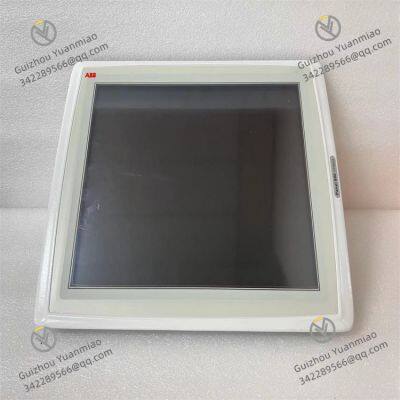

ABB PP865A 3BSE042236R2 Touch Screen

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Working humidity	5%-85% non-condensing
Storage temperature	-20 °C to + 70°C	Operating temperature	-10 °C to + 60°C

Product Description

The ABB PP865A 3BSE042236R2 is a high-performance touchscreen manufactured by ABB, belonging to the Panel 800 series.

Technical Parameters

Display: 10.1-inch TFT display with a resolution of 1024×600 pixels, capable of clearly displaying graphics and text, and supporting color display.
Power Supply: Input voltage is 24V DC.
Communication Interfaces:

Ethernet: 2 shielded RJ45 interfaces, supporting 1x10/100Base-T.
USB: 2 USB 2.0 interfaces providing 500mA current.
Serial Ports: 1 RS232 interface, 1 RS422/485 interface, and 1 RS485 interface (only when COM2 is set to RS485).

Other Parameters:

Frame material: White powder-coated aluminum, with the front foil made of the same material.
Power consumption: 21.6W.
Protection rating: Front IP65, NEMA 4X/12, and UL 4X/12 types; rear IP20.
Relative working humidity: 5%-85% (non-condensing).
Storage temperature: -20°C to +70°C.
Operating temperature: -10°C to +60°C.
Vibration and shock resistance: 1g / 15g.

Functional Features

Interaction Mode: Adopts resistive touch, featuring convenient operation, sensitive response, and supporting touchscreen input.
Real-time Clock: Equipped with a real-time clock function to provide accurate time information for the system.
Graphical Interface: Vector-based high-resolution graphics on the TFL/LED display, with icon-based interface, navigation, and control, offering a user-friendly and intuitive operation experience.
Programming Environment: The panel builder tool has a familiar Microsoft? Windows? environment and supports multiple languages, enabling fast, easy, and efficient engineering design.
Open Architecture: Built based on open architecture and technologies accompanying the .NET framework, capable of connecting multi-brand controllers. Multiple connection options are available for local communication, expansion, remote access, etc.

Dimensions and Weight

The net weight of the product is approximately 4.64kg. The dimensional information is not explicitly provided, but the overall design is relatively compact, suitable for installation on various industrial control devices.

Application Fields

Widely used in textile machinery, packaging machinery, power, pulp and paper industry, special machines, controller manufacturing, machine tool manufacturing, installation systems, electrical/electronic industry, assembly machinery, automotive industry, pallet packaging machinery, water/wastewater treatment, general mechanical engineering, food and beverage, and other fields.

Common Faults and SolutionsDisplay Faults

No Display or Black Screen:

Check the power connection to ensure the 24V DC input voltage is normal.
Inspect the power adapter and cables for damage and replace them if necessary.
For hardware failures, contact ABB after-sales service for maintenance or replacement of relevant components.

Blurred Display, Flower Screen, or Abnormal Color:

Re-plug the display cable after powering off.
Check and reset the resolution settings through relevant software.
Keep the device away from strong electromagnetic interference sources or add shielding measures.

Communication Faults

Inability to Communicate with Other Devices:

Check if the communication interface cables are loose or damaged, and try replacing the cables.
Confirm whether communication parameters (such as baud rate, data bits, stop bits) are set correctly, reset them, and restart the device.
For interface chip or main board communication module failures, seek professional maintenance or replacement.

Communication Interruption or Abnormal Data Transmission:

Use shielded network cables, ensure good grounding, and shorten the communication distance.
Optimize system configuration and programs to reduce communication load.
Check the device's communication buffer settings and appropriately increase the buffer size.

Operation Faults

Touchscreen Unresponsive or Partial Area Malfunctioning:

Wipe the screen with a clean soft cloth.
Enter the panel system menu to re-calibrate the touch.
If calibration is ineffective, the touchscreen may need to be replaced.

Touch Delay or False Touch:

Close unnecessary background programs and restart the panel to free up memory.
Check the software version and upgrade the panel firmware or re-download the configuration project through relevant software if necessary.
