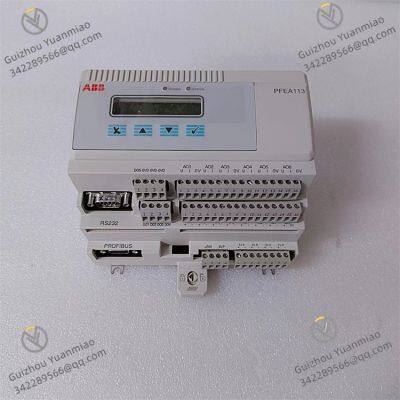

ABB PFEA113-20 3BSE050092R20 Tension Controller

Equipped with a high-performance processor, supporting real-time multi-task processing to quickly execute logical operations, mathematical calculations, and communication protocol parsing.

Built-in high-speed cache optimizes program operation efficiency, ensuring response speed (e.g., millisecond-level instruction processing) in complex control scenarios.

Flash Memory: Stores user programs (e.g., control logic, parameter configurations), supporting power-off retention to prevent data loss.

Random Access Memory (RAM): Temporarily stores operational data and intermediate results, supporting dynamic program calling.

Integrates multiple industrial communication protocol interfaces (e.g., Ethernet, Modbus, CANopen) to enable real-time data interaction with upper-level computers (HMI), other controllers, or field devices.

Supports remote programming and monitoring via Ethernet interfaces, enabling real-time feedback and parameter adjustment of device status.

Powered by 24VDC, with built-in power filtering and voltage stabilization circuits, featuring strong resistance to power fluctuations and ensuring stability in industrial environments.

Receives field sensor signals (e.g., temperature, pressure, position) through the module's input channels (requiring compatible I/O modules), converting physical quantities into electrical signals (e.g., 4-20mA, 0-10V, or digital signals).

After filtering and amplification, signals are converted into digital quantities (0/1 or numerical data) recognizable by the CPU.

Users write control programs via ABB's programming software (e.g., Control Builder M) based on IEC 61131-3 standards, supporting languages like ladder diagram and ST structured text, and download them to the module's flash memory.

The CPU executes programs cyclically according to the scan cycle: reads input status → performs logical operations (e.g., conditional judgment, PID control algorithm) → generates output instructions.

Supports custom algorithm modules, enabling integration of complex control strategies (e.g., motion control, process optimization algorithms).

Operation results are sent to actuators (e.g., motors, valves, relays) through output channels to drive equipment actions.

Output signal types can be configured as analog (e.g., 4-20mA for valve opening control) or digital (e.g., relay contact switching for motor start/stop) based on load requirements.

The module has built-in diagnostic functions to real-time monitor its own operating status (e.g., temperature, memory usage, communication links), and feedback abnormal information (e.g., fault codes) via indicator lights or communication interfaces.

Supports communication with upper-level systems (e.g., SCADA) to upload device data (e.g., operating parameters, alarm records), enabling remote monitoring and fault early warning.
