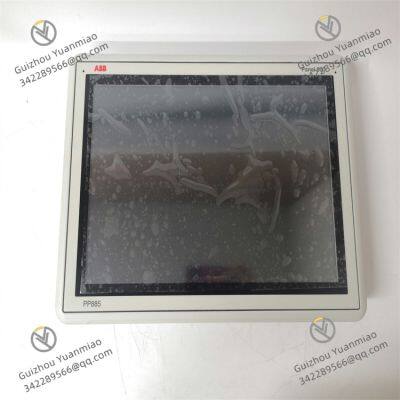

ABB PP885 3BSE069276R1 Touch Screen Module

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 8 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Input voltage	+24V DC
Dimensions	292mm×212mm×58mm	Weight	1.2kg
Operating temperature	-10℃ to +60℃

Product Description

ABB PP885 3BSE069276R1 Operator Panel

Basic Information

Model Affiliation: An industrial touchscreen module of the ABB Panel 800 series, positioned as a high-performance Human-Machine Interface (HMI) for monitoring and controlling complex industrial automation systems.
Product Type: Industrial-grade touchscreen panel supporting equipment status display, parameter adjustment, alarm management, and data interaction.

Technical Parameters

Parameter Category	Detailed Specifications
Display Specifications	10.4-inch TFT color display, resolution 800×600 (4:3), brightness 350 cd/m2, LED backlight, supporting clear graphic and text display.
Processor	ARM9 architecture, 1GHz clock speed, featuring fast data processing and low response latency.
Memory Configuration	512MB main memory, 2GB SSD external storage (approx. 1.5GB available space for application and data storage).
Power Requirements	Input voltage +24V DC (voltage range 18–32V DC), with wide voltage design adapting to voltage fluctuations in industrial environments.
Physical Dimensions	292mm×212mm×58mm, weight approx. 1.2kg, compact design for easy cabinet installation.
Operating Environment	Working temperature -10°C to +60°C, maximum relative humidity 85% (non-condensing), resistant to vibration and impact, suitable for harsh industrial scenarios.
Communication Interfaces	Supports Ethernet (2 channels), RS-232/RS-485 serial communication, compatible with protocols like Modbus and Profibus. The open architecture enables seamless connection with multi-brand PLC/DCS systems.

Functional FeaturesDisplay and Interaction Performance

Large-size TFT screen with vector graphics rendering technology ensures smooth interface, supporting icon-based navigation and custom layout with intuitive operation logic.
Resistive touchscreen supports single-point touch, with sensitive response, suitable for gloved operation in industrial scenarios, and resistant to oil, dirt, and dust.

Engineering and Programming Convenience

Equipped with Panel Builder programming tools, compatible with Windows environment, supporting multi-language development (e.g., Chinese, English, German, etc.), reducing engineering design barriers.
Supports modular design of configuration projects, enabling rapid deployment of interface elements (buttons, gauges, trend charts, etc.), and customizing alarm and data recording functions.

Communication and Expandability

Open .NET framework architecture supports communication with controllers from brands like ABB, Siemens, and Schneider, adapting to integration needs of different industrial systems.
Supports local communication, remote Ethernet access, and expansion interfaces (e.g., USB), enabling connection to peripherals like printers and USB drives.

Reliability Design

Housing made of powder-coated aluminum, with high front protection rating (e.g., IP65), resistant to moisture, dust, and minor impacts, suitable for strongly interfering environments such as petroleum, chemical, and metallurgy industries.
Wide-temperature design and electromagnetic compatibility (EMC) capability ensure long-term stable operation.

Application Fields

Industrial Scenarios: Petroleum and chemical (reactor monitoring, pipeline process control), metallurgy and mining (rolling mill equipment management, furnace temperature regulation), power energy (substation automation, generator set monitoring), cement and building materials (production line visual management), water treatment (pump station automation control), etc.
Core Functions: As the human-machine interaction hub, it realizes real-time equipment status monitoring, online process parameter adjustment, fault alarm prompting, historical data query and export, enhancing the operability and efficiency of automation systems.

Common Faults and SolutionsDisplay-Related Faults

Issue: Black screen or no display.

Check the power adapter and cables, confirm normal 24V DC input; re-plug the display cable after powering off to troubleshoot poor contact.

Issue: Blurred display or abnormal color.

Reset the resolution setting (800×600), check backlight brightness adjustment; keep away from strong electromagnetic interference sources (e.g., frequency converters, motors).

Communication-Related Faults

Issue: Inability to communicate with the controller.

Check if communication cables (Ethernet/RS485) are damaged, confirm interface pin definitions match the protocol (e.g., Modbus RTU/ASCII); verify parameter settings (IP address, baud rate, etc.), restart the device to refresh the connection.

Issue: Data transmission delay or interruption.

Use shielded cables with reliable grounding, shorten the communication distance; optimize program logic, reduce the number of simultaneously communicating devices to lower the load.

Operation-Related Faults

Issue: Touchscreen unresponsive or partial area malfunction.

Clean the screen surface with a soft cloth, re-calibrate touch coordinates through system tools; if calibration is ineffective, the touchscreen sensor may need replacement.

Issue: Operation lag or program crash.

Close background redundant programs to free up memory; check the firmware version and upgrade to the latest version via ABB official tools to fix compatibility issues.

Comparison with Series Products (PP881, PP877K)

Model	PP885 (3BSE069276R1)	PP881 (3BSE092978R1)	PP877K (3BSE069274R1)
Screen Size/Resolution	10.4-inch (800×600)	7-inch (800×480)	Not specified (presumed small-size LCD)
Processor	ARM9 (1GHz)	ARM9 (1GHz)	MPC860 (24MHz)
Memory/Storage	512MB memory + 2GB SSD	512MB memory + 2GB SSD	36MB memory
Communication Interfaces	Dual Ethernet + multiple serial interfaces, multi-protocol support	Same as above	2 Ethernet + serial interfaces, narrower protocol compatibility
Application Scenarios	Large complex systems (e.g., process control, energy management)	General industrial automation (medium-small equipment monitoring)	Basic factory automation (lower processor performance)
Protection & Environment	-10℃~+60℃, high protection rating	-10℃~+60℃, high protection rating	+5℃~+55℃, conventional industrial environment

Summary

As a high-end model of the Panel 800 series, the ABB PP885 3BSE069276R1, with its large-size display, high-performance processor, and strong expandability, is suitable for complex industrial scenarios with high visualization requirements. Its open architecture and reliable design give it advantages in fields such as petroleum, metallurgy, and power. When using it, pay attention to communication parameter configuration and environmental compatibility to ensure stable operation.
