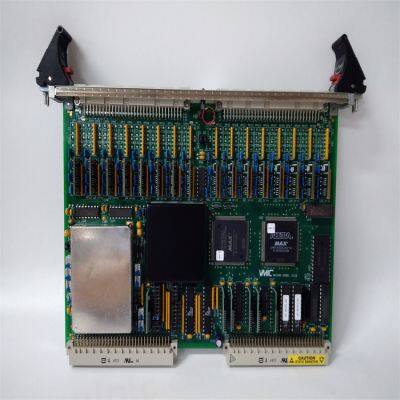

GE VMIVME-3122 Data Acquisition and Control Board

The GE VMIVME - 3122 is a high-performance data acquisition and control board card launched by GE Company based on the VME bus. Functional Features High-resolution Analog-to-Digital Conversion: With a 16-bit digital resolution, it can accurately convert analog signals into digital signals, which is suitable for measurement and control scenarios with high precision requirements. Abundant Input Channels: It provides 64 differential or single-ended analog input channels and has an automatic scanning function. It can simultaneously collect and process multiple analog signals, greatly improving the efficiency of data acquisition. Flexible Operation Modes: It supports various operation modes such as automatic scanning, data burst, and external synchronization. It can be configured according to different application requirements to meet various complex control and data acquisition tasks. Program-controlled Gain: The gain can be controlled through the program, which can adapt to analog input signals of different amplitudes, improving the versatility and adaptability of the board card. Built-in Timer and Interruptor: Equipped with an interval timer, bus interruptor, channel counter, and mid-scan/end-scan flags, etc., it simplifies the monitoring of data in the dual-port data buffer and facilitates synchronization and data interaction with other devices.

Physical Characteristics Standard VME Bus Interface: Adopting a 6U VME bus form factor, it can be conveniently inserted into the VME bus system, combined and expanded with other VME modules to build complex industrial control systems. Compact Size: The physical size is 160mm×233.25mm×20.32mm, occupying a small space, and it is suitable for use in equipment with limited space. Multiple User Connectors: It provides a 34-pin floppy disk drive connector and a 40-pin IDE connector, which can be connected to floppy disk and hard disk drives. A flash drive can also be optionally configured to facilitate data storage and transmission. Performance Parameters Strong Environmental Adaptability: The operating temperature range is from 5°C to 50°C, and the storage temperature range is from -25°C to 60°C. It can operate stably within a relatively wide temperature range. The humidity range is from 20% to 80%, non-condensing, and it has a strong ability to resist moisture. Power Requirements: The power supply voltage is +5V, the maximum current is 2.5A (rotating), and the typical current is<1.0A. The flash drive has different power consumptions under different voltages. At 3.3V, the sleep power consumption is 200μA, the power consumption of the card reader is 32 to 80mA, and the power consumption of the card writer is 32 to 80mA; at 5.0V, the sleep power consumption is 500μA, the power consumption of the card reader is 46 to 120mA, and the power consumption of the card writer is 46 to 120mA.

Application Areas Industrial Automation: It can be used for data acquisition and process control in factory automation production lines, such as monitoring the operating status of production equipment and collecting sensor data, etc., providing a basis for the optimization of the production process and fault diagnosis. Process Control: In the field of process control such as chemical industry, power, and metallurgy, it accurately measures and controls various analog quantities, such as the monitoring and adjustment of parameters like temperature, pressure, and flow rate, to ensure the stability and safety of the production process. Data Acquisition System: As the core component of the data acquisition system, it collects various analog signals and converts them into digital signals, making it convenient for computers to process and analyze. It is widely used in scientific research, experiments, and other fields. Training Simulators and Laboratory Instruments: In training simulators, it simulates the signal acquisition and control of various actual scenarios, providing a practical operation environment for trainees; in laboratory instruments, it is used for data acquisition and analysis to help researchers conduct experimental studies.
