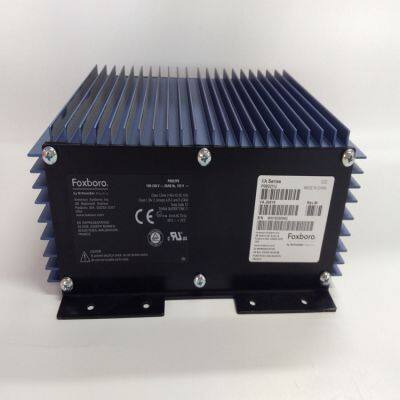

Foxboro P0922YU FPS400-24 Power Supply Module

Basic Information Model: P0922YU FPS400 - 24, belonging to the Foxboro standard 200 series power supply. Input Voltage: 120/240VAC or 125VDC input. With an operating frequency of 47 to 63Hz, it can provide an AC voltage range of 85 to 265V or a DC voltage range of 108 to 145V, meeting the power requirements worldwide. Output Voltage: 24VDC. Power: 400W.

Installation method: It supports horizontal or vertical DIN rail installation. There are also holes for bracket or wall installation.
Status monitoring: Equipped with LED status indicator lights. The red LED indicates undervoltage (
Input current: 5.6A (maximum RMS value) when the input is 85V AC, and 2.5A (maximum RMS value) when the input is 230V AC.
Inrush current: 20A when the input is 110V AC (peak value during cold start); 40A when the input is 220V AC (peak value during cold start).
Certification: It has been certified by relevant institutions for use in Division 2 and Zone 2 applications, and has certifications such as CE and UL.

Product Features High Efficiency: The highest efficiency can reach 95% when the input is AC, and the efficiency is approximately 81% when the input is DC. The high efficiency can reduce the operating cost, minimize heat generation, and improve reliability. Comprehensive Protection Functions: It has overcurrent protection, which can limit the output current to 110% of the rated load to prevent equipment damage due to overload. It also has overvoltage protection, which is set to turn off at 28.0VDC at the factory to protect the system from voltage spikes. Wide Applicable Environment: The protection level reaches G3, making it suitable for harsh environments. The operating temperature range is from -30°C to 71°C, the storage temperature range is from -55°C to +85°C, and the relative humidity is 5% to 95% (non-condensing), enabling it to operate stably in various industrial environments. Convenient Installation: It supports horizontal or vertical DIN rail installation. There are also holes for bracket or wall installation. The installation method is flexible, making it easy to deploy in different scenarios. Easy Status Monitoring: It is equipped with LED status indicator lights. The red LED indicates undervoltage (

Building Automation: It supplies power to equipment in the building automation system, such as lighting control, air conditioning systems, elevator systems, etc., realizing the intelligent management of buildings and the optimized utilization of energy. Transportation System: In aspects such as traffic signal control, railway station and airport equipment, it provides the required electrical energy for relevant equipment, ensuring the normal operation of transportation facilities and traffic safety. Data Center: It ensures the reliable operation of key equipment such as servers and network devices, provides basic power support for the stable operation of the data center, and guarantees the security of data and the continuity of business. Medical Equipment: It provides a stable power supply for medical equipment such as diagnostic instruments and treatment equipment, ensuring the normal operation of medical equipment and guaranteeing the quality and safety of medical services.
