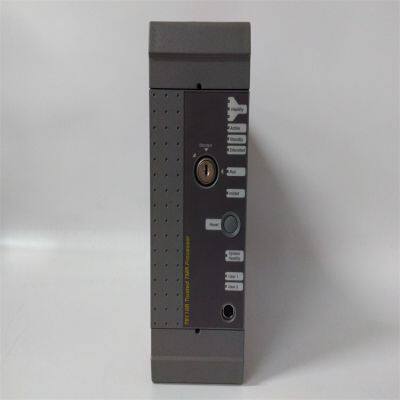

ICS Triplex T8110B Trusted TMR Processor

ICS Triplex T8110B is a system module based on a triple-core processor, featuring high reliability, modular design, etc. Features Digital Input Function: It can receive digital signals, such as switch signals or discrete status signals, which are usually generated by switches, buttons, sensors, etc. High Reliability and Durability: The important internal circuits adopt a triple fault-tolerant design, which can meet the high requirements of industrial automation and control systems for stability and safety, ensuring that the system can still execute programs correctly when internal faults occur. Modular Design: It is a pluggable module, which is convenient for installation, replacement or maintenance, easy for troubleshooting and function upgrading, and can well meet the needs of users. Extensive Connectivity: It can receive input signals and generate output signals, and can connect to various sensors, actuators and other external devices, and is applied to multiple fields such as industrial automation, safety systems, environmental monitoring, and energy management.

Installation Steps Preparation before Installation: Confirm that the module is in good condition and all accessories are complete. Prepare tools such as screwdrivers required for installation. Select a suitable installation location, usually a control room, which requires no strong electromagnetic interference around, and the environmental temperature, humidity, etc. should meet the requirements of the device. At the same time, cut off the relevant power supply, and ensure that the RSLinx? gateway and ControlFLASH program have been installed and configured, and the ControlFLASH file has been downloaded from the Rockwell Automation website and installed in the ControlFLASH program, and the IP address has been configured for the processor module. Install the Device: Install the T8110B module into the corresponding chassis (such as the T8100 chassis). According to the installation instructions of the chassis, use fixing devices such as screws or buckles to secure the module in the installation position. Connect various cables, including power cables, signal cables, etc. Pay attention to the types of cable interfaces and pin definitions to ensure correct connections, and tighten the connectors to prevent loosening. Inspection after Installation: Check again whether the connection between the module and the chassis is firm and whether the cable connections are correct. After turning on the power supply, check whether the power indicator light of the module is normally on, and check whether the module can start normally and perform a self-check. Configuration Method Preparation before Configuration: Ensure that the computer has installed the configuration software compatible with the T8110B module. Connect the computer to the module using a communication cable to ensure normal communication. Configuration Process: Launch the configuration software, and search for and identify the connected T8110B module through the software. Set the output command feedback length, which is 0 by default and can be set to 16 as needed. Configure the diagnostic reference address and length, set the starting address of the channel diagnostic status data, which is the next available %I block by default. The default value of the diagnostic reference length is 0, and changing it to a non-zero value can enable the channel diagnostic mapping. Set the module status reference address and length, the starting address of the module status data is the next available %I block by default. The default value of the module status reference length is 0, and changing it to a non-zero value can enable the module status data mapping. Testing after Configuration: Conduct a function test on the module to check whether it can correctly receive and process digital input signals, and whether it can output corresponding signals according to the configuration requirements. Check whether the diagnostic function is normal, that is, when simulating some fault situations, check whether the module can correctly generate diagnostic information and feedback it through the set address. Test the module status monitoring function, and confirm whether the module status data can be accurately mapped to the set address so that the host computer or other monitoring systems can obtain the running status information of the module in a timely manner.

Troubleshooting Methods for ICS Triplex T8110B:

1. Hardware Connection Inspection Power Supply Issue: If the module does not respond at all, first check whether the power connection is normal. Confirm that the power cable is firmly connected without looseness or damage. Use a multimeter to measure whether the power supply voltage is within the rated operating voltage range of the module (refer to the voltage value specified in the module manual). If the voltage is abnormal, check whether the power supply equipment, such as the power module, UPS, etc., is working properly. Module Installation: Check whether the T8110B module is correctly installed in the chassis, and ensure that the module is closely connected to the chassis slot without looseness or tilting. You can try to unplug and replug the module to ensure a reliable connection. At the same time, check whether the fixing screws of the module are tightened to prevent the module from loosening due to reasons such as vibration. Cable Connection: Check all the cables connected to the module, including input signal cables, output control cables, communication cables, etc. Check whether the cable connectors are firm and whether there are signs of looseness, oxidation or damage. For communication cables, check whether the types of connected interfaces, such as Ethernet interfaces, serial ports, etc., match, and ensure the correct connection. You can try to replace the cable to rule out the possibility of a cable fault.

2. Indicator Light Status Analysis Power Indicator Light: If the power indicator light is not on, in addition to checking the power connection, also check whether there is a fault in the power circuit inside the module. If the power indicator light flashes abnormally, it may indicate unstable power supply or power-related problems inside the module. Operation Indicator Light: Under normal circumstances, the operation indicator light should flash regularly or remain on constantly (refer to the specific status in the module manual). If the operation indicator light is not on or flashes abnormally, it may indicate that there is a problem with the software operation of the module, or that key components such as the processor inside the module have failed. Fault Indicator Light: When the fault indicator light is on, it means that the module has detected a certain fault. Refer to the instructions about the fault indicator light in the module manual to understand the specific fault code or meaning, so as to further troubleshoot the cause of the fault. For example, it may be a fault in a certain input channel, a communication fault, etc.

3. Input Signal Inspection Signal Source Issue: If the input signal of the module is not correctly displayed or processed, first check whether the signal source is working properly. For example, for the connected digital input signal, check whether the switch can be normally closed and opened, and whether the output signal meets the input requirements of the module (such as voltage amplitude, signal type, etc.). For analog input signals, check whether the sensor is working properly and whether the output analog signal is within the input range of the module. Input Channel Fault: Use test equipment (such as a signal generator, etc.) to input known standard signals into the input channels of the module, and check whether the module can correctly receive and process these signals. If a certain input channel does not work properly, it may be that the hardware circuit of this channel has a fault, such as damage to the input interface, short circuit or open circuit in the internal circuit, etc. You can try to replace the input channel of the module (if there is a redundant channel) to confirm whether it is a problem with the channel itself.

4. Output Signal Inspection Load Issue: When the output signal of the module cannot drive the load normally, check whether the load is working properly and whether its rated voltage, current and other parameters match the output capacity of the module. For example, for a module with relay output, check whether the relay can be normally attracted and released, and whether there is damage or poor contact of its contacts. For analog output signals, check whether the load can correctly receive and process the analog signal. Output Channel Fault: Send test signals to the output channels of the module through software or other test tools, and check whether the module can correctly output the corresponding signals. If a certain output channel does not work properly, it may be that the hardware circuit of this channel has a fault, such as damage to the output drive circuit, failure of the interface chip, etc. You can try to replace the output channel of the module (if there is a redundant channel) to confirm whether it is a problem with the channel itself.

5. Communication Fault Troubleshooting Communication Parameter Setting: Confirm whether the communication parameter settings of the module are correct, including communication protocol (such as Modbus, Profibus, etc.), baud rate, data bits, stop bits, parity check, etc. Check whether the communication parameter settings of other devices (such as PLC, host computer, etc.) communicating with the module are consistent with those of the module. If the communication parameter settings are incorrect, it may lead to communication failure. Communication Line Issue: Check whether the communication cable is normal, including whether the cable connection is firm, and whether there is damage or interference, etc. For Ethernet communication, check whether the network connection is normal and whether the network equipment (such as switches, routers, etc.) is working properly. You can try to use network test tools (such as the ping command) to test the network connectivity between the module and other devices. Communication Interface Fault: If the communication cable and parameter settings are all normal, but communication is still not possible, it may be that the communication interface of the module has a fault. You can try to replace the communication interface (if there is a redundant interface) or use other communication methods to confirm whether it is a problem with the interface itself.
