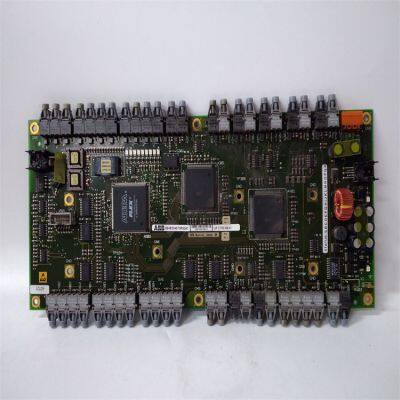

UFC760BE41 3BHE004573R0041 Control Module

Functional Features High Performance: It provides excellent control and monitoring capabilities for complex industrial processes. Reliable Operation: Ensures stable and reliable operation even under harsh industrial conditions. Easy Integration: It can be seamlessly integrated into ABB's existing automation systems. Efficiency Enhancement: Optimizes processes and improves operational efficiency and productivity.

Working Principle:

Power Supply and Management: This module uses a working voltage of 24V DC. The power supply part is responsible for stabilizing and filtering the input DC power supply, providing a stable and reliable power supply for various circuits and electronic components inside the module. Through the power management circuit, it can also monitor the power supply status. When there is a power supply anomaly (such as overvoltage or undervoltage), it may trigger the corresponding protection mechanism to prevent damage to the module.

Data Collection (Input Function): It has 16 digital input/output channels. For the digital input channels, the module receives digital signals from external devices (such as sensors, switches, buttons, etc.) through the interface circuit. These digital signals usually exist in the form of high and low levels. The module will sample and process the input signals, convert them into internally recognizable digital quantities, and store them in corresponding registers or memory areas for subsequent logical processing and control decisions. For example, when the connected switch is closed, the module will detect the high-level signal and record it.

Logical Processing and Control Decision-making: The central processing unit (CPU) or microcontroller inside the module is the core component, which runs pre-written control programs and algorithms. According to the data collected by the input channels and the set control logic, the CPU analyzes, calculates, and judges the data, and then makes corresponding control decisions. For instance, in an industrial production process, when the signal of a certain sensor reaches a specific threshold, the CPU will decide whether to start or stop a certain actuator device according to the preset control strategy.

Control Output: According to the results of logical processing, the module sends control signals to external devices through the digital output channels. For the digital output channels, switching elements such as transistors are usually used to achieve signal output. When the CPU issues a control instruction, the output circuit will convert the corresponding signal into an appropriate level or current to drive external actuators (such as relays, solenoid valves, motor drivers, etc.) to act, thus realizing the control of industrial equipment. For example, controlling the suction or release of a relay to control the on-off of the circuit or the start and stop of the equipment.

Communication Function: It supports standard industrial communication protocols such as Ethernet and Modbus. The communication interface circuit is responsible for data exchange with other devices (such as controllers, host computers, other modules, etc.). Through the Ethernet interface, the module can establish a connection with other devices in the network, receive control instructions, parameter settings, and other information from the host computer, and at the same time, feedback its own operating status, collected data, etc. to the host computer. Modbus communication allows the module to communicate with devices that follow the Modbus protocol, achieving interconnection and collaborative work among different devices.

Fault Monitoring and Diagnosis: The module is equipped with some fault monitoring and diagnosis mechanisms. By monitoring key parameters of the internal circuit (such as voltage, current, temperature, etc.) in real time and checking the rationality of the input and output signals, it can determine whether the module is operating normally. When a fault is detected, the module will send out fault alarm information through indicators, communication interfaces, etc., so that users can troubleshoot and repair the fault in a timely manner.

Common faults may include the following:

Power Supply Fault: The working voltage is 24V DC. If the power supply is unstable, such as excessive voltage, low voltage, or voltage fluctuations, it may cause the module to fail to work properly. Situations such as damage to the power supply module itself, loose or broken power cord connections, etc. will also cause power supply faults, manifested as no power supply indication for the module, inability to start, etc.

Communication Fault: This module supports standard industrial communication protocols such as Ethernet and Modbus. When the communication cable is damaged, poorly connected, or the communication parameter settings are incorrect (such as IP address conflicts, inconsistent baud rates, etc.), communication faults will occur. It may lead to the inability of the module to perform data transmission and exchange with other devices (such as controllers, host computers), and the device status indicator will display abnormal communication-related error information.

I/O Channel Fault: The module has 16 digital input/output channels. The input channels may have the situation where the signal cannot be collected normally, such as sensor failure, short circuit or open circuit of the input signal line, damage to the input interface, etc., resulting in the module's inability to obtain the correct external signal status. The output channel fault may be manifested as the inability to output control signals, or unstable output signals, such as damage to the transistor output, output protection caused by a short circuit of the load, etc., affecting the control of external devices (such as actuators, relays).

Overheating Fault: Within the working temperature range of -20°C to 70°C, if the environment where the module is located has poor heat dissipation, such as blocked vents, high-temperature equipment around, etc., it may cause the internal temperature of the module to be too high, exceeding the normal working range. Overheating may cause a decline in the performance of the module, resulting in an unstable working state. In severe cases, it may cause the module to automatically protect and shut down, affecting the operation of the entire system.

Software Fault: The control program of the module may have errors or abnormalities, such as program crashes, logical errors, software version incompatibilities, etc. This may cause the module to fail to work as expected, or produce incorrect control outputs. Software faults may also be manifested as parameter loss, requiring the re-setting and configuration of the module's parameters.

Hardware Damage: Due to long-term use or the influence of external factors such as impact, vibration, and electromagnetic interference, the electronic components inside the module (such as chips, capacitors, resistors, etc.) may be damaged. Hardware damage may lead to partial or complete loss of the module's functions, making it unable to operate normally.
