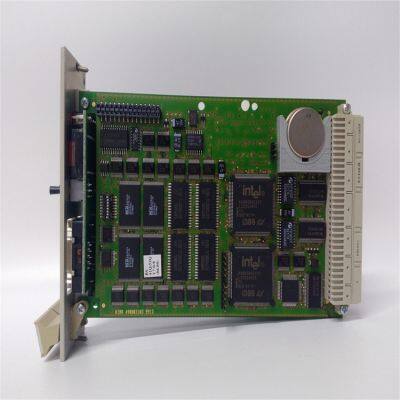

HIMA F8652E Central Module

Functional Features Core Processing Function: As the core processing unit of the safety controller, it is responsible for handling safety-related logic and calculations to ensure the safe operation of industrial processes. Communication Function: It supports multiple communication interfaces, such as Profibus, Profinet, and Ethernet/IP, etc. It can be easily integrated with other control systems and devices, and can be conveniently compatible with common network protocols to achieve data exchange and collaborative work between systems. Redundancy and Fault Safety Mechanism: Adopting a dual 1002D structure, that is, a 2004D structure, it provides a fault-tolerant function. The failure of any component in the system will not affect the normal operation of the system, providing reliable safety guarantees for critical applications. Multi-axis Motion Control: It can support the movement of up to four axes. The motion modes include coordinated motion, point-to-point positioning, and jogging, which are suitable for occasions that require precise motion control.

Technical Parameters Dimensions: The length is 163mm, the width is 38mm, and the height is 58mm. With a compact size, it can adapt to various installation spaces. Electrical Parameters: The operating voltage is generally 24V DC, the operating current is 60mA, and the maximum fuse is 4A slow blow. The load capacity of the relay contact is 30V/4A (continuous load), and the switching time is approximately 100ms. Space Requirement: 4TE.

Application Cases Process Industry: In the fields of process industries such as the chemical industry, petroleum, and natural gas, it is used for precise control and safety monitoring of the production process to ensure that production is carried out within safe parameter ranges and prevent accidents. Power Plants: In power plants in the power industry, it participates in the control of generator sets, power grid monitoring, and the control of auxiliary equipment to ensure the stability of the power generation process and the safe connection of the power grid. Other Safety-critical Environments: For example, in some industrial scenarios with extremely high safety requirements, such as the mining and metallurgical industries, it can also play the role of safety control and monitoring to protect the safety of personnel and equipment.

The HIMA F8652E is usually installed in a 19-inch sub-rack. The general installation steps are as follows: 1. Preparation before installation: Turn off the power supply of the relevant system to ensure that the installation is carried out in a de-energized state. Prepare the required tools, such as a screwdriver, etc., and confirm that the installation environment meets the requirements of the module, including temperature, humidity, electromagnetic environment, etc. 2. Module installation: Insert the F8652E module smoothly into the selected slot, ensure that the module is firmly connected to the slot, and use tools such as a screwdriver to fix the installation screws of the module. In the HIMA PES system, the slots of the sub-rack have certain allocation rules. If it is a PES system with a redundant I/O bus, pay attention to installing the module into the corresponding I/O bus slot according to the rules. 3. Cable connection: Connect the power and communication cables of the module, and correctly connect them to the corresponding interfaces according to the instruction manual. Ensure that the connections are firm to avoid problems such as poor contact caused by looseness.
