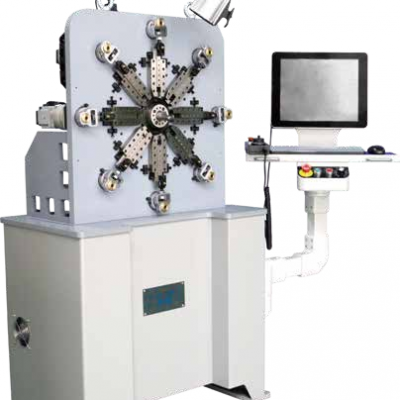

us-1025CNC Camless Spring Coiling Machine
≥1 Piece
- 500 Piece / Pieces per Month
- T/T L/C PayPal D/P Western Union Other
You May Like
-
us-1040CNC Camless Spring Coiling Machine
-
US-TP35-7 Copper Busbar Punching, Bending, and Forming Integrated Machine
-
US-1225REW Multi-function Copper Wire Forming Machine
-
us-508 High-speed coil spring forming machine
-
us-512 High-speed coil spring forming machine
-
us-510 High-speed coil spring forming machine
Product Details
| Brand Name | unionspring | Place of Origin | China | |
| Model Number | us-1025 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Model | US-1010 | US-1025 |
Axis | 10~12 | 10~12 |
Wire Feed Wheel Sets | 1Set | 3Sets |
Slide Axis | 0.75KW×8 | 0.75KW×8 |
Quill Rotary Axis | 0.4 KW | 0.75KW |
Wire Feeding Axis | 1.0KW | 2.7KW |
Spinner Axis(Optional) | 0.4KW | 0.4KW |
Free Arm Axis(Optional) | 0.4KW | 0.4KW |
Dimension (LxWxH) | 1350x600x1550 (mm) | 1500x850x1750 (mm) |
Weight (kg)
| 500kg | 1100kg |
Machine features:
1. The machine adopts a camless design, which reduces the technical requirements for spring debugging and greatly reduces the setting time. It is at least 50% faster than using a cam machine to set up.
2. The machine uses Sanyo servo motors, high-precision reducers, bearings and gears to effectively guarantee the stable and high-energy operation of the machine and increase the machine's service life.
3.The machine is equipped with an industrial professional-grade computer operating system, multi-language display, easy-to-understand operation, rich functions, and can meet complex multi-task requirements.
3. The operating system has intelligent overload protection, automatic detection and alarm of wire feed rack disconnection, and the intelligent and sensitive protection module can provide effective protection for the safety of the operator and the spring machine.
