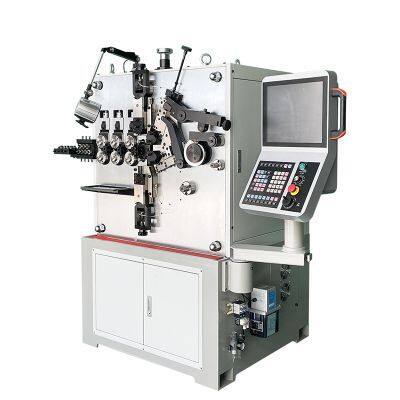

us-560 High-Speed CNC Spring Coiling Machine
≥1 Piece
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
Product Details
| Brand Name | unionspring | Place of Origin | China | |
| Model Number | us-560 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Model | US-540 | US-560 |
Wire Diameter | ?1.0～?4.0MM | ?2.0～?6.0MM |
Axis | 5 | 5 |
Wire Feed Wheel Sets | 3Sets | 3Sets |
Max.Outside Diameter | ?80mm | ?90mm |
Max. Feeding Speed | 100m/min | 90m/min |
Wire Feeding Axis | 5.5KW | 15KW |
Cam Axis | 1.8KW | 2.7KW |
Upper Cutter Axis | 1.8KW | 5.5KW |
Lower Cutter Axis | 1.8KW | 5.5KW |
Spacing Axis | 1.8KW | 1.5KW |
Dimension (LxWxH) | 1800*1100*1800(mm) | 2100*1500*2100(mm) |
Weight (kg) | 1300kg | 2600kg |
Machine features:
1. The machine uses a planetary reducer, which requires no oil filling, reducing the risk of oil immersion in the servo motor. An elastic diaphragm coupling is used as the cutting coupling to reduce damage to the encoder caused by cutting vibration.
?
2. The machine uses high-quality materials for special processing of the slide track and skateboard to ensure that the hardness and wear resistance are at their peak.
3. The equipment is equipped with a precise detection and tracking system to realize automatic shutdown of unqualified products, thereby improving product quality while ensuring qualification.
4. The machine adopts a wireless, automatic shut-down design for wire breakage and wire tangling and an uncoiler acceleration function to make production easier and more efficient.
5. The machine can be used to produce torsion springs, straight springs, tension springs, rectangular springs, wire forming, spiral springs and various fancy springs and difficult special-shaped springs.
