Home > Products > spring machine > us-416 High-Speed CNC Spring Coiling Machine

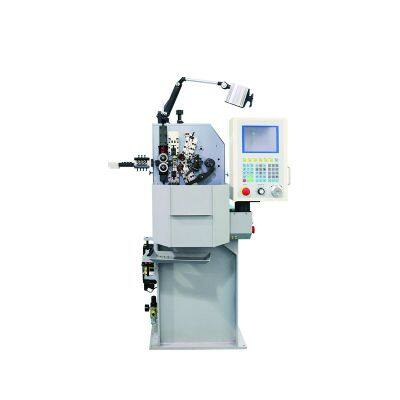

us-416 High-Speed CNC Spring Coiling Machine
≥1 Piece
- 500 Piece / Pieces per Month
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
Product Details
| Brand Name | unionspring | Place of Origin | China | |
| Model Number | us-416 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Model | US-408 | US-416 |
Wire Diameter | ?0.15～?0.8MM | ?0.3～?1.6MM |
Axis | 4 | 4 |
Wire Feed Wheel Sets | 1Sets | 2Sets |
Max.Outside Diameter | ?20mm | ?30mm |
Max. Feeding Speed | 150m/mm | 125m/mm |
Wire Feeding Axis | 0.75KW | 2.0KW |
Spacing Axis | 0.75KW | 1.0KW |
Cutter Axis | 0.75KW | 1.0KW |
OD Control Axis | 0.4KW | 1.0KW |
Dimension (LxWxH) | 900*900*1580(mm) | 1100*900*1600(mm) |
Weight (kg) | 450kg | 600kg |
Machine features:
① This machine is a four-axis coiling machine, using Sanyo servo motor, each axis can be controlled independently.
② A free length detection and sorting device can be installed, which can automatically correct the pitch and ensure spring accuracy and consistency.
③The zero point of each working axis can be set freely (to meet the actual machine adjustment needs)
④The machine has optional rotary cutting tools
⑤Humanized computer operation, manual testing is consistent with automatic production.
⑥Mainly suitable for processing various precision compression springs (coil springs), simple torsion springs, other spring products within the wire diameter range
