Home > Products > spring machine > us-680 High-Speed CNC Spring Coiling Machine

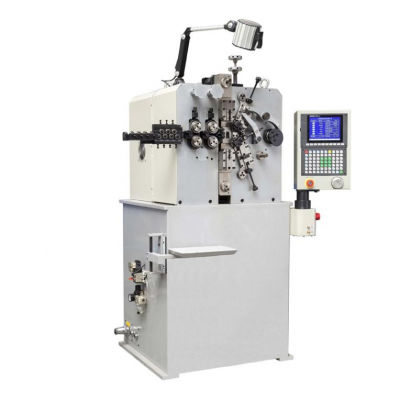

us-680 High-Speed CNC Spring Coiling Machine
≥1 Piece
- 500 Piece / Pieces per Month
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
Product Details
| Brand Name | unionspring | Place of Origin | China | |
| Model Number | us-680 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Model | US-608 | US-620 | US-640 | US-660 | US-680 |
Number of Axis | 6 axes | 6 axes | 6 axes | 6 axes | 6 axes |
Wire Diameter | ?0.1mm～?0.8mm | ?0.5mm～?2.0mm | Φ1.0mm-4.0mm | φ2.0mm-6.0mm | Φ3.0mm-8.0mm |
Feeding Roller Pairs | 1Pair | 2Pairs | 3Pairs | 3Pairs | 4Pairs |
Outside Diameter | φ25mm | Φ40mm | Φ70mm | φ100mm | φ130mm |
Feeding Speed
| 300m/min | 130m/min | 100m/min | 95m/min | 60m/min |
Feeding Servo Moter | 0.75kw | 2.7kw | 7.0kw | 15.0kw | 30.0kw |
Cutter Servo Moter | 0.4kw*2 | 0.75kw*2 | 1.8kw*2 | 4.5kw*2 | 7.0kw*2 |
OD Control Servo Motor | 0.4kw | 0.75kw | 1.8kw | 2.7kw | 5.5kw |
Pitch Servo Motor | 0.4kw | 0.75kw | 1.3kw | 2.7kw | 5.5kw |
Mandrel Up/Down Servo Motor | 0.4kw | 0.75kw | 0.75kw | 2.0kw | 4.5kw |
Dimension(L*W*H)(mm) | 1000*700*1350 | 1100*900*1600 | 1250*1200*1700 | 1800*1500*1980 | 2000*1650*2100 |
Weight | 550kg | 1100kg | 2000kg | 3800kg | 6200kg |
