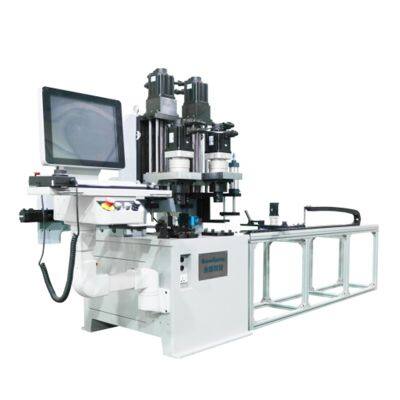

US-8F-750 Twin Square Winding Machine
≥1 Pieces
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
Product Details
| Brand Name | unionspring | Place of Origin | China | |
| Model Number | US-8F-750 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
(Model) | US-8F-750 |
(Wire diameter) | 3.0MM ≤ W ≤ 16.0MM 1.0MM ≤ T ≤ 5.0MM |
(Axis) | 7~8 |
(Wire feeding servo) | 0.4KW*2 |
Winding servo) | 2.0KW*2 |
(Forward and backward movement servo) | 0.4KW |
(Grap servo) | 0.4KW |
(Handling servo) | 1.0KW |
(LWH) | 955015001800mm3 |
(Weight) | 2500kg |
1. The machine uses rubber rollers to feed materials, which is faster for thin and thin wires, and is not easy to bend. It is suitable for large wire diameters with mold cylinders for wire feeding.
2. Double guide rails + precision helical gear transmission to ensure temperature accuracy. At the same time, the motor is interpolated and followed by the winding head. During the winding process, the motor is sent to the winding head.
3. The feeding and cutting mechanism can accurately feed the wire into the winding groove. During the winding process, the wire can be pressed tightly to prevent the wire from moving.
4. The fully automatic winding process does not require personnel to participate, and the action of picking up the wire package is automatically completed, and one person can be on duty for multiple machines.
5. Products are widely used in high frequency, new energy, network transformers and other industries.
