Home > Products > Optical Switch > MEMS 1xN Single Mode Optical Switch

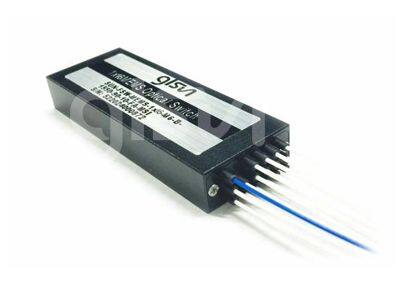

MEMS 1xN Single Mode Optical Switch

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port ShenZhen
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Glsun		Place of Origin	China
Model Number	SUN-MS-S1-1xN(≤32)-A-B-C-D-E-F-G(MS:MEMS Optical Switch; S1:Series 1)

Product Description

GLSUN's MEMS 1xN single mode (SM) optical switch is a specialized device designed to precisely direct an optical signal from a single input fiber to one of N output fibers. It utilizes Micro-Electro-Mechanical Systems (MEMS) technology to achieve this with high accuracy and speed.

Features
· Base on MEMS Technology
· Small Package
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Non-latching

Applications
· DWDM Networks
· Channel Monitor
· R&D in Laboratory
· Configurable OADM

Specifications

Parameters	Unit	SUN-MS-S1-1XN(≤32)-SM
Wavelength Range	nm	1260~1650
Test Wavelength	nm	1310/1550
Insertion Loss^1,2,3	dB	0.6(TYP) 1.0(MAX) N≤8 1.0(TYP) 1.6(MAX) N≤16 1.6(TYP) 2.0(MAX) N≤32
WDL⁴	dB	≤0.3
PDL^1,2	dB	≤0.15
TDL^1,2	dB	≤0.3
Return Loss^1,2	dB	≥45
Crosstalk^1,2,3	dB	≥50
Repeatability⁵	dB	≤±0.05
Power Supply	V	4.8~12.5
Power Consumption	mW	≤500
Durability	Cycles	≥10⁹
Switch Time	ms	≤30
Transmission Power	mW	≤500
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85
Dimension	mm	Type A: 39.1(L) x 24.7(W) x 11(H) ±0.2 Type B: 65(L) x 24.7(W) x 11(H) ±0.2
Note: 1 Within operating temperature and SOP，MM CPR＞16. 2 Excluding connectors. 3 Power off isolation same as cross-talk. 4 WDL is specified in a ±20 nm of 1310nm,at 23°C. 5 Repeatability is defined after 100 cycles.

Ordering Information

SUN-MS-S1-1xN(≤32)-A-B-C-D-E-F-G
(MS:MEMS Optical Switch; S1:Series 1)

Output Number

Fiber Type

Package Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

Interface

8:8

16:16

24:24

32:32

X:Other

SM:SM,

9/125

X:Other

A:TypeA

B:TypeB

1310:1310nm

1550:1550nm

1315:1310&1550nm

X:Other

25:250um

(TypeA)

90:900um

(TypeB)

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X:Other

FA:FC/APC

FP:FC/PC

LA:LC/APC

LP:LC/PC

SA:SC/APC

SP:SC/PC

X:Other

TTL:

TTL/UART

I2C:

I2C/UART
