Home > Products > SFP module > GLC-ZX-SM Cisco Compatible, 1000BASE-ZX SFP 1550nm 80km DOM LC SMF Fiber Optical Transceiver Module

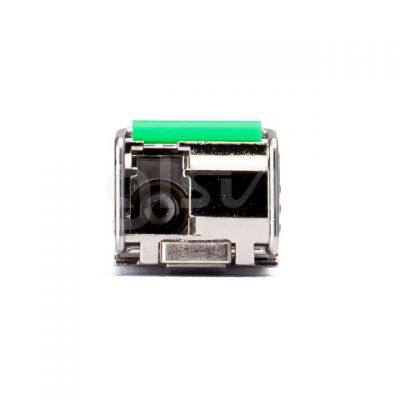

GLC-ZX-SM Cisco Compatible, 1000BASE-ZX SFP 1550nm 80km DOM LC SMF Fiber Optical Transceiver Module
Negotiable
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- ShenZhen
- T/T L/C
You May Like
-
SFP-1G-SX-31 Cisco Compatible, 1000BASE-SX SFP 1310nm 2km DOM LC MMF Fiber Optical Transceiver Module
-
SFP-1G-EX-55 Cisco Compatible, 1000BASE-EX SFP 1550nm 40km DOM LC SMF Fiber Opitcal Transceiver Module
-
GLC-EZX-SMD-100 Cisco Compatible, 1000BASE-EZX SFP 1550nm 100km DOM LC SMF Fiber Optical Transceiver Module
-
GLC-EZX-SMD-120 Cisco Compatible, 1000BASE-EZX SFP 1550nm 120km DOM LC SMF Fiber Optical Transceiver Module
-
SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 10km DOM LC MMF/SMF Fiber Optical Transceiver Module
-
SFP-10G-BX10U Cisco Compatible, 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM LC SMF Fiber Optical Transceiver Module
Product Details
| Brand Name | Glsun | Place of Origin | China | |
| Model Number | SUN-SFP-1G-ZX-T02 |
Product Description
Glsun 1000BASE-ZX SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All sfp modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Compatible | Cisco | Form Factor | SFP |
| Max Data Rate | 1.25Gbps | Wavelength | 1550nm |
| Max Cable Distance | 80km | Connector | Duplex LC |
| Transmitter Type | 1550nm DFB | Extinction Ratio | 9dB |
| Media | SMF | Power Consumption | <1.0W |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70℃ (C); -40°C to +85℃ (I) |
