Home > Products > SFP module > SFP-10G-BX80U Cisco Compatible, 10GBASE-BX80-U BiDi SFP+ 1490nm-TX/1550nm-RX 80km DOM LC SMF Fiber Optical Transceiver Module

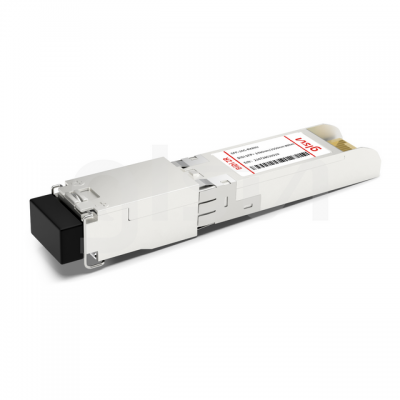

SFP-10G-BX80U Cisco Compatible, 10GBASE-BX80-U BiDi SFP+ 1490nm-TX/1550nm-RX 80km DOM LC SMF Fiber Optical Transceiver Module
USD $300 - $310
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- ShenZhen
- T/T L/C
You May Like
-
QSFP-40GE-LR4 Cisco Compatible, 40GBASE-LR4 QSFP+ 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module
-
QSFP-100G-SR4-S Cisco Compatible, 100GBASE-SR4 QSFP28 MTP/MPO MMF 850nm 100m DDM Fiber Optical Transceiver Module
-
XFP-10G-SR Cisco Compatible, 10GBASE-SR XFP 850nm 300m DOM LC MMF Fiber Optical Transceiver Module
-
XFP-10G-LR-31 Cisco Compatible, 10GBASE-LR/LW XFP 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module
-
XFP-10G-ZR100-55 Cisco Compatible, 10GBASE-ZR/ZW XFP 1550nm 100km DOM LC SMF Fiber Optical Transceiver Module
-
Cisco Compatible, DWDM-SFP10G-28.77 Optical Transceiver Module 10G DWDM SFP+ C61 1528.77nm 40km DOM LC SMF
Product Details
| Brand Name | Glsun | Place of Origin | China | |
| Model Number | SUN-SFP-10G-BX80U-T01 |
Product Description
GLsun's SFP-10G-BX80U-49/55 single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The 10g bidi sfp+ 80km transceiver module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm. The transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high performance and cost effective to supply customers with the best solutions for telecommunication.
| Compatible | Cisco | Form Factor | SFP+ |
| Max Data Rate | 11.3Gbps | Wavelength | 1490nm-TX/1550nm-RX |
| Max Cable Distance | 80km | Connector | Simplex LC |
| Transmitter Type | 1490nm EML | Extinction Ratio | 9dB |
| Media | SMF | Power Consumption | <1.5W |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
