Home > Products > SFP module > SFP-1G-SX-85 Cisco Compatible, 1000BASE-SX SFP 850nm 550m LC MMF DOM Fiber Optical Transceiver Module

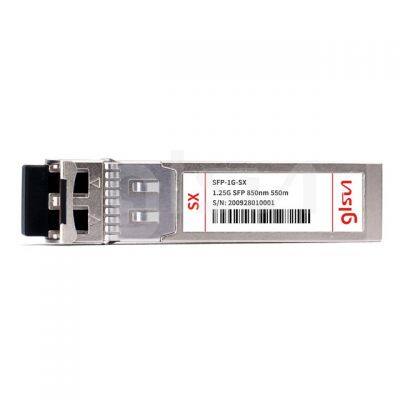

SFP-1G-SX-85 Cisco Compatible, 1000BASE-SX SFP 850nm 550m LC MMF DOM Fiber Optical Transceiver Module
- 100 Set / Sets per Month
- ShenZhen
- T/T L/C
You May Like
-
SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 20km DDM LC SMF Fiber Optical Transceiver Module
-
GLC-EX-SMD Cisco Compatible, 1000BASE-EX SFP 1310nm 40km DOM LC SMF Fiber Optical Transceiver Module
-
GLC-ZX-SM Cisco Compatible, 1000BASE-ZX SFP 1550nm 80km DOM LC SMF Fiber Optical Transceiver Module
-
SFP-1G-SX-31 Cisco Compatible, 1000BASE-SX SFP 1310nm 2km DOM LC MMF Fiber Optical Transceiver Module
-
SFP-1G-EX-55 Cisco Compatible, 1000BASE-EX SFP 1550nm 40km DOM LC SMF Fiber Opitcal Transceiver Module
-
GLC-EZX-SMD-100 Cisco Compatible, 1000BASE-EZX SFP 1550nm 100km DOM LC SMF Fiber Optical Transceiver Module
Product Details
Brand Name | Glsun | Place of Origin | China | |
Model Number | SUN-SFP-1G-SX-T01 |
Product Description
GLSUN SFP-1G-SX transceivers are high-performance, cost-effective modules supporting data rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver module consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements. This SFP module is compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Compatible | Cisco | Form Factor | SFP |
Max Data Rate | 1.25Gbps | Wavelength | 850nm |
Max Cable Distance | 550m@50/125μm, 300m@62.5/125μm MMF | Connector | Duplex LC |
Transmitter Type | VCSEL 850nm | Extinction Ratio | 9dB |
Media | MMF | Power Consumption | <0.5W |
Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70℃ (C); -40°C to +85℃ (I) |
