Home > Products > SFP module > SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 10km DOM LC MMF/SMF Fiber Optical Transceiver Module

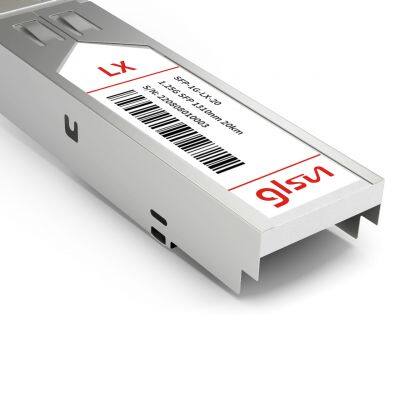

SFP-1G-LX Cisco Compatible, 1000BASE-LX/LH SFP 1310nm 10km DOM LC MMF/SMF Fiber Optical Transceiver Module
USD $5 - $8
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- ShenZhen
- T/T L/C
You May Like
-
SFP-10G-BX10U Cisco Compatible, 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DOM LC SMF Fiber Optical Transceiver Module
-
SFP-10G-BX80U Cisco Compatible, 10GBASE-BX80-U BiDi SFP+ 1490nm-TX/1550nm-RX 80km DOM LC SMF Fiber Optical Transceiver Module
-
QSFP-40GE-LR4 Cisco Compatible, 40GBASE-LR4 QSFP+ 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module
-
QSFP-100G-SR4-S Cisco Compatible, 100GBASE-SR4 QSFP28 MTP/MPO MMF 850nm 100m DDM Fiber Optical Transceiver Module
-
XFP-10G-SR Cisco Compatible, 10GBASE-SR XFP 850nm 300m DOM LC MMF Fiber Optical Transceiver Module
-
XFP-10G-LR-31 Cisco Compatible, 10GBASE-LR/LW XFP 1310nm 10km DOM LC SMF Fiber Optical Transceiver Module
Product Details
| Brand Name | Glsun | Place of Origin | China | |
| Model Number | SUN- SFP-1G-LX-T01 |
Product Description
GLsun SFP-1G-LX SFP transceivers are high-performance, cost-effective modules supporting dual data rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF and MMF. The transceiver module consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements. The sfp modules are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
| Compatible | Cisco | Form Factor | SFP |
| Max Data Rate | 1.25Gbps | Wavelength | 1310nm |
| Max Cable Distance | 10Km | Connector | Duplex LC |
| Transmitter Type | 1310nm FP | Extinction Ratio | 9dB |
| Media | SMF | Power Consumption | <0.8W |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (C); -40°C to +85°C (I) |
