High precision piezo actuator stage piezo expender nanometer resolution for fiber adjustment
You May Like
-
piezo linear motor positioner piezo stack actuator for industrial application
-
Z axis micrometer positioning piezo amplified actuator for microimaging
-
E53 Multi-Driving Mode Piezo Controller Stack Piezo Amplifier Pzt Piezo Ceramic Driver
-
E53 Multi-Driving Mode Piezo Controller Stack Piezo Amplifier Pzt Piezo Ceramic Driver
-
E00/E01Piezo Amplifier/Controller/Driver Piezo Nanoposition System Controller
-
E70 Integrated Driving Xy Axis Stage Amplifier Piezo Tilt Rotation Stage Controller Driver for Phased Array Antenna
Product Details
| Brand Name | coremorrow | Place of Origin | China | |
| Model Number | H01 |
Product Description

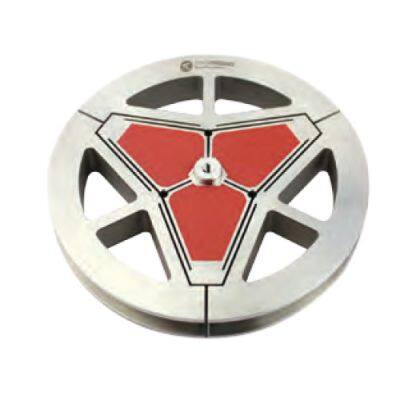

H01 piezo fiber stretcher is designed for fiber stretching applications. Its principle is to cause the hinge structure outward expansion by the action of three piezo stacks placed at 120 degrees thereby stretching the optical fiber wound in the outer diameter groove.
Technical Data
Type: H01.80
Motion: Radial expansion
Travel range(0~120V): Radial:64μm±20% Fiber/circle: 336μm±20%, Cal.
Travel range(0~150V): Radial:80μm±20% Fiber/circle: 420μm±20%, Cal.
Resolution: Radial:4nm Fiber/circle：20 nm, Cal.
Radial max. blocking force：160N
Unloaded resonant frequency:740 Hz±20%
Stiffness:3 N/μm±20%
El. Capacitance:5.4μF±20%
Material: Steel
Mass:220 g±5%
Size: ?80×14mm
You can contact us for other specifications and models.
