Piezo actuator with preload optional transfer mode closed loop SGS sensor
- T/T
You May Like
-
High precision piezo actuator stage piezo expender nanometer resolution for fiber adjustment
-
piezo linear motor positioner piezo stack actuator for industrial application
-
Z axis micrometer positioning piezo amplified actuator for microimaging
-
E53 Multi-Driving Mode Piezo Controller Stack Piezo Amplifier Pzt Piezo Ceramic Driver
-
E53 Multi-Driving Mode Piezo Controller Stack Piezo Amplifier Pzt Piezo Ceramic Driver
-
E00/E01Piezo Amplifier/Controller/Driver Piezo Nanoposition System Controller
Product Details
| Brand Name | coremorrow | Place of Origin | China | |
| Model Number | PSt150/14/x VS20 |
Product Description
Low-voltage piezo actuator is preloaded low-voltage piezo stack inside, and the outside is protected by a cylindrical stainless steel shell. The preloaded piezo actuator can withstand a certain pulling force, and is suitable for high load and high-dynamic applications.
Characteristics
Nanoscale resolution
Optional closed-loop sensor
Closed Loop and Open Loop
Preloaded piezo actuators are available in open loop (no position feedback sensor) and closed loop (integrated position feedback sensor) versions. In its open-loop mode, the resolution is infinitely high, limited only by the noise of the controller, and it also features the hysteresis and creep. In its closed-loop model, the hysteresis, creep and non-linearity are ruled out to make it linear.
Multiple Ends
Plane
Spherical
Internal thread
External thread
Technical Data

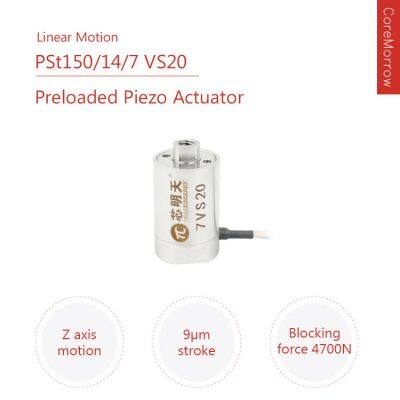

Eg:PSt150/14/7 VS20
Stroke [μm]±10%* :9
Stiffness [N/μm]±20%:350
Push/pull force [N]:4700/700
El.capacitance [μF]±20%:3.6
Resonant frequency [kHz]±20%:40
Length L [mm]±0.3:26
You can contact us for other specifications and models.
