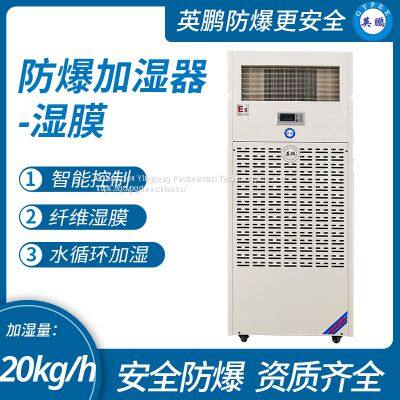

Guangzhou Yingpeng Industrial Explosion proof Humidifier

Explosion proof wet film humidifier

Product model: BAF-03SM12

Voltage: 220V,

Net weight: 85KG,

Air volume: 6000m 3/ H，

Humidification capacity: 20KG/H,

Control accuracy: ± 3% RH

Input power: 730W

Applicable area: 160~190m 2

Water replenishment method: automatic water replenishment,

Body size: 929 * 475 * 1735mm

Weight: 124KG

Principle of explosion-proof wet film humidifier:

The main part of the explosion-proof wet film series humidifier is composed of wet film, which is a hydrophilic polymer composite material that is cross-linked and overlapped in the form of corrugated plates after being bonded with resin materials. The humidification principle is to send filtered clean water through the water supply pipeline to the top sprinkler of the humidifier. Under the action of gravity, the water penetrates downwards along the surface of the wet film and is fully absorbed by the highly absorbent wet film material, forming a uniform water film. When dry air passes through the wet film material, water molecules fully absorb the heat in the air and vaporize, thereby increasing the humidity of the air and forming moist air. During the humidification process, The humidity of the air increases and the temperature decreases, but the enthalpy value of the air remains unchanged.

Explosion proof wet film humidifier product function:

1. Humidification, dust removal, and removal of harmful gases;

2. Gasification, evaporation, and humidification;

3. Anti bacterial wet film to ensure hygiene and humidification;

4. Intelligent control, LCD display and parameter settings;,

5. Safe anti overflow control and automatic alarm function;

6. Automatic switching of wind speed, achieving quasi continuous temperature regulation;

7. External humidity sensor, automatic humidity control.

Applicable environment for explosion-proof wet film humidifier:

Chemical plants, warehouses, and other places that require humidification but have flammable and explosive gases/dust or mixtures in the environment. Wet film humidifiers are more suitable for precision electronics and other places that require high air quality stability compared to explosion-proof ultrasonic humidifiers due to the absence of white mist in the air outlet.

This product has multiple models, including explosion-proof industrial humidifiers, explosion-proof ultrasonic humidifiers, and explosion-proof wet film humidifiers.

Non standard products can be customized according to customer requirements. Factory direct sales, with more favorable prices. Welcome to inquire!
