Yingpeng explosion-proof dehumidifier

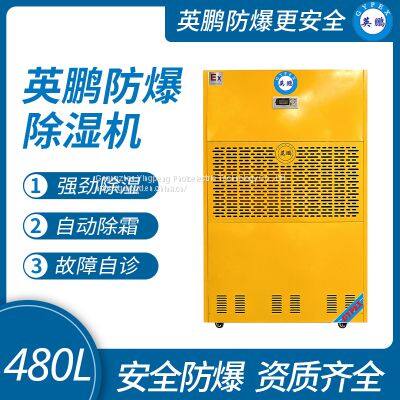

Digital display floor mounted explosion-proof dehumidifier: BCF-7480C

Power supply~380V 50Hz

Current 16A

Dehumidification capacity 480 liters/day (30 ℃ CRH80%)

Applicable temperature 5 ℃ -38 ℃

Gross weight 235KG

Packaging volume (high × wide × Depth) 2050mm × 1290mm × 570mm

Explosion proof sign: Ex db ib mb IIC T4 Gb

Fully automatic humidity control, RH30-95% adjustable at will;

1-12 hour timed shutdown setting;

Three minute delay start to protect the compressor;

Sensor fault self diagnosis function;

Digital display, microcomputer automatic defrosting, suitable for low-temperature environments.

More reliable and accurate than mechanical automatic defrosting;

Please refer to the specification sheet or user manual for specific technical parameters.

Applicable locations: factories, warehouses, large venues

(Applicable area: 650-800 square meters, with a floor height of about 2.6 meters)

The explosion-proof dehumidification series models produced by our company are processed through explosion-proof technology and widely used in hazardous areas such as national defense, scientific research, petroleum, chemical industry, processing and manufacturing, and biology, where Class IIA and IIB combustible gases, steam, and air are mixed to form explosive atmospheres. They are designed for places with moisture and dehumidification requirements and have various functions such as dehumidification, low heat, and ventilation. The series of products have passed the inspection of the explosion-proof electrical product quality supervision and testing center and obtained the explosion-proof electrical equipment explosion-proof certificate: explosion-proof dehumidifier CNEX08.2285/2286; Its appearance is beautiful, its design is reasonable, and it has the characteristics of easy installation and maintenance. The entire series of explosion-proof products use compressors, microcomputer control, and temperature and humidity switching display internally, which has the advantages of low noise, stable performance, and easy operation. Deeply loved by customers in the special needs industry, and partially entered into designated procurement in the special needs industry.

The explosion-proof label of the entire series of explosion-proof dehumidifiers is Exdmbib II BT4.

The execution standards for this series of products are as follows:

GB3836.1-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements

GB3836.2-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type "d"

GB3836.4-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 2: Intrinsically Safe "ib"

GB3836.9-2006 Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated "m"

GB3836.15-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)

JB/10538-2005 "Explosion proof dehumidifiers and air conditioners"

The explosion-proof dehumidifier can operate normally under the following environmental conditions:

a. The altitude does not exceed 2000m;

b. Applicable environment: temperature between 5 ℃ and 38 ℃, without corrosive gases;

c. There are explosive hazardous areas with Class IIA and IIB, T1 to T4 combustible gases, vapors, and air mixed together.
