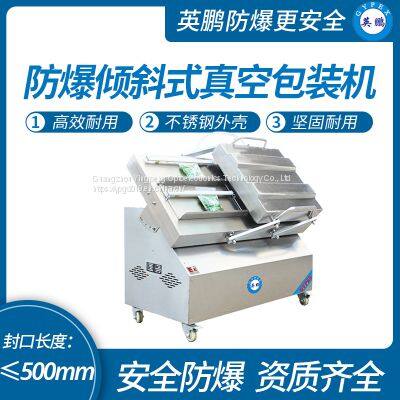

Guangzhou Yingpeng explosion-proof inclined vacuum packaging machine, EXBZ-800-500KX

1、 Technical parameters

Brand: Yingpeng GYPEX

Category: Explosion proof inclined vacuum packaging machine

Model: EXBZ-800-500KX

Power supply (V/HZ): 380/50

Vacuum pump motor power (W): 750 * 2

Heat sealing power (W): 600

Vacuum pump displacement (m 3/ h）：40

Sealing length (mm): ≤ 500

Sealing width (mm): 10

Tilt angle of heat sealing head (°): 0-45 °

Packaging speed (time/min): 1-3

Vacuum chamber size (mm): 620 × six hundred × one hundred

Overall dimensions (L * W * H) (mm): 1200 × seven hundred × nine hundred and sixty

Explosion proof sign: Ex d e ib mb II B T4 Gb

Brand: Yingpeng GYPEX

Category: Explosion proof inclined vacuum packaging machine

Model: EXBZ-800-600DKX

Power supply (V/HZ): 380/50

Vacuum pump motor power (W): 750 * 3

Heat sealing power (W): 600

Vacuum pump displacement (m 3/ h）：60

Sealing length (mm): ≤ 600

Sealing width (mm): 10

Tilt angle of heat sealing head (°): 0-45 °

Packaging speed (time/min): 1-2

Vacuum chamber size (mm): 710 × six hundred and fifty × one hundred

Overall dimensions (L * W * H) (mm): 1400 × six hundred and sixty × nine hundred and seventy

Explosion proof sign: Ex d e ib mb II B T4 Gb

2、 Product Overview

The Yingpeng explosion-proof packaging machine can be widely used for packaging, sealing, and storage of flammable and explosive materials in fields such as chemical, pharmaceutical, pharmaceutical, civil explosives, laboratory aerospace, and aviation. It can be used in environments with strong gas mixtures of Class IIA to IIB and with temperature control requirements.

Environmental conditions for product use:

1. Environmental temperature: -20 ℃~+40 ℃

2. Relative humidity: 90% (25 ℃)

3. Altitude: 1500m

4. There are slight corrosive places

5. Places with strong combustible gas mixtures in IIA and IIB temperature groups T1 to T2

3、 Product execution standards:

Explosion proof packaging machine products are only allowed to enter the market if they meet relevant national explosion-proof standards. The national standards for explosion-proof products are as follows:;

GB 3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB 3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB 3836.3-2010 Explosive Atmospheres - Part 3: Equipment Protected by Increased Safety "e"

GB 3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB 3836.9-2014 Explosive Atmospheres - Part 9: Equipment Protected by Encapsulated "m"
