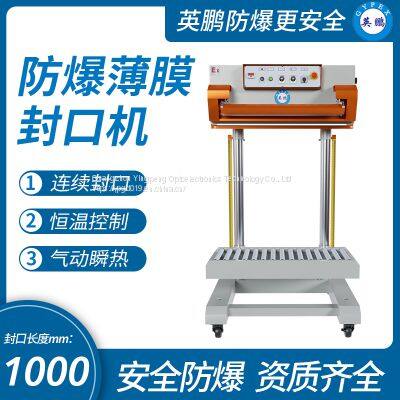

Shanghai explosion-proof pneumatic instantaneous heat film sealing machine, Yingpeng explosion-proof packaging machine

product details

Brand Yingpeng GYPEX Model EXBZ-900-1000JTQ

1、 Product parameters

Brand: Yingpeng GYPEX

Model: EXBZ-900-1000JTQ

Power supply voltage (V/Hz): 220/50

Electric heating power (W): 500

Air compressor: self provided (0-6-0.8kg)

Sealing length (mm): 1000

Sealing width (mm): 8-10

Height from sealing center to ground (mm): 1120

Film thickness (mm): ≤ 0.18

Bag height (mm): 450-750

Sealing load (kg): 50

Adjustable angle of pressure head (°): 20

External dimensions (L × W × H）(mm): 720 × five hundred and sixty × one thousand three hundred and forty

Explosion proof sign: Ex d e ib mb II B T4 Gb

2、 Product Overview

This series of sealing machines adopts electronic constant temperature control and stepless speed regulation transmission system, with automatic continuous sealing, printing product labels, and one-time completion functions, and can be used horizontally or vertically. Used for sealing and bagging single-layer films and various composite films, widely used in food, pharmaceutical, seed, chemical, light industry and other departments.

3、 Manufacturing standards for this series of equipment:

Explosion proof packaging machine products are only allowed to enter the market if they meet relevant national explosion-proof standards. The national standards for explosion-proof products are as follows:;

GB 3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB 3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB 3836.3-2010 Explosive Atmospheres - Part 3: Equipment Protected by Increased Safety "e"

GB 3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB 3836.9-2014 Explosive Atmospheres - Part 9: Equipment Protected by Encapsulated "m"
