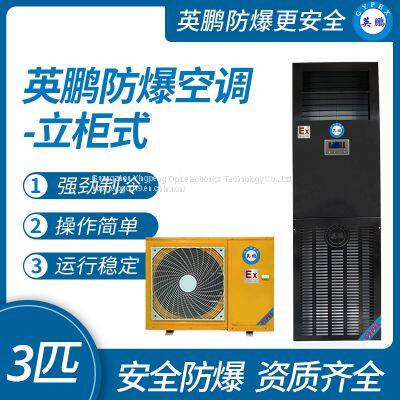

Guangzhou Yingpeng explosion-proof air conditioner - vertical cabinet unit

Brand: Yingpeng

Model: BFKG-7.5

Specification: 3 pieces

Function: Cabinet cooling/single cooling

Voltage: 220V/50HZ

Refrigeration/heating current: 5.3/5.4 (12.4/19.2) A

Refrigeration/heating power: 2.4/2.43KW

Refrigeration/heating capacity: 7.5 (9.3) KW

Circulating air volume: 1200m 3/ h

Waterproof grade: IPX4

Noise (indoor/outdoor): 45/65dB

Net weight (indoor/outdoor): 70/100KG

Internal dimensions (height, width, and depth mm): 1760 * 520 * 446.4

External dimensions (width, height, depth, mm): 880 * 800 * 360

Explosion proof grade: ExdibmbIIBT4Gb/ExdeibmbIICT4Gb

Brand Yingpeng Yingpeng Yingpeng Yingpeng Yingpeng Yingpeng

Model BFKT-5.0 BFKG-7.5 BFKG-12 BFKG-16 BLF-28

Specification: 2 pieces, 3 pieces, 5 pieces, 8 pieces, 10 pieces

Functional cabinet type heating and cooling/single freezer type heating and cooling/single freezer type heating and cooling/single freezer type heating and cooling/single freezer type heating and cooling

Voltage 220V/50Hz 220V/380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz

Refrigeration/heating current 10.7/16.5A 5.3/5.4 (12.4/19.2) A 8.5/8.8A 12/12A 18/24.8A

Refrigeration/heating power 1.6/1.8Kw 2.4/2.43kw 4.7/7.8kw 6.7/7.9kw 10.5/13.5kw

Refrigeration/heating capacity 5 (5.5) kw 7.5 (9.3) kw 12 (15.5) kw 16 (19.5) kw 28 (31) kw

Circulating air volume 1030m3/h 1200m3/h 1800m3/h 2500m3/h 4500m3/h

Waterproof grade IPX4 IPX4 IPX4 IPX4 IPX4

Noise (indoor/outdoor) 40/53dB 45/65db ≤ 40/≤ 60dB ≤ 40/≤ 60dB ≤ 40/≤ 60dB ≤ 40/≤ 60dB

Net weight (indoor/outdoor) 53/54kg 70/100kg 80/120kg 100/160kg 140/245kg

Internal dimensions (height, width, and depth mm) 1760 * 520 * 446.4 1760 * 520 * 446.4 1962 * 600 * 450 2100 * 1200 * 400 1933 * 1318 * 525

External dimensions (width, height, depth, mm) 880 * 800 * 360 880 * 800 * 360 1270 * 930 * 390 1250 * 1030 * 410 1067 * 1450 * 725

Explosion proof grade ExdibmbIIBT4Gb/ExdibmbIICT4Gb

2、 Additional features

Yingpeng explosion-proof air conditioners can be customized with the following additional functions according to customer requirements.

1. Power off memory and automatic start upon incoming call.

2. Remote control.

3. Anticorrosive function.

4. Explosion proof level: ExdibmbIIBT4Gb/ExdibmbIICT4Gb

5. Dust explosion-proof: ExtDibDmbA21IP65T130 ℃

Applicable scope:

1. This product is suitable for places with temperature control requirements in explosive environments such as petrochemical, metallurgical, pharmaceutical, textile, food, bioengineering, pharmaceutical, warehouse, aerospace engineering, etc;

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;

4. Environmental temperature: -5 ℃~+43 ℃.

Introduction to explosion-proof air conditioning:

The Yingpeng explosion-proof air conditioning series models are processed and processed with special explosion-proof technology, and are widely used in hazardous areas such as scientific research, petroleum, chemical, processing and manufacturing, and biology, where there are Class IIA and IIB flammable gases, T1-T4 groups, steam, and air mixed to form explosive atmospheres. They are special temperature regulating air conditioning equipment designed for places with temperature control requirements. All series products have passed the inspection of the explosion-proof electrical product quality supervision and testing center, Obtained explosion-proof electrical equipment explosion-proof certificate: explosion-proof air conditioner CNEX09.0375/0376; It has beautiful appearance, reasonable design, and convenient installation and maintenance. The entire series of explosion-proof products are internally controlled by compressors, microcomputers, and digital displays, which have the advantages of low noise, stable performance, and easy operation. Deeply loved by customers in the special needs industry, and partially included in the designated procurement directory of the special needs industry.

The explosion-proof label of the entire explosion-proof air conditioning series is Exdmib II BT4.

The execution standards for this series of products are as follows:

GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"

JB/10538-2005 "Explosion proof dehumidifiers and air conditioners"

Features of Yingpeng explosion-proof air conditioning (split wall mounted, split courtyard, cabinet) products:

1. Adopting internationally renowned rolling rotor compressors and low noise explosion-proof fans, it operates smoothly and reliably, saves electricity, and has a long service life.

2. By adopting an efficient multi fold radiator, the refrigerant can have more thorough contact with the air, greatly improving the cooling and heating effect of the air conditioner.

3. Fully functional, automatic judgment and operation, refrigeration, heating, dehumidification, and air supply can be freely selected, and the wind direction can be adjusted in all directions.

4. Beautiful appearance, easy operation, space saving, and easy installation.

5. There are various power sources available, including 220V/50Hz, 115V/60Hz, and 220V/60Hz.

6. Explosion proof structure design, easy installation, safe and reliable, and more guaranteed quality.

7. Explosion proof sign: Exdmib II BT4.

8. Suitable for flammable and explosive places such as scientific research, petroleum, chemical, pharmaceutical, factories, warehouses, etc.

Explosion proof air conditioning can operate normally under the following environmental conditions:

a. The altitude does not exceed 2000m;

b. Applicable environment: temperature 5 ℃~43 ℃, without corrosive gases;

c. There are explosive hazardous areas with Class IIA and IIB, T1 to T4 combustible gases, vapors, and air mixed together.

Welcome new and old customers to call for detailed inquiries, and we will offer sincere service!
