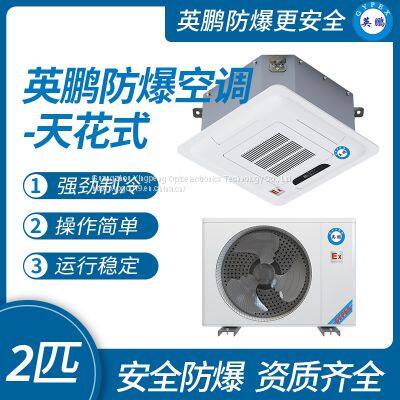

Yingpeng explosion-proof air conditioner - ceiling type

Brand: Yingpeng

Model: BFKT-5.0T

Specification: 2 pieces

Function: Ceiling cooling/single cooling

Voltage: 220V/50Hz

Refrigeration/heating current: 7.7A

Refrigeration/heating power: 1630/1550W

Refrigeration/heating capacity: 5000/5720W

Circulating air volume: 1150m3/h

Waterproof grade: IPX4

Noise (indoor/outdoor): 45/56dB

Net weight (main/surface/outdoor): 25/6.5/65kg

Panel size (width, height, depth, mm): 950 * 950 * 60

Host size (width, height, depth, mm): 840 * 840 * 190

External dimensions (width, height, depth, mm): 950 * 700 * 412

Explosion proof grade: ExdibmbIIBT4Gb/ExdibmbIICT4Gb

2、 Additional features

Yingpeng explosion-proof air conditioners can be customized with the following additional functions according to customer requirements.

1. Power off memory and automatic start upon incoming call.

2. Remote control.

3. Anticorrosive function.

4. Explosion proof level: ExdibmbIIBT4Gb/ExdibmbIICT4Gb

5. Dust explosion-proof: ExtDibDmbA21IP65T130 ℃

Product Introduction:

The Guangzhou Yingpeng explosion-proof air conditioning series models are processed and processed with special explosion-proof technology, and are widely used in hazardous areas such as scientific research, petroleum, chemical, pharmaceutical, processing and manufacturing, and biology, where there are Class IIA and IIB flammable gases, vapors, and air mixed in groups T1 to T4 that are prone to explosions. They are special temperature regulating air conditioning equipment designed for places with temperature control requirements, The series of products have passed the inspection of the explosion-proof electrical product quality supervision and testing center and obtained the explosion-proof electrical equipment explosion-proof certificate: explosion-proof air conditioning unit CNEX12.1495/1496; Its appearance is beautiful, its design is reasonable, and it has the characteristics of easy installation and maintenance. The entire series of explosion-proof products are internally equipped with famous brand compressors, microcomputer control, and digital display, which have the advantages of low noise, stable performance, and easy operation. Deeply loved by customers in the special needs industry, and partially included in the designated procurement directory of the special needs industry.

The explosion-proof label of the entire explosion-proof air conditioning series is Ex d ib mb Ⅱ BT4.

The execution standards for this series of products are as follows:

GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"

JB/10538-2005 "Explosion proof dehumidifiers and air conditioners"

Characteristics of explosion-proof air conditioning products:

1. Adopting internationally renowned rolling rotor compressors and low noise explosion-proof fans, it operates smoothly and reliably, saves electricity, and has a long service life.

2. By adopting an efficient multi fold radiator, the refrigerant can have more thorough contact with the air, greatly improving the cooling and heating effect of the air conditioner.

3. Fully functional, automatic judgment and operation, refrigeration, heating, dehumidification, and air supply can be freely selected, and the wind direction can be adjusted in all directions.

4. Beautiful appearance, easy operation, space saving, and easy installation.

5. There are various power sources available, including 220V/50Hz, 115V/60Hz, and 220V/60Hz.

6. Explosion proof structure design, easy installation, safe and reliable, and more guaranteed quality.

7. Explosion proof sign: Exdmib II BT4.

8. Suitable for flammable and explosive places such as scientific research, petroleum, chemical, pharmaceutical, factories, warehouses, etc.

Applicable scope:

1. This product is suitable for explosive environments such as petrochemical, metallurgical, textile, food, bioengineering, pharmaceutical, warehouse, aerospace engineering, and places with temperature control requirements;

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;

4. Environmental temperature: -5 ℃~+43 ℃.
