Product Description

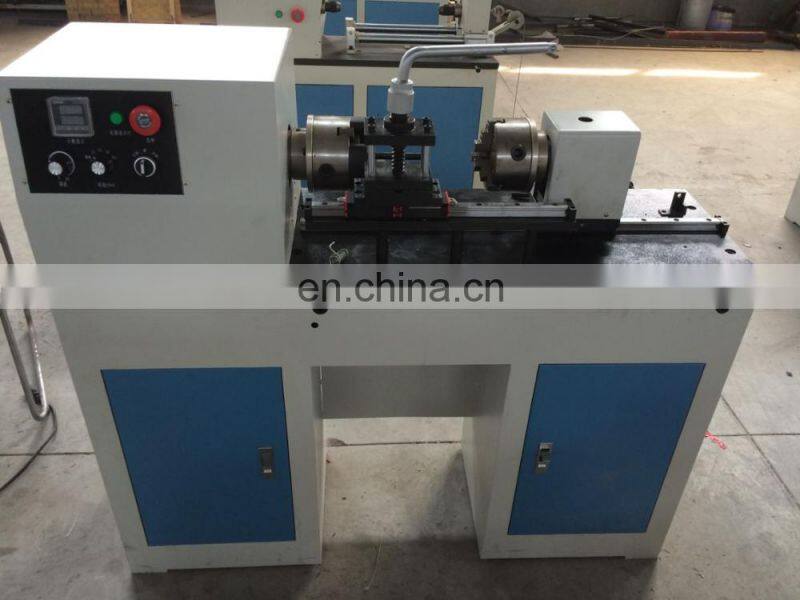

EZ-1/3 0.2-3 mm 1-10 mm Metal Wire Torsion Testing Machine
ALI: cn1510988092 SKYPE: hstbetty009 Phone/Whatsapp/Wechat:+86-15866781190
EZ-1/3 0.2-3 mm 1-10 mm Metal Wire Torsion Testing Machine
1. Application:
It is mainly used for diameter 0.2~20mm metal wire torsion testing.
The function is determine metal wire to withstand severe plastic deformation in one-way or two-way reversed ability and display of wire surface and inner defect.It is a reliable measure instrument for producing and using wire units.
2. Standard :
GB/T2611-2007 General Requirements for Testing Machines
GB/T 239-1999 Metal wire twisting test method
ISO 7800:1984 Metal wire one-way torsion test method
ISO 9649:1990 Metal wire two-way torsion test method
3. Technical parameter:
|
Model |
EZ-3 |
EZ-10 |
EZ-20 |
|
Range Of Specimen Diameter |
0.2-3 mm |
1-10 mm |
3-20 mm |
|
Length Of Clamping Wire |
0-320 mm |
50-520 mm |
|
|
Test Speed |
0-180 r/min |
0-60 r/min |
|
|
Two Chuck Coaxiality |
<0.4 mm |
||
|
Parallel Degree |
<0.2 mm |
||
|
Jaw Hardnss |
HRC55-64 |
||
|
Power Supply |
AC220V±10%,50Hz |
||
