HST Computerized Controlled Metal Wire Cable Torque Torsion Testing Machine
- T/T Credit Card
You May Like
-
HST Digital Display Type Wire Cable Rod Rope Torque Torsion Testing Machine
-
HST Manual Material 500 N/m Optical Fiber Cable Torque Torsion Spring Torsion Testing Machine
-
HST Iso78009649 3000 N/m Steel Wire Rod Automatic Spring Torsion Torque Testing Machine
-
HST Brand New Torque Iso78009649 Steel Wire Rod Manual Torsion Testing Machine
-
HST Plastic Spring Tester Manual Computer Control Torsion Testing Machine
-
HST New Design High Quality Material Torsion Spring Torque Testing Machine
Product Description

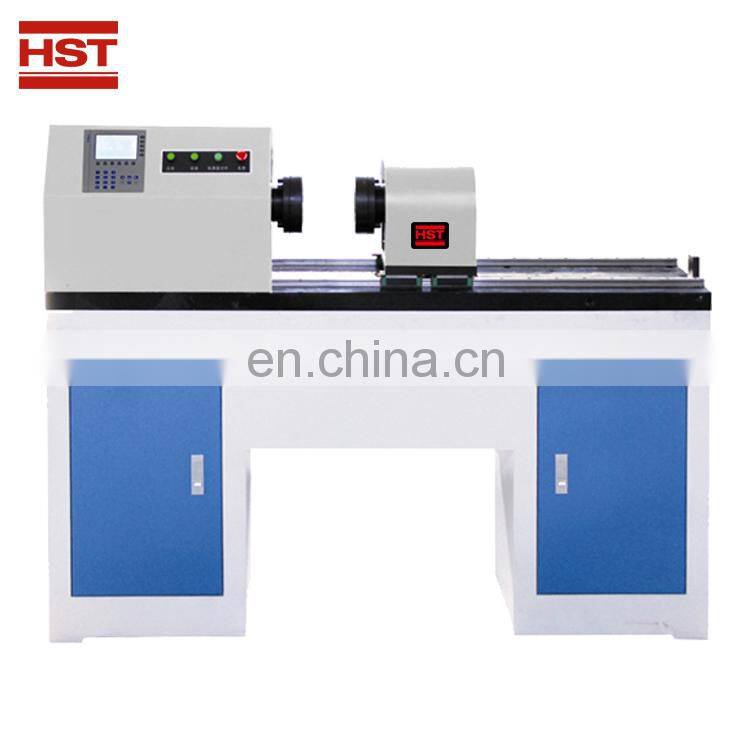

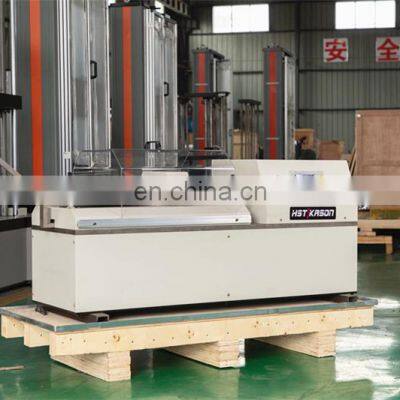

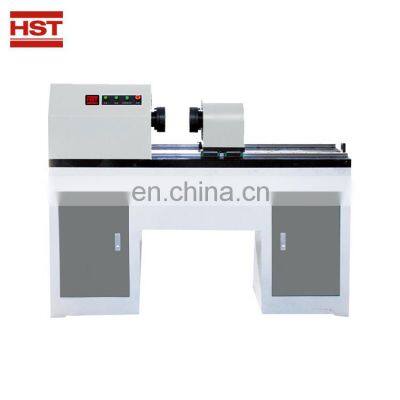

HST computerized controlled metal wire cable torque torsion testing machine
| Production Description |
1.Application
Digital display material torsion testing machine is designed for conducting torsion and twist tests on various metal wires, tubes and steel materials. Torque measurement is by torque transducer while angle of twist is measured by photoelectrical coder.Torque range can be adjusted and torque is applied to specimen by servo motor and cycloid speed reducer.
This tester is mainly applied in the research department, all kinds of institutions and industrial and mining enterprises material experiment of various materials used for measuring the mechanical properties by torsion.
2.Technical Parameter:
|
Model |
NDS-500 |
NDS-1000 |
NDS-2000 |
NDS-3000 |
NDS-5000 |
|
Max Dynamic Test Torque |
500 N/M |
1000 N/M |
2000 N/M |
3000 N/M |
5000 N/M |
|
Test Level |
1 Class |
||||
|
Test Range |
2%-100%FS |
||||
|
Torque Force Value Relative Error |
≤±1% |
||||
|
Torque Speed Relative Error |
≤±1% |
||||
|
Force Resolution |
1/50000 |
||||
|
Torque Angle Measuring Relative Errors |
≤±1% |
||||
|
Torque Angle Resolution(°) |
0.05-999.9°/min |
||||
|
Two Chuck Maximum Distance |
300mm |
550mm |
600mm |
650mm |
|
|
Dimension (mm) |
1200*390*1169 |
1420*390*1169 |
1470*390*1200 |
1924*690*1512 |
|
|
Weight (KG) |
340 |
580 |
860 |
2150 |
|
|
Power Supply |
0.5kW/ AC220V±10% |
1kW/ AC220V±10% |
1.5kW/ AC220V±10% |
5kW/ AC220V±10% |
|
