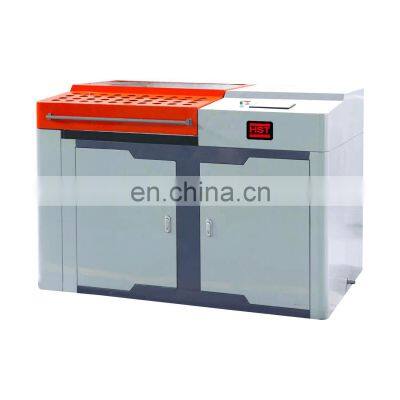

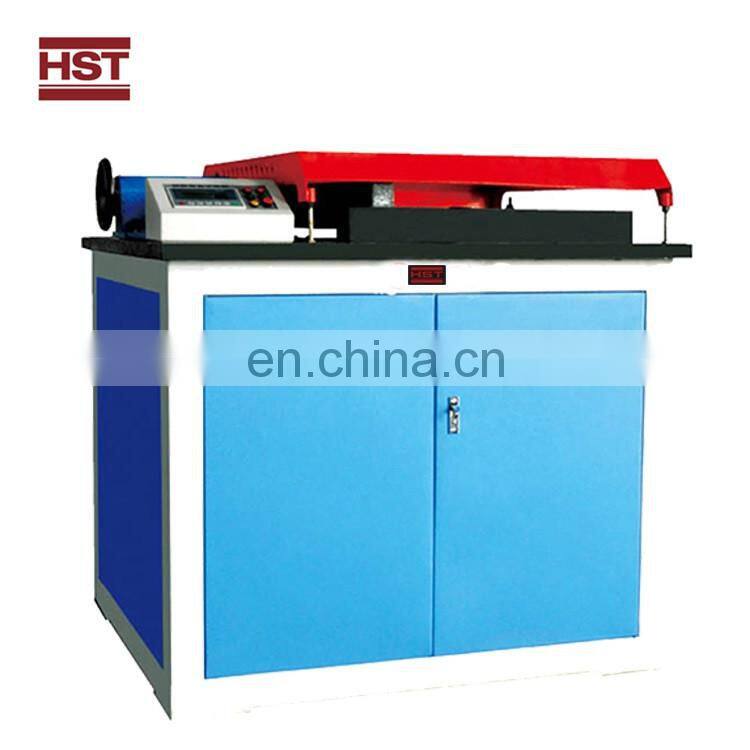

GW-40B GW-50B Electric Power Driven Steel Deformed Rebar Bend And Rebend Testing Machine

Product Description

1.Application:

GW-40B / GW-50B Steel Bar Bending Testing Machine is special equipment to do bending test

for steel bar and reinforced steel bar.

It can do bending test in both directions according to standards requirement.

It conforms to standards ISO 7438:1985, ISO 8491:1998(E), ISO 6935-2-1991 and DIN, JIS and

ASTM (ASTM A615-89,ASTM A615M-89).

2.Technical Specifications:

Model	GW-40B	GW-50B
Bending Diameter Of Steel Bar	6~40 mm	6~50 mm
Forward Bending Angle	0°~180° (the angle can be set freely in the range)
Reverse Bending Angle	0°~25° (the angle can be set freely in the range)
Roating Speed Of Working Table	<2 r/min, <12°/S
Distance Between The Center Of Two Rolls	165 mm	260 mm
Diameter Of The Working Table	580 mm	950 mm
Standard Bending Accessory	HRB-335 6-40 Or Other Configuration Option	HRB-335 6-50 Or Other Configuration Option
Motor Power	1.5 KW	3 KW
Weight	1500 KG	2500 KG
Supply Power	380V, 50Hz

3.Main Configuration:

3.1	Measurement and control system	1 SET
3.2	Three-phase asynchronous brake motor	1 SET
3.3	Photoelectric angle measuring device	1 SET
3.4	Bending tester main frame	1 SET
3.5	High performance reduction system	1 SET
3.6	Compliance with HRB335 grades of bending devices	1 SET
