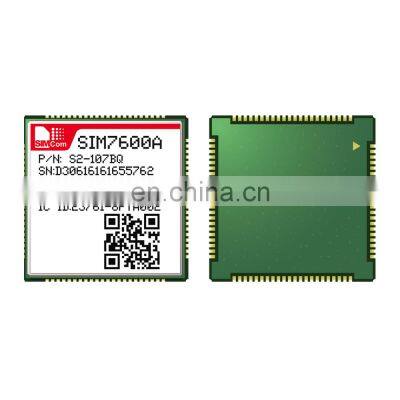

4G LTE Wireless Module SIM7600A

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

LTE Cat-1 Module

• SIM7600X is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCC type which supports LTE CAT1up to 10Mbps for downlink and 5Mbps for uplink data transfer.

• Designed in the compact and unified form factor, SIM7600X is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600X-H module, which allows customer to design their application once for different technology and benefit from great development time-saving.

Variant for EMEA/Korea/Thailand
SIM7600E:
•LTE-TDD: B38/B40/B41
•LTE-FDD: B1/B3/B5/B7/B8/B20
•UMTS/HSPA+: B1/B5/B8
•GSM/GPRS/EDGE: B3/B8

Variant for North America
SIM7600A:
•LTE-FDD: B2/B4/B12
•UMTS/HSPA+: B2/B5

Variant for Australia/New Zealand/South America
SIM7600SA:
•LTE-TDD: B40/B66
•LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
•UMTS/HSPA+: B1/B2/B5/B8
•GSM/GPRS/EDGE: 850/900/1800/1900MHz

General features
•LCC Package
•Control Via AT Commands
•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
•Operation temperature: -40℃to +85℃
•Dimension: 30*30*2.9mm
•Weight: 5.7g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11

Specifications for Data transfer
•LTE CAT1
-Uplink up to 5Mbps
-Downlink up to 10Mbps
•HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42 Mbps
•UMTS
-Uplink/Downlink up to 384Kbps
•EDGE
-Uplink/Downlink up to 236.8Kbps
•GPRS
-Uplink/Downlink up to 85.6Kbps

Other features
•USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA

Interfaces
•USB2.0 with High speed up to 480Mbps
•UART
•GPIO
•Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
•(U)SIM card (1.8V/3.0V)
•Digital Audio through PCM
•MMC/SD
•ADC
•GNSS: GPS/GLONASS/Beidou/Galileo*

Approvals
•RoHS Compliant
•CE(SIM7600E/SIM7600SA* )
•FCC/PTCRB/AT&T* (SIM7600A)
•ACMA* (SIM7600SA)
*Under Development/Testing
