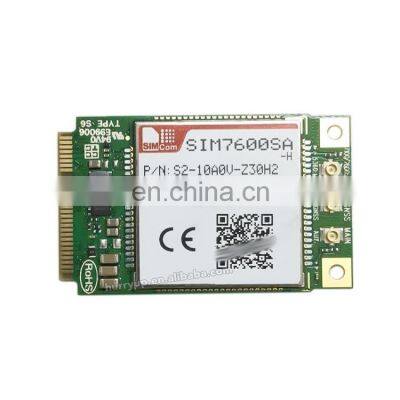

SIMCOM SIM7600SA 4G LTE Module SIM7600SA-H
Negotiable
1 (Min.Order)
- T/T Credit Card
You May Like
-
SIMCOM SIM7600E-H LTE Module, 4G Module Cat.4 GNSS Module
-
SIMCOM SIM7600V-H Mini PCie 4G LTE Module SIM7600V
-
SIMCOM SIM7600JC-H 4G LTE Cat.4 Module SIM7600JC
-
SIM7600NA-H Multi-Band LTE-FDD Module SMT Type Supports LTE CAT4 up to 150Mbps Data Transfer SIM7600
-
SIMCOM SIM7600E-H Communication Module, SIM7600 LTE Module
-
EC20 EC25 Development Board 4G Module Adapter Board Mini PCIe to USB
Product Description
Description
SIM7600X-H-PCIE
LTE CAT.4
The SIM7600-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the SIM7600-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
● Mini-PCIE interface with strong compatibility
● Suitable for LTE, UMTS and GSM networks with global coverage
● Abundant software functions: FOTA, LBS, TLS, VoLTE
● Multi-constellation GNSS receiver support
● AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules
Product Details
Product | SIM7600A-H | SIM7600V-H | SIM7600SA-H | SIM7600JC-H | SIM7600E-H | SIM7600NA-H | SIM7600G-H | |||||||
Form Factor | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | |||||||
Dimensions(mm) | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | 50.8*31*5.35 | |||||||
Frequency Bands | ||||||||||||||
LTE-FDD | B2/B4/B12 | B2/B4/B5/B13 | B1/B2/B3/B4/B5/ B7/B8/B20/B28/B66 | B1/B3/B8/B18/B19/B26 | B1/B3/B5/B7/B8/B20 | B2/B4/B5/B12/B13/ B14/B25/ B26/B66/B71 | B1/B2/B3/B4/B5/ B7/B8/B12/B13/ B18/B19/B20/B25/ B26/B28/B66 | |||||||
LTE-TDD | B40 | B38/B40/B41 | B41 | B34/B38/B39/ B40/B41 | ||||||||||
WCDMA | B2/B5 | B1/B2/B5/B8 | 1/B5/B8 | B1/B2/B4/B5/ B6/B8/B19 | ||||||||||
GSM | 850/900/1800/1900MHz | 900/1800MHz | 850/900/1800/1900MHz | |||||||||||
GNSS | o | o | o | o | o | o | o | |||||||
Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |||||||
Electrical Features | ||||||||||||||
Supply Voltage(V) | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | |||||||
Power Consumption(mA) | ||||||||||||||
LTE | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | |||||||
WCDMA, DRX=9 | 3.3 | 3.3 | 3.3 | 3.3 | ||||||||||
GSM,BS_PA_MFRMS=2 | 2.8 | 2.8 | 2.8 | |||||||||||
Data Transfer | ||||||||||||||
LTE(Mbps) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | 150(DL)/50(UL) | |||||||
HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | ||||||||||
WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | ||||||||||
GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |||||||||||
Software Features | ||||||||||||||
Protocol | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/ HTTP/ HTTPS/DNS | |||||||
TLS | ● | ● | ● | ● | ● | ● | ● | |||||||
File System | ● | ● | ● | ● | ● | ● | ● | |||||||
Audio Record/Play | o | o | o | o | o | o | o | |||||||
TTS | o | o | o | o | o | o | o | |||||||
DTMF | o | o | o | o | o | o | o | |||||||
LBS | ● | ● | ● | ● | ● | ● | ● | |||||||
FOTA | ● | ● | ● | ● | ● | ● | ● | |||||||
Jamming Detection | ● | ● | ● | ● | ● | ● | ● | |||||||
Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | |||||||
USB Driver | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | Microsoft Windows 7/8/10 Linux/Android | |||||||
WWAN (RNDIS) | ● | ● | ● | ● | ● | ● | ● | |||||||
ECM | ● | ● | ● | ● | ● | ● | ● | |||||||
MBIM | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | |||||||
NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | |||||||
Open Linux | o | o | o | o | o | o | o | |||||||
Firmware Upgrade | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | USB/FOTA | |||||||
Interfaces | ||||||||||||||
SIM Card | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | |||||||
UART | ● | ● | ● | ● | ● | ● | ● | |||||||
USB | ● | ● | ● | ● | ● | ● | ● | |||||||
PCM | o | o | o | o | o | o | o | |||||||
Analog Audio | o | o | o | o | o | o | o | |||||||
Embedded SIM card socket | o | o | o | o | o | o | o | |||||||
Diversity Receiver | ● | ● | ● | ● | ● | ● | ● | |||||||
Certification | ||||||||||||||
Regulatory | FCC/PTCRB/IC/ RoHS/ REACH | FCC/GCF/ RoHS/REACH | CE-RED/ACMA/FCC/NCC/ RoHS/REACH/Anatel | Telec/JATE/ RoHS/REACH | CE-RED/RoHS/ REACH/ IMDA/GCF | FCC*/IC*/PTCRB*/ GCF*/ RoHS*/REACH* | CE-RED/FCC/IC/RCM/ RoHS*/ REACH* | |||||||
Carrier | AT&T | Verizon | Docomo/Softbank | Deutsche Telekom /Vodafone | AT&T*/Verizon*/ Sprint*/T-mobile* | |||||||||
●: support o: optional * : on going | ||||||||||||||
