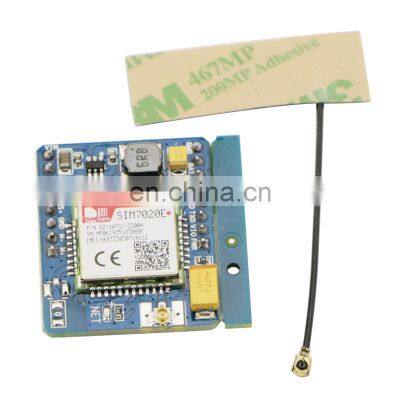

SIMCOM SIM7020 SIM7020E Development Board LTE NB IoT Module

FOB Price

Negotiable

1 (Min.Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

SIMCOM SIM7020E Module • The SIM7020X is Multi-Band NB-IoT module solution in a SMT type.

• It has strong extension capability with rich interfaces including UART, GPIO etc. The module provides much flexibility and ease of integration for customer's application.

• The package of SIM7020 is compatible with SIM800C. This also minimizes the investments of customers, and enables a short time-to-market.

• It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc.. Key Benefits ● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7020 can extend battery life to 10 years; ● SIM7020 provides deeper coverage enhancement compared to GSM; ● The package and AT commands of SIM7020 mostly are compatible with SIM800C. General features • SIM7020C: B1/B3/B5/B8 • SIM7020E: B1/B3/B5/B8/B20/B28 • Control Via AT Commands • Supply voltage range: 2.1V-3.6V • Operation temperature: -40°C to +85°C • Dimensions: 17.6 X 15.7 X 2.3mm • Weight: 1.3g±0.2g Data • Uplink: 62.5Kbps SMS • Downlink:26.15Kbps • Text and PDU mode Consumption • PSM: 5 uA * In development

Other Features • Firmware update via UART • TCP/UDP • LWM2M/COAP* • MQTT • FTP/HTTP/HTTPS*/SSL*/DTLS* • FOTA * • PSM/eDRX Interfaces • UART • SIM card (1.8V/3V) GPIO • ADC • Netlight • PSM_EINT • Reset • Powerkey Certifications(plan) • CCC / TA / CTA (SIM7020C) • CE/GCF (SIM7020E) • RoHS / REACH

Why Choose Us

FAQ

Q1. What is the minimum order quantity for your products? A1. Minimum order quantity starts from ONE piece. Q2. What's the quality of your products? A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products. Q3. Is this product free of shipping or free samples? A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
