SIMCOM Wireless SIM7500E 4G LTE Module, SIM7500A SIM7500SA SIM7500 MPCIe Module
Negotiable
1 (Min.Order)
- T/T Credit Card
You May Like
-
4G LTE Wireless Module SIM7600A
-
New and Original SIMCOM FDD SIM7600CE 4G LTE GSM module with good price
-
Lower cost SIMCOM 4G Cat1 SIM7600E Multi-Band LTE-TDD/LTE-FDD/HSPA+and GSM/GPRS/EDGE module with SMD type
-
SIMCOM SIM7600G IoT 4G LTE Chip for Global Network, SIM7600 Wireless NB-IoT Chip with 2G GSM GPRS Fallback
-
Original SIMCOM GSM/GPRS GPS Module 4G LTE GSM Module SIM7600CE-T SIM7600CE
-
SIM7600G-PCIE complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module with PCIE adapter board
Product Description
Description

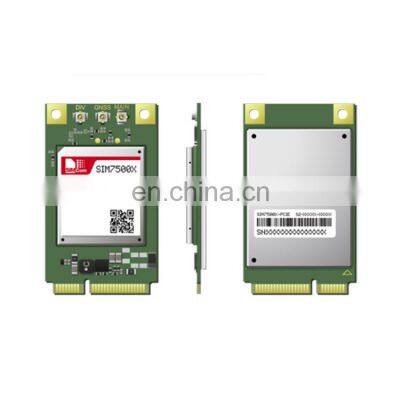

SIM7500-PCIE Series
The SIM7500-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
The SIM7500-PCIE series adopts mini PCIE form factor and consists of a SIM7500 series module and a mini PCIE adapter board. It is easy for customers to integrate.
The SIM7500-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7600/SIM7600-H series modules. Meanwhile the SIM7500-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages
• Mini-PCIE interface with strong compatibility
• Suitable for LTE, UMTS and GSM networks with global coverage
• Abundant software functions: FOTA, LBS, TLS, VoLTE
• Multi-constellation GNSS receiver support
• AT commands of the SIM7500-PCIE series are compatible with the SIM7600/SIM7600-H series modules
SIM7500A | SIM7500AD | SIM7500V | SIM7500SA | SIM7500E | SIM7500JC | SIM7500JE | ||||||||
Form Factor | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | Mini PCIE | |||||||
Dimensions(mm) | 50.8*30*5.35 | 50.8*30*5.35 | 50.8*30*5.35 | 50.8*30*5.35 | 50.8*30*5.35 | 50.8*30*5.35 | 50.8*30*5.35 | |||||||
Frequency Bands | ||||||||||||||
LTE-FDD | B2/B4/B12 | B2/B4/B12 | B4/B13 | B1/B3/B5/B7/B8/B28 | B1/B3/B7/B8/B20 | B1/B18/B19/B26 | B1/B3/B8 | |||||||
WCDMA | B2/B5 | B2/B5 | B1/B5 | B1/B8 | ||||||||||
900/1800MHz | ||||||||||||||
GNSS | o | o | o | o | o | o | o | |||||||
Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |||||||
Electrical Features | ||||||||||||||
Supply Voltage(V) | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.0~ 3.6 | 3.4~ 4.2 | 3.4~ 4.2 | 3.4~ 4.2 | |||||||
Power Consumption(mA) | ||||||||||||||
LTE | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |||||||
WCDMA,DRX=9 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | |||||||||
GSM, BS_PA_ MFRMS=2 | 2.8 | |||||||||||||
Data Transfer | ||||||||||||||
LTE(Mbps) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | |||||||
HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | ||||||||||
WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | 384(DL)/384(UL) | ||||||||||
GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | |||||||||||||
Software Features | ||||||||||||||
Protocol | TCP/IP/IPV4/IPV6/ Multi-PDP/ FTP/FTPS/HTTP /HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/ FTP/FTPS/HTTP /HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/ FTP/FTPS /HTTP/HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/ FTP/FTPS /HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/ FTP/FTPS /HTTP/ HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/ FTP/FTPS /HTTP/HTTPS/DNS | TCP/IP/IPV4/IPV6/ Multi-PDP/ FTP/FTPS/HTTP /HTTPS/DNS | |||||||
TLS | ● | ● | ● | ● | ● | ● | ● | |||||||
File System | ● | ● | ● | ● | ● | ● | ● | |||||||
Audio Record/Play | o | o | o | o | o | o | ||||||||
TTS | o | o | o | o | o | o | ||||||||
DTMF | o | o | o | o | o | o | ||||||||
LBS | ● | ● | ● | ● | ● | ● | ● | |||||||
FOTA | ● | ● | ● | ● | ● | ● | ● | |||||||
Jamming Detection | ● | ● | ● | ● | ● | ● | ● | |||||||
Android RIL | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | Android 5.0/6.0/ 7.0/8.0/9.0 | |||||||
USB Driver | Microsoft Windows 7/8/10Linux/ Android | Microsoft Windows 7/8/10Linux /Android | Microsoft Windows 7/8/10Linux/ Android | Microsoft Windows 7/8/10Linux/ Android | Microsoft Windows 7/8/10Linux/ Android | Microsoft Windows 7/8/10Linux/ Android | Microsoft Windows 7/8/10Linux/ Android | |||||||
WWAN (RNDIS) | ● | ● | ● | ● | ● | ● | ● | |||||||
ECM | ● | ● | ● | ● | ● | ● | ● | |||||||
MBIM | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | Win8/Win10 | |||||||
NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | |||||||
Firmware Upgrade | USB/FOTA | USB/FOTA | USB/FOTA | USB | USB/FOTA | USB/FOTA | USB/FOTA | |||||||
Interfaces | ||||||||||||||
SIM Card | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | 1.8V/3.0V | |||||||
UART | ● | ● | ● | ● | ● | ● | ● | |||||||
USB | ● | ● | ● | ● | ● | ● | ● | |||||||
PCM | o | o | o | o | o | o | ||||||||
Analog Audio | o | o | o | o | o | o | ||||||||
Embedded SIM card socket | o | o | o | o | o | o | o | |||||||
I2C | ● | ● | ● | ● | ● | ● | ● | |||||||
Diversity Receiver | ● | ● | ● | ● | ● | ● | ● | |||||||
Certification | ||||||||||||||
Regulatory | FCC/IC/PTCRB /RoHS/REACH | FCC/PTCRB /RoHS/REACH | FCC/GCF/RoHS/REACH | CE-RED/ACMA/NCC /RoHS/REACH | CE-RED/ACMA /NCC/RoHS/REACH | Telec/JATE /RoHS/REACH | Telec/JATE /RoHS/REACH | |||||||
Carrier | AT&T/Rogers | T-Mobile | Verizon | Deutsche Telekom | Softbank | |||||||||
●: support o: optional * : on going | ||||||||||||||
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
