KB050CP0 KB Series Type C Thin Section Bearings (5x5.625x0.3125 inch) KB Series Constant section KB050CP0

KB050CP0 KB Series Type C Thin Section Bearings (5x5.625x0.3125 inch) KB Series Constant section KB050CP0

KB050CP0 ultra thin section radial contact deep groove bearings 127 x 142.875 x 7.938 mm, Thin Walled Bearing KB060CP0 With Cross Section 5/16 x 5/16 inch, id: 5 inch, OD:5.625 inch, Size: 5 inch x 5.625 inch x 0.3125 inch. KB050CP0 Radial contact ball bearing belongs to KB SERIES of thin section ball bearings, the KB SERIES include KBCP0, KBXP0 and KBAR0,which represented : Type-C : Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon ball or steel ball as requested. The bore size of KB SERIES are ranged from 2 inches to 20 inches and the outer diameters are arranged from 2.625 inches to 20.625 inches, while the Cross Section is constant, that is 0.3125 inch.

Parameters:

Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Open

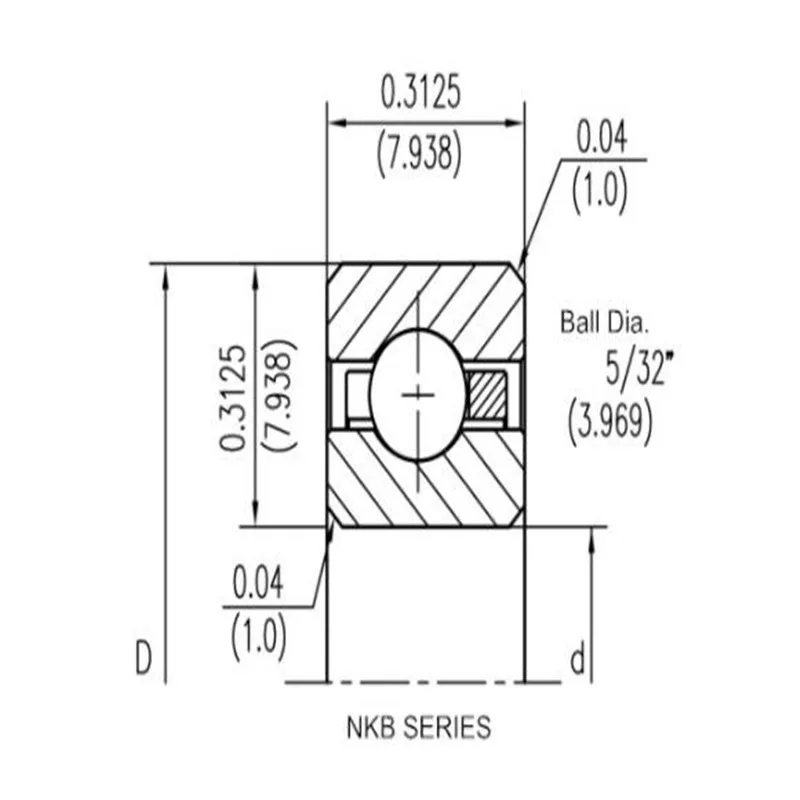

Cross Section: 5/16″ x 5/16″
Part Number: KB050CP0
For Shaft Diameter 5.000" (127 mm)
Bore Dia (d) 5.000"(127 mm)
For Housing ID 6.625"(142.875mm)
Outer Dia (D) 5.625"(142.875mm)
Width (B) 0.3125"(7.938mm)
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 ℃
ABEC Rating ABEC-1
Weight (kgs) 0.172

About Our Stock

For  those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

NERT New Customer Bearings

Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested  in the customized design, please feel free to leave a message or contact us directly. These bearings include: Customized bearing for UAV , driving ring, integral thin section rack and hybird rolling media phosphating thin section bearing.

FAQ:

Q: Are you trading company or manufacturer ?
A: We are manufacturer. Our registered name :Luoyang BOBI Precision Bearing Co.,Ltd.

Q: How long is your delivery time?
A: Generally it is 3-7 days after full payment if the goods are in stock. or it is 15-35 days, if the goods are not in stock, based on order quantities.

Q: What is your terms of payment ?
A: We accept T/T in advance , L/C .We'll keep you be informed by e-mail for the production and  the photos of the products and packages shall be send to you by e-mail before you pay the balance.

Q: What's your shipment method?
A: We ship by Express FedEX, UPS, DHL, EMS and by air or sea for large batches.

Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q:  Is certified according to the latest standards?
A: We have certified by ISO 9001:2015

Q: How do you keep your customer satisfied and willing to set up long terms of business with your company ?
A1:We keep good quality and competitive price to ensure our customers to be benefit ;
A2: We respect every customer  and  serve them as a friend no matter where they come from.

Applications:

Our  BOBI products are widely used in the following fields:
Medical Equipment,  Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
