JU055CP0 Inch Size Thin Section Sealed Bearings JU Series Type -C 12.7 Inch Cross Section 5.5*6.25*12.7in/139.7*158.75*12.7mm

Sealed Thin-Section Bearings (deep groove ball structure) Type C can provide low torque and allow significant weight and space reduction. The bearing has been widely used on radar, armaments and precision instruments, etc. In general, the bearing is double sealed. However, it can also be sealed on one side according to service environment, the sealing material is nitrile rubber.

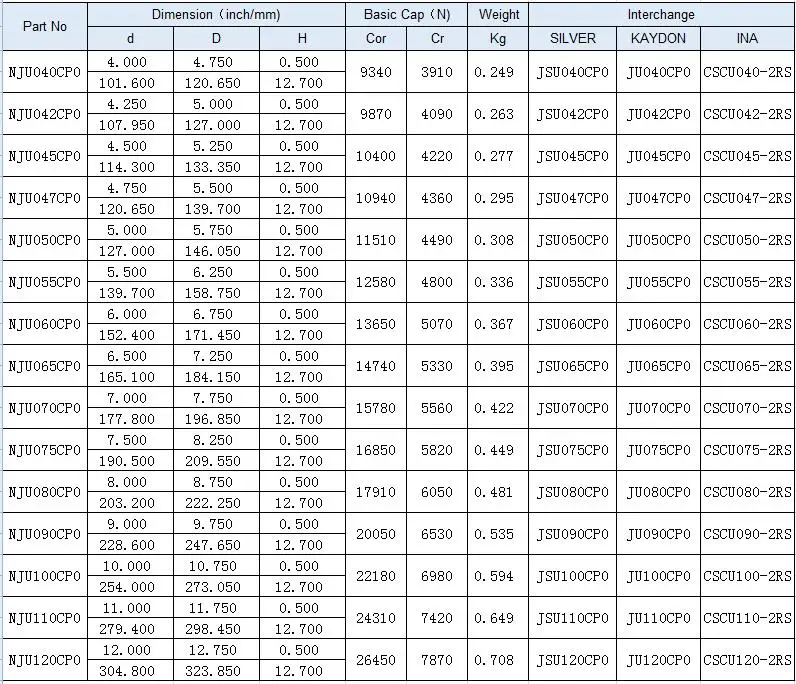

JU055CP0 Thin section radial contact sealed ball bearing belongs to JB SERIES of thin section sealed ball bearings, the JUSERIES include JUCP0 and JUXP0,which represented : Type-C : Deep Groove bearing and Type-X: Four Point Contact bearing  the rolling body of these bearings is a ball, which can be nylon ball or steel ball as requested. The Cross Section is constant, that is 0.5 inch (12.7mm). The ID of JU055CP0 is 5.5.0 Inch (139.7 mm).

Parameters:

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed

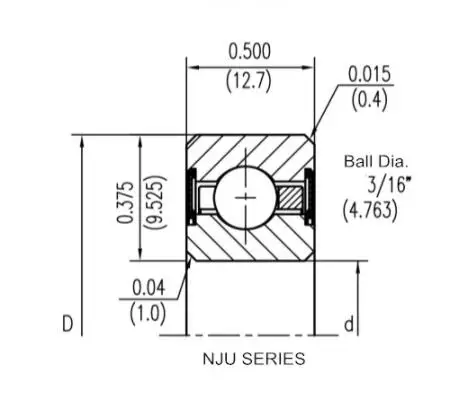

Cross Section 1/2″ x 3/8″(12.7x12.7mm)
Part Number JU055CP0(NJU055CPO)
Bore Dia (d) 5.500"(139.7mm)
Bore Dia Tolerance -0.0010"– 0"
Outer Dia (D) 6.250"(158.75)
Outer Dia Tolerance -0.0010"– 0"
Width (B) 0.5"
Width Tolerance +.000 –.005"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (lbs) 1274
Static radial (lbs) 2830
Lubrication Lubricated
Temperature Range -20° to 180 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
Weight (lbs) 0.740

About Our Stock

For  those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

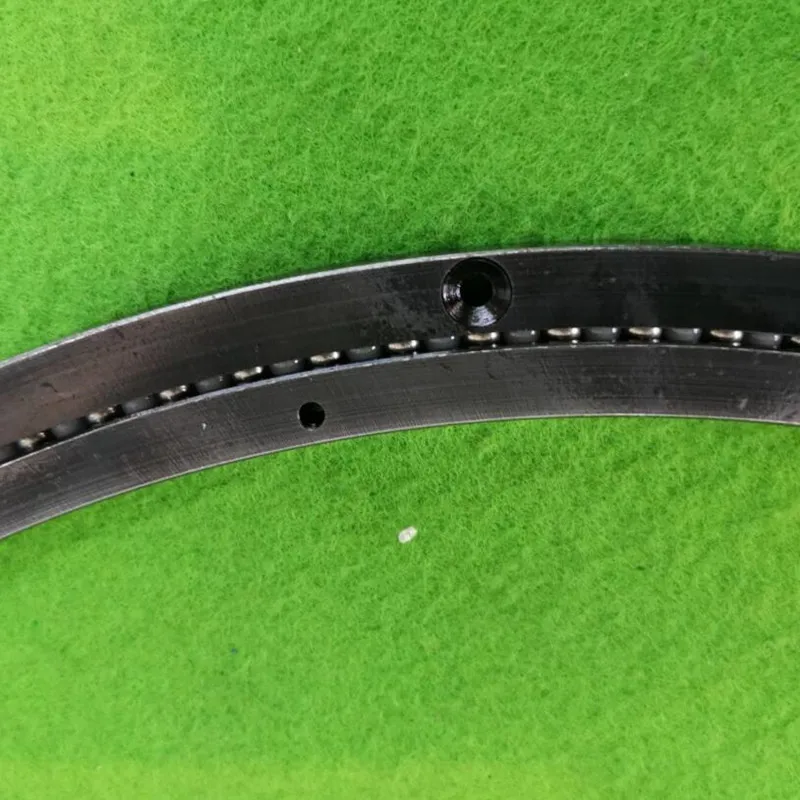

Customized Bearing Show

Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested  in the customized design, please feel free to leave a message or contact us directly.
