KB042CP0 Inch Size NERT Thin-section Bearings (4.25x4.875x0.3125 In)(107.950x123.825x7.938 Mm)KB042CP0

KB042CP0 Inch Size NERT Thin-section Bearings (4.25x4.875x0.3125 In)(107.950x123.825x7.938 Mm) Kaydon Thin Bearing KB042CP0

KB042CP0 Inch Size Reail-silm Thin-section Bearings (4.25x4.875x0.3125 In)(107.950x123.825x7.938 Mm) Kaydon Thin Bearing KB042CP0
KB042CP0 ultra thin section radial contact deep groove bearings 107.95 x 123.825 x 7.938 mm, Thin Walled Bearing KB042CP0 With Cross Section 5/16 x 5/16 inch, id: 4.25 inch, OD:4.875 inch, Size: 4.25 inch x 4.875 inch x 0.3125 inch. KB042CP0 Radial contact ball bearing belongs to KB SERIES of thin section ball bearings, the KB SERIES include KBCP0, KBXP0 and KBAR0,which represented : Type-C : Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon balls or steel balls as requested. The bore size of KB SERIES are ranged from 2 inches(50.8mm) to 20 inches(508mm) and the outer diameters are arranged from 2.625 inches(66.675mm) to 20.625 inches (523.875mm), while the Cross Section is constant, that is 0.3125 inch (7.938mm).

Parameters:

Bearing Type: Ball
For Load Direction: Radial Contact
Construction: Single Row
Seal Type: Open
Cross Section: 5/16 x 5/16 inch
Part Number: KC042CP0
For Shaft Diameter 4.25 inch (107.95 mm)
Bore Dia (d) 4.25 inch (107.95 mm)
For Housing ID 4.875 inch(123.825mm)
Outer Dia (D)4.875 (123.825mm)
Width (B) 0.3125 inch(7.938 mm)
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 ℃
ABEC Rating ABEC-1
Net Weight (kgs) 0.147

About Our Stock

For  those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

Applications:

Our  BOBI products are widely used in the following fields:
Medical Equipment,  Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.

NERT New Customer Bearings

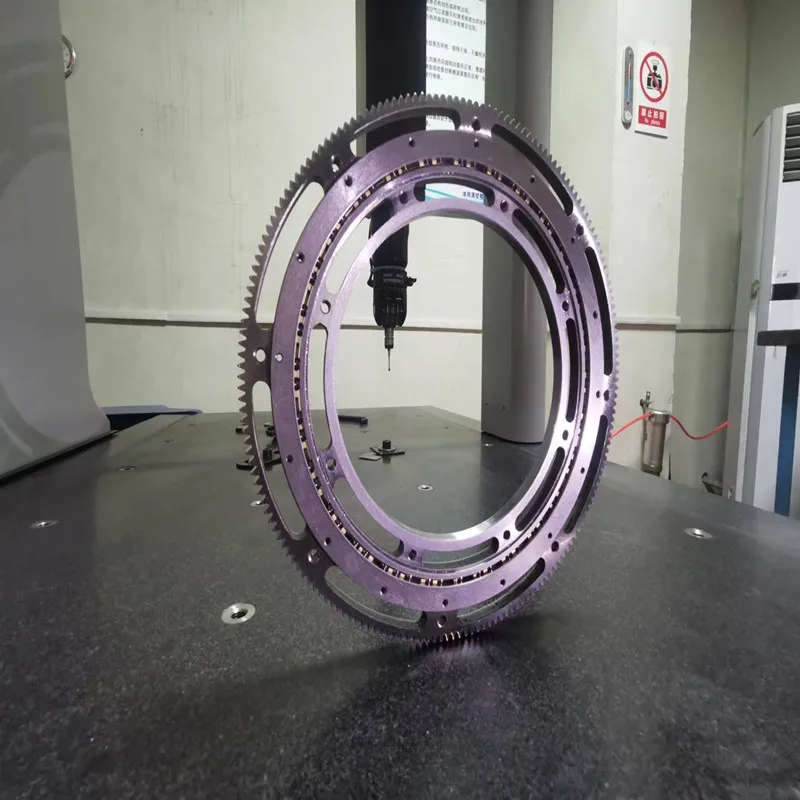

Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested  in the customized design, please feel free to leave a message or contact us directly. These bearings include: Customized bearing for UAV , driving ring, integral thin section rack and hybird rolling media phosphating thin section bearing.

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer. Our registered name :Luoyang BOBI Precision Bearing Co.,Ltd.

Q: How long is your delivery time?
A: Generally it is 3-7 days after full payment if the goods are in stock. or it is 15-35 days, if the goods are not in stock, based on order quantities.

Q: What is your terms of payment ?
A: We accept T/T in advance , L/C .We'll keep you be informed by e-mail for the production and  the photos of the products and packages shall be send to you by e-mail before you pay the balance.

Q: What's your shipment method?
A: We ship by Express FedEX, UPS, DHL, EMS and by air or sea for large batches.

Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q:  Is certified according to the latest standards?
A: We have certified by ISO 9001:2015

Q: How do you keep your customer satisfied and willing to set up long terms of business with your company ?
A1:We keep good quality and competitive price to ensure our customers to be benefit ;
A2: We respect every customer  and  serve them as a friend no matter where they come from.
