Thin Section Bearing KC045AR0 Angular Contact Ball Ring 4.5*5.25*0.375 in 114.3*133.35*9.525 mm for Robot Joint

Parameters:

Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 25°、30°
Seal Type Open

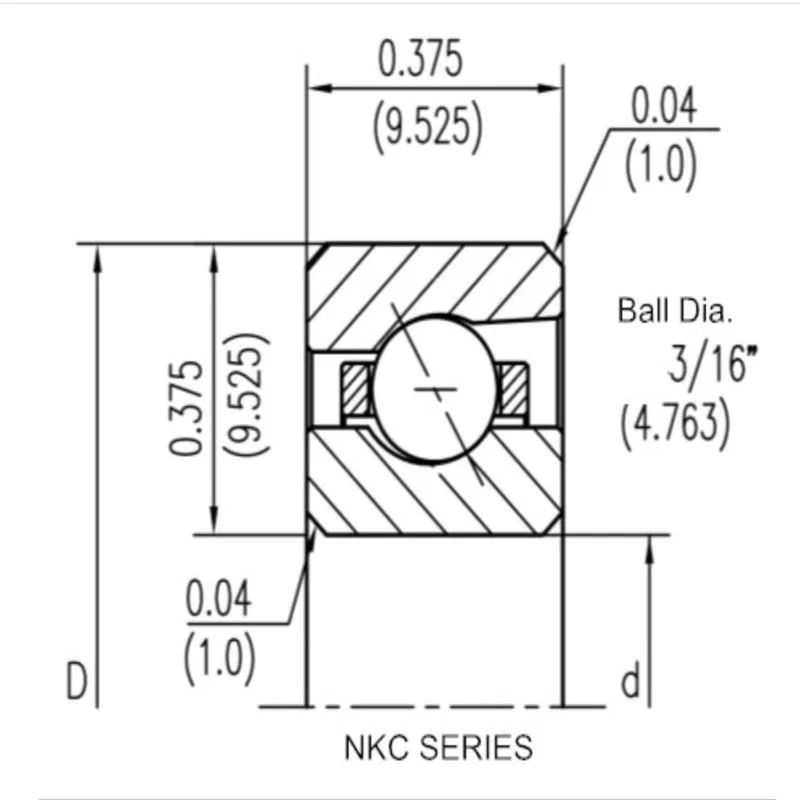

Cross Section 3/8″ x 3/8″

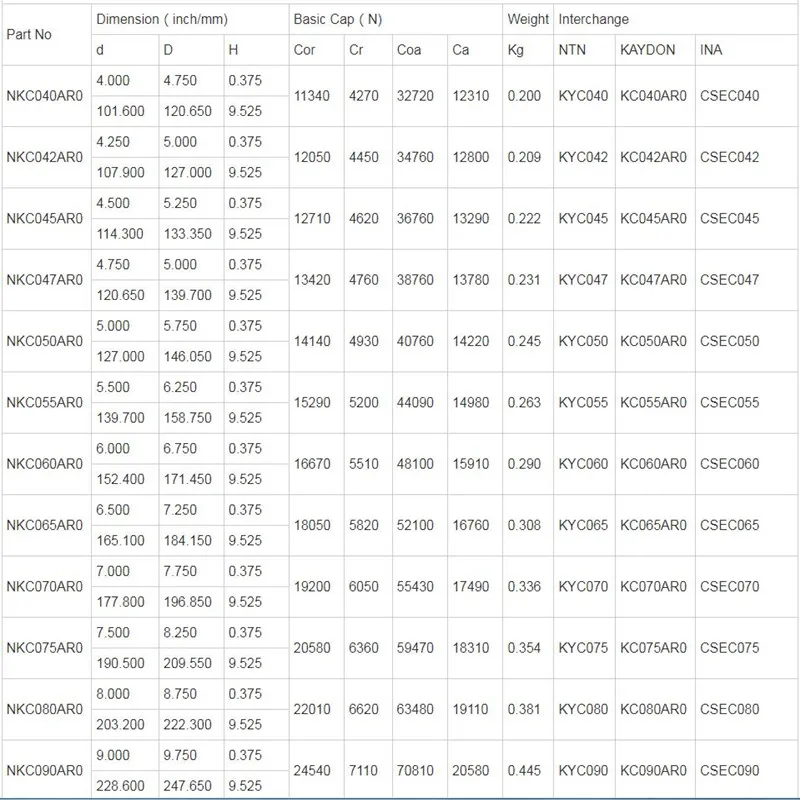

Part Number KC045AR0(NKC045AR0)
Bore Dia (d) 4.500"(114.3mm)
Bore Dia Tolerance -0.0008"– 0"
Outer Dia (D) 5.250”(133.35mm)
Outer Dia Tolerance -0.0008"– 0"
Width (B) 0.375"(9.525mm)
Width Tolerance +.000 –.005"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic(lbs) Radial 1234
Thrust 2990
Static (lbs) Radial 2860
Thrust 8270
Lubrication Lubricated
Temperature Range -20° to 180 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
Weight (lbs) 0.490

About Our Stock

For  those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

Applications:

Our  BOBI products are widely used in the following fields:
Medical Equipment,  Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
