ER23 ER-23 Insert Bearing Gold Line Ball Bearing 36.525X72.009X42.875 mm
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
P203KRR3 agricultural machinery bearing 203KRR3 8984YY Replace NH 47577176
-
SN series split plummer block housing SN522 Heavy duty plummer housing SN520
-
UC214G2T20 SNR Insert Bearing with high high temperature 70*125*30 mm
-
YEN206 Insert Bearing With Eccentric Locking Collar GRAE30 NPPB 30X62X35.8mm
-
YEN211 Insert Ball Bearing With Eccentric Locking Collar GRAE55NPPB GRAE55-XL-NPP-B 55X100X48.4 mm
-
YEN210 Insert Bearing With Eccentric Locking Collar GRAE50NPPB GRAE50-XL-NPP-B 50X90X43.8 mm
Product Description
Product Description
Insert Bearing With Eccentric Locking Collar ER23 ER-23
Radial insert ball bearings are ready-to-fit machine elements. In combination with drawn shafts, they are particularly easy to fit and suitable for the design of economical bearing arrangements. They are highly suitable where predominantly radial loads must be supported.
Radial insert ball bearings with an extended inner ring undergo less tilting and therefore run more smoothly.
Radial insert ball bearings with a spherical outer ring are highly suitable where:
* static angular misalignments of the shaft must be compensated, which are caused by mounting inaccuracies and tolerances in the
adjacent construction ? section
* very good seals are required in environmental conditions such as dust, contamination, moisture, stone impacts and shocks ?
section .
Radial insert ball bearings with a cylindrical outer ring are highly suitable where:
* a cylindrical housing bore is already present
* the outer ring of the bearings is to be located by means of easy-to-fit snap rings.
Radial insert ball bearings with a profiled bore are highly suitable where:
* shafts must transmit very high torques.
Radial insert ball bearings with a rubber interliner are highly suitable where:
* vibrations and shocks must be supported
* damping of running noise is required.
bearing name | Gold Line Ball Bearing ER-23 |
Material : | bearing : chrome steel |
brand | FYH , NTN ,NSK OR YOU WANT |
d | 36.525 mm |
D | 72.009 mm |
B | 42.875 mm |
Weight | 0.62 kg |
contact | jessi chen |
E | lbc001 at |
Detailed Images

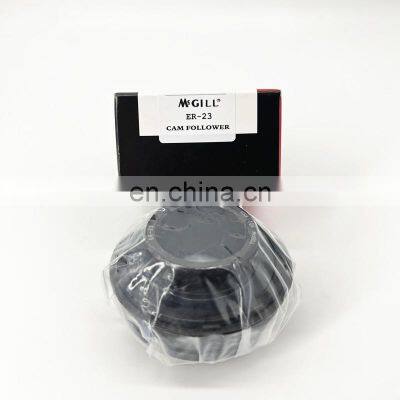

insert bearing ER-23 ball bearings ER23 bearing
insert ball bearing GAY NPPB GE KRRB RAE NPPB GRAE NPPB Series
GRAE35 NPP B GAY30 NPP B GE50 KRR B RAE35 NPP B
Related Products
Size Information
GRAE..-NPP-B
Radial insert ball bearings
Radial insert ball bearings
Bearing | d | DSP | B1 |
mm | mm | mm | |
GRAE12-XL-NPP-B | 12 | 40 | 28,6 |
GRAE15-XL-NPP-B | 15 | 40 | 28,6 |
GRAE17-XL-NPP-B | 17 | 40 | 28,6 |
GRAE20-XL-NPP-B | 20 | 47 | 31 |
GRAE25-XL-NPP-B | 25 | 52 | 31 |
GRAE30-XL-NPP-B | 30 | 62 | 35,8 |
GRAE35-XL-NPP-B | 35 | 72 | 39 |
GRAE40-XL-NPP-B | 40 | 80 | 43,8 |
GRAE45-XL-NPP-B | 45 | 85 | 43,8 |
GRAE50-XL-NPP-B | 50 | 90 | 43,8 |
GRAE55-XL-NPP-B | 55 | 100 | 48,4 |
GRAE60-XL-NPP-B | 60 | 110 | 53,1 |
Certifications
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
