Home > Products > Pillow Block Ball Bearing > Bushing H 3038 Adapter Sleeve H3038 H3034 H3032 H3030
Bushing H 3038 Adapter Sleeve H3038 H3034 H3032 H3030
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
SNL522-619 Plummer Block Housing Bearing SNL 522-619 + 22222 K + H 322
-
UCPH Cast Iron Pillow Shape Unit UCPH202 UCPH203 UCPH204 UCPH205 Pillow Block Mounted Bearings PH205
-
UC206 Pillow Block Bearings UCPH206 UCPH207 UCPH208 UCPH209 PH206
-
Nylon Plastic Bearing Housing SUCPA207 Stainless Steel Insert Bearing SUC207 SUCPATP207 UCPA207-20
-
Stainless Steel Pillow Block Ball Bearing Housing SUCPA208 SUCPA208-24 SUCPA208-25 SPA208
-
SUCPA207 Stainless Steel Pillow Block Ball Bearing Housing SUCPA207-20 SUCPA207-22 SUCPA207-23
Product Description
Product Description

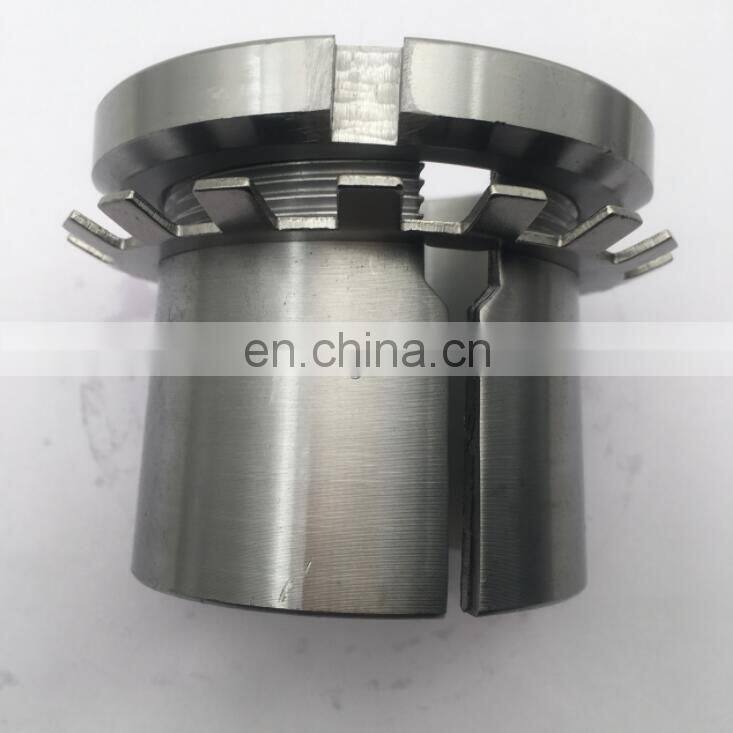

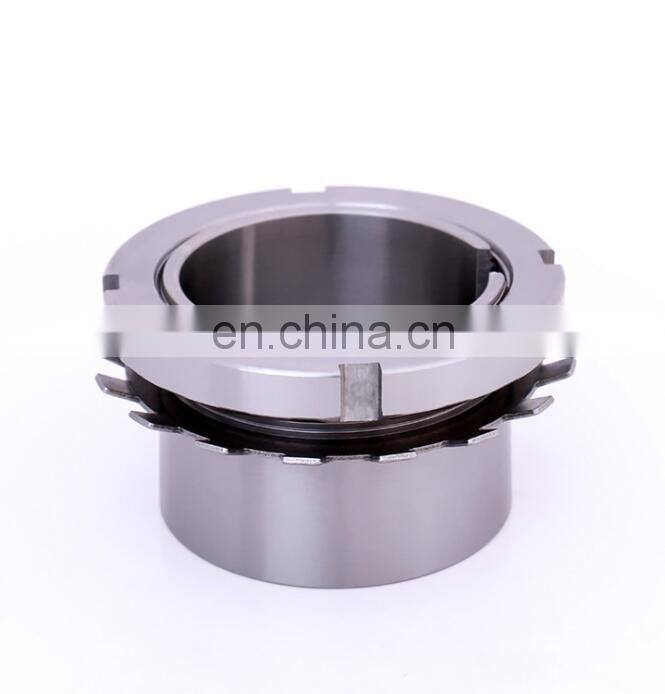

Bearing Bushing H 3038 adapter sleeve bearing H3038 H3034 H3032 H3030

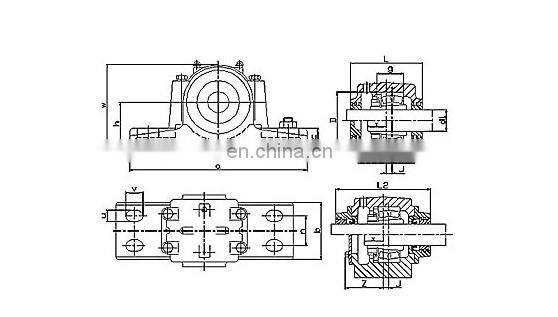

SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
The plummer block housings, often referred to as “large SNL plummer block housings”, are split housings. They have four holes cast into the base for attachment bolts.
Large SNL plummer block housings are primarily intended for spherical roller bearings
and CARB toroidal roller bearings.
Large SNL plummer block housings as standard are made of grey cast iron EN-GJL-250. Where extra strength is needed, housing made of spheroidal graphite cast iron EN-GJS-400 can be supplied. These housings are identified by the designation prefix D, i.e. SNLD.
bearing name | Adapter sleeve H3038 |
Material : | bearing : chrome steel housing : cast iron |
bearing | 23038 |
stock | have stock |
email | sales1@landlionbearing.com |
Tel/ whatsapp | +86-18710180456 |
Detailed Images
pillow block ball bearing type :
2 bolt Flange bearings units
3 bolt Flange bearings units
4-Bolt Flange Bearing Units
Take -up bearings
insert bearings
Related Products
Size Information
d | d1 | B1 | d2 | B2 | B3 | weight |
H305 | 25 | 20 | 29 | 38 | 8 | 0.071 |
H306 | 30 | 25 | 31 | 45 | 8 | 0.095 |
H307 | 35 | 30 | 35 | 52 | 9 | 0.14 |
H308 | 40 | 35 | 36 | 58 | 10 | 0.17 |
H309 | 45 | 40 | 39 | 65 | 11 | 0.23 |
H310 | 50 | 45 | 42 | 70 | 12 | 0.27 |
H311 | 55 | 50 | 45 | 75 | 2 | 0.32 |
H312 | 60 | 55 | 47 | 80 | 13 | 0.36 |
H313 | 65 | 60 | 50 | 85 | 14 | 0.42 |
H314 | 70 | 60 | 52 | 92 | 14 | 0.67 |
H315 | 75 | 65 | 55 | 98 | 15 | 0.78 |
H316 | 80 | 70 | 59 | 105 | 17 | 0.95 |
H317 | 85 | 75 | 63 | 110 | 18 | 1.1 |
H318 | 90 | 80 | 65 | 120 | 18 | 1.3 |
H319 | 95 | 85 | 68 | 125 | 19 | 1.4 |
H320 | 100 | 90 | 71 | 130 | 20 | 1.6 |
H322 | 110 | 100 | 77 | 145 | 21 | 2.05 |
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
