SNL526 Split Plummer Block Housing SNL SNLN Housing SNL 526 + 22226K +H3126
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality SD3140 SNL3140 Split Plummer Block Bearing Housing SNL 3140 + 23140 K + H 3140
-
SNLN 3024 + 23024 CCK/W33 + H 3024 Split Plummer Pillow Block Housing SNLN3024 SNL3024 H3024 TSN3024S + ASNH 524-620
-
SNLN 3034 Split Plummer Pillow Block Housing SNLN3034 SNL3034 23034 CCK/W33 H3034 TSN3034S + ETS3034
-
SN3024 Plummer Pillow Block Bearing Housing SN3024 SN3034 SN3036 SN3038
-
SN SNL Series Split Plummer Block Housing SN524 Heavy Duty Plummer Housing SNL524 SNL524-620
-
SNL524 Split Plummer Block Bearing Housing Units SNL524-620 + 22224 K +H3124
Product Description
Product Description
SNL 526 + 22226 K + H 3126 SE and SNL plummer block housings for bearings on an adapter sleeve
SE and SNL plummer block housings for bearings on an adapter sleeve, with standard seals
SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
The plummer block housings, often referred to as “large SNL plummer block housings”, are split housings. They have four holes cast into the base for attachment bolts.
Large SNL plummer block housings are primarily intended for spherical roller bearings
and CARB toroidal roller bearings.

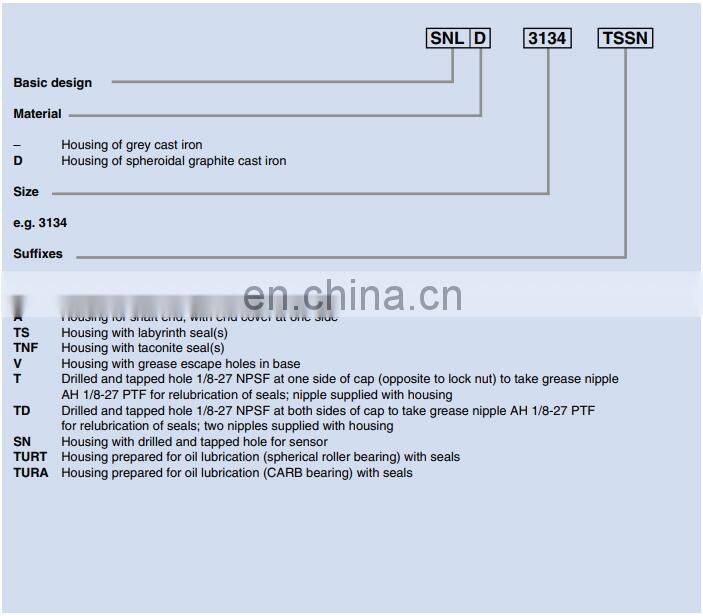

Large SNL plummer block housings as standard are made of grey cast iron EN-GJL-250. Where extra strength is needed, housing made of spheroidal graphite cast iron EN-GJS-400 can be supplied. These housings are identified by the designation prefix D, i.e. SNLD.
bearing name | SNL Split Plummer Block Bearing Housing Units SNL 526 + 22226 K + H 3126 |
Material : | bearing : chrome steel housing : cast iron |
bearing | 22226K |
adapter sleeve | h3126 |
locating ring | 2 x FRB 13/230 |
email | sales1@landlionbearing.com |
Tel/ whatsapp | +86-18710180456 |

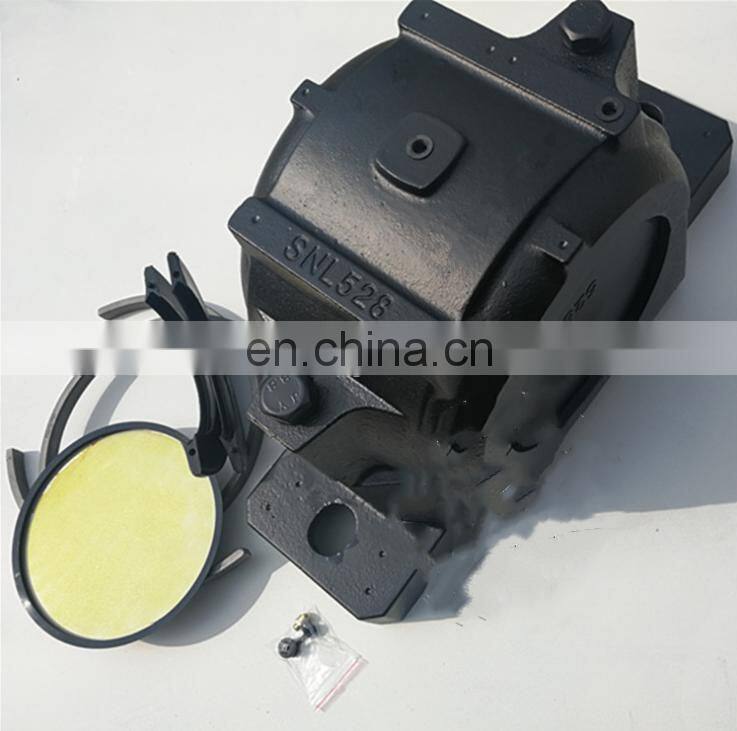

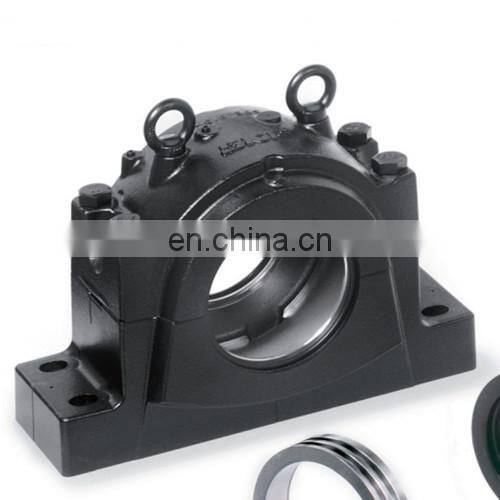

Detailed Images
pillow block ball bearing type :
2 bolt Flange bearings units
3 bolt Flange bearings units
4-Bolt Flange Bearing Units
Take -up bearings
insert bearings
Related Products
Size Information
Large SNL plummer block housings design
Housing | Shaft | Dimensions(mm) | |||||
NO. | dia | A | H | L | N | N1 | Weightt |
d1(mm) | (kg) | ||||||
SNL505 | 20 | 67 | 74 | 165 | 20 | 15 | 1.9 |
SNL506-605 | 25 | 77 | 89 | 185 | 20 | 15 | 2.2 |
SNL507-606 | 30 | 82 | 93 | 185 | 20 | 15 | 2.4 |
SNL508-607 | 35 | 85 | 108 | 205 | 20 | 15 | 3.2 |
SNL509 | 40 | 85 | 109 | 205 | 20 | 15 | 3.5 |
SNL510-608 | 45 | 90 | 113 | 205 | 20 | 15 | 3.85 |
SNL511-609 | 50 | 95 | 128 | 255 | 24 | 18 | 5.4 |
SNL512-610 | 55 | 105 | 134 | 255 | 24 | 18 | 6.7 |
SNL513-611 | 60 | 110 | 149 | 275 | 24 | 18 | 7.9 |
SNL515-612 | 65 | 115 | 155 | 280 | 24 | 18 | 9.7 |
SNL516-613 | 70 | 120 | 177 | 315 | 28 | 22 | 11.5 |
SNL517 | 75 | 125 | 183 | 320 | 28 | 22 | 12.8 |
SNL518-615 | 80 | 140 | 194 | 345 | 28 | 22 | 15.4 |
SNL519-616 | 85 | 145 | 212 | 345 | 28 | 22 | 16.4 |
SNL520-617 | 90 | 160 | 218 | 380 | 32 | 26 | 20.4 |
SNL522-619 | 100 | 175 | 242 | 410 | 32 | 26 | 26.5 |
SNL524-620 | 110 | 185 | 271 | 410 | 32 | 26 | 32.2 |
SNL526 | 115 | 190 | 290 | 445 | 35 | 28 | 39.8 |
SNL528 | 125 | 205 | 302 | 500 | 42 | 35 | 48.8 |
SNL530 | 135 | 220 | 323 | 530 | 42 | 35 | 56.5 |
SNL532 | 140 | 235 | 344 | 550 | 42 | 35 | 63.5 |

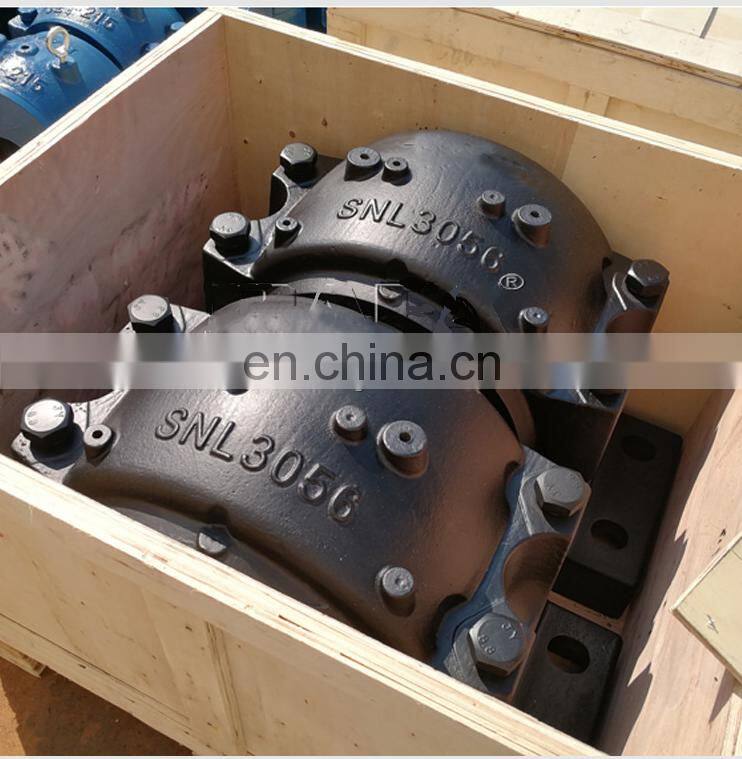

Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
