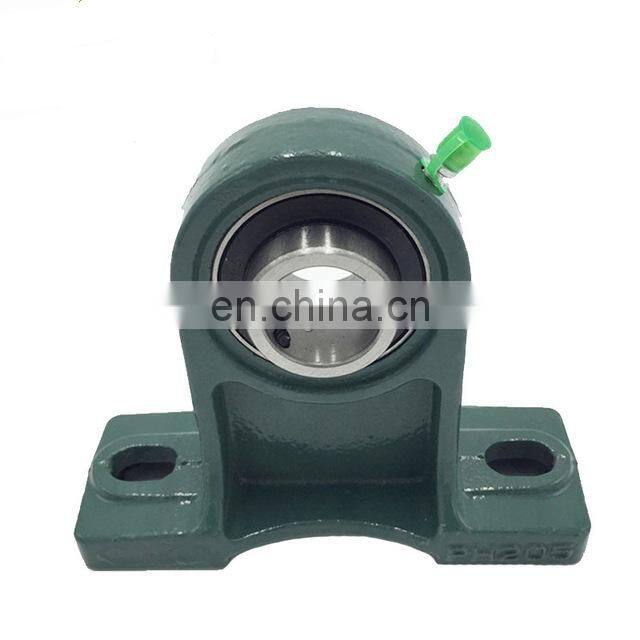

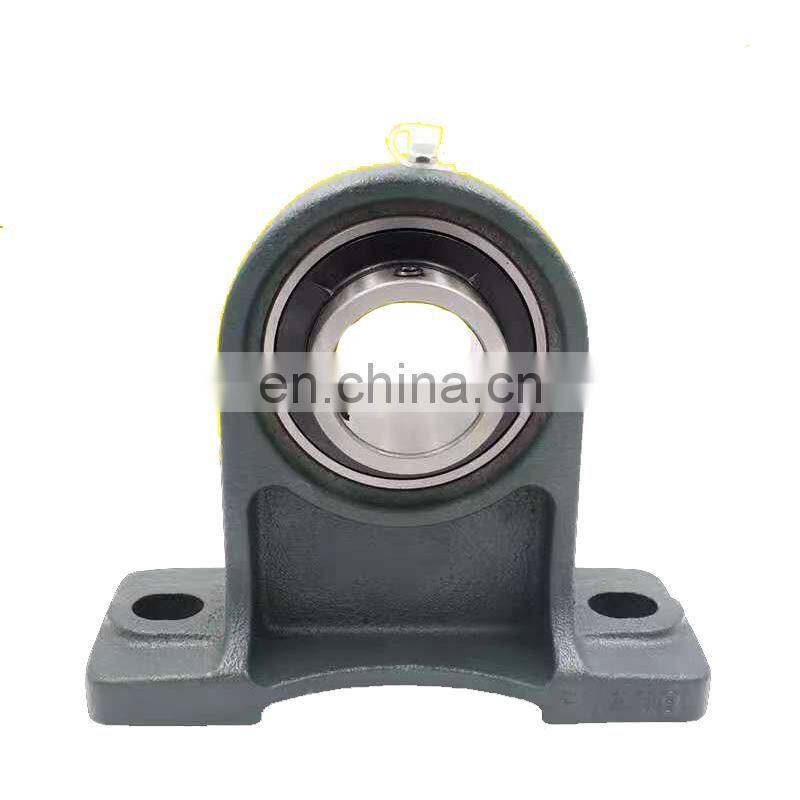

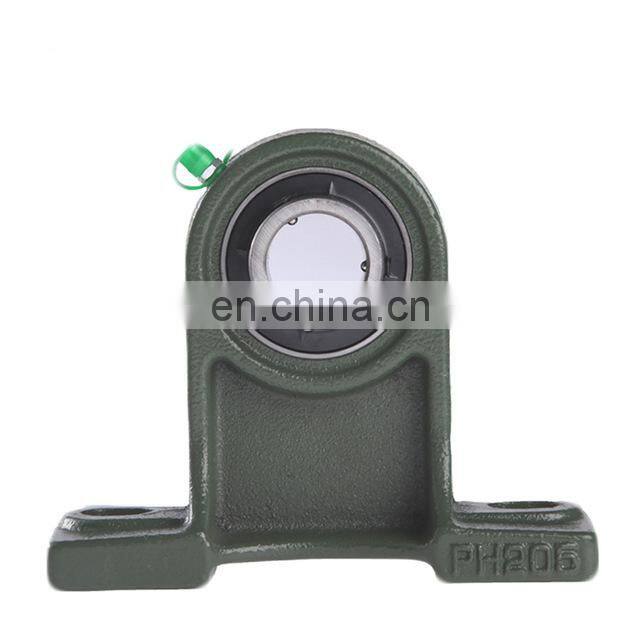

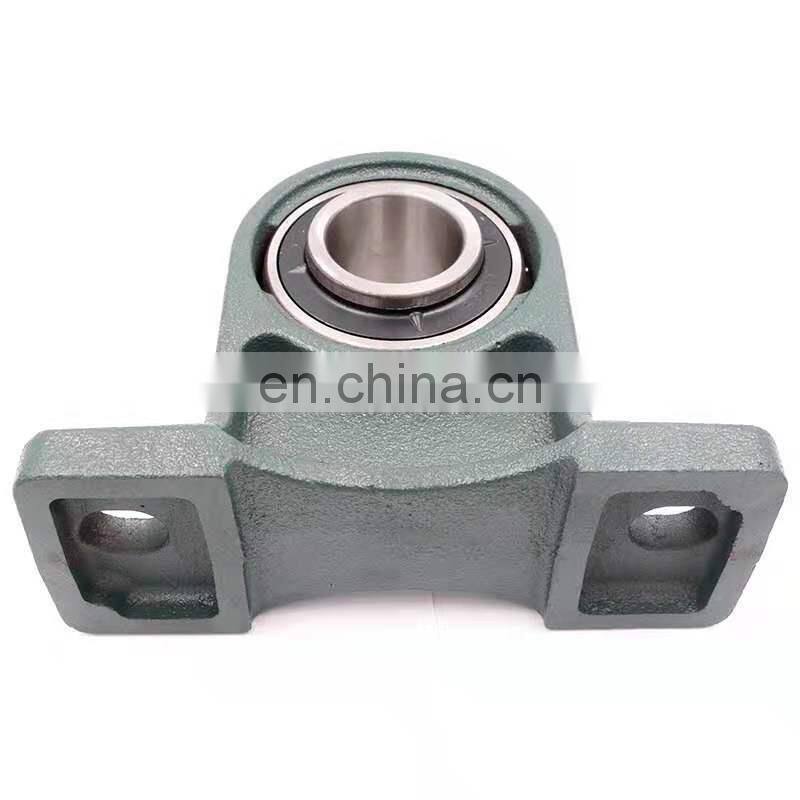

UCPH Cast Iron Pillow Shape Unit UCPH202 UCPH203 UCPH204 UCPH205 Pillow Block Mounted Bearings PH205

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

UCPH Cast Iron Pillow Shape Unit UCPH202 UCPH203 UCPH204 UCPH205 Pillow Block Mounted Bearings PH205

we have these bearings :

UCPH201 UCPH201-8
UCPH202 UCPH202-9 UCPH202-10
UCPH203 UCPH203-11
UCPH204 UCPH204-12
UCPH205 UCPH205-13 UCPH205-14 UCPH205-15 UCPH205-16
UCPH206 UCPH206-17 UCPH206-18 UCPH206-19 UCPH206-20
UCPH207 UCPH207-20 UCPH207-21 UCPH207-22 UCPH207-23
UCPH208 UCPH208-24 UCPH208-25
UCPH209 UCPH209-26 UCPH209-27 UCPH209-28
UCPH210 UCPH210-29 UCPH210-30 UCPH210-31 UCPH210-32
UCPH211 UCPH211-32 UCPH211-33 UCPH211-34 UCPH211-35
UCPH212 UCPH212-36 UCPH212-37 UCPH212-38 UCPH212-39
UCPH213 UCPH213-40 UCPH213-41
UCPH214 UCPH214-42 UCPH214-43 UCPH214-44
UCPH215 UCPH215-45 UCPH215-46 UCPH215-47 UCPH215-48
UCPH216 UCPH216-50

bearing name	UCPH201 UCPH202 UCPH203 UCPH204 UCPH205 UCPH206 UCPH207 Ball Pillow Block Bearing
Material :	bearing : chrome steel housing : cast iron
brand	FYH , NTN ,NSK
size :	25MM
mail	sales1@landlionbearing.com
Tel/ whatsapp	+86-18710180456

Related Products

Detailed Images

pillow block ball bearing type :

2 bolt Flange bearings units

3 bolt Flange bearings units

4-Bolt Flange Bearing Units

Take -up bearings

insert bearings

Size Information

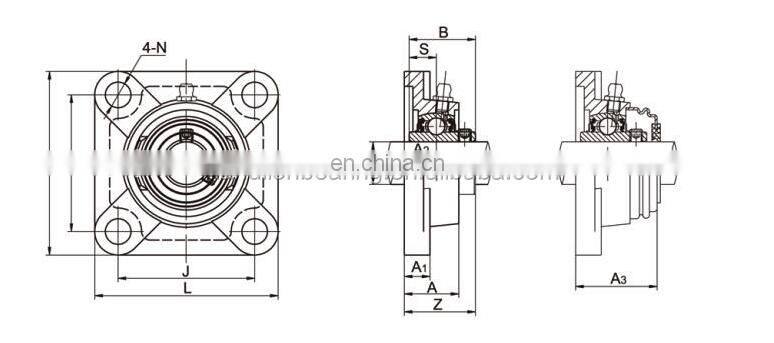

4-Bolt Flange Bearing Units UCF2 size

No.	Shaft Dia	Dimensions(mm)				Bolt size	weight
d	L	J	A2	A1	N
(in)	(mm)
UCWF201		12	76	54	11	M10	0.72
UCWF202		15	76	54	11	M10	0.62
UCWF203		17	76	54	11	M10	0.61
UCF201		12	86	64	12	M10	0.61
UCF201-8	1/2		86	64	12	M10	0.61
UCF202		15	86	64	12	M10	0.61
UCF202-9	9/16		86	64	12	M10	0.61
UCF202-10	5/8		86	64	12	M10	0.61
UCF203		17	86	64	12	M10	0.61
UCF203-11	11/16		86	64	12	M10	0.61
UCF204		20	86	64	12	M10	0.61
UCF204-12	3/4		86	64	12	M10	0.61
UCF205		25	95	70	14	M10	0.8
UCF205-14	7/8		95	70	14	M10	0.8
UCF205-15	15/16		95	70	14	M10	0.8
UCF205-16	1		95	70	14	M10	0.8
UCF206		30	108	83	14	M10	1
UCF206-17	1-1/16		108	83	14	M10	1
UCF206-18	1-1/8		108	83	14	M10	1
UCF206-19	1-3/16		108	83	14	M10	1
UCF206-20	1-1/4		108	83	14	M10	1
UCF207		35	117	92	16	M12	1.4
UCF207-20	1-1/4		117	92	16	M12	1.4
UCF207-21	1-5/16		117	92	16	M12	1.4
UCF207-22	1-3/8		117	92	16	M12	1.4
UCF207-23	2001/7/16		117	92	16	M12	1.4
UCF208		40	130	102	16	M14	1.8
UCF208-24	1-1/2		130	102	16	M14	1.8
UCF208-25	1-9/16		130	102	16	M14	1.8
UCF209		45	137	105	18	M14	2.2
UCF209-26	1-5/8		137	105	18	M14	2.2
UCF209-27	1-11/16		137	105	18	M14	2.2
UCF209-28	1-3/4		137	105	18	M14	2.2
UCF210		50	143	111	18	M14	2.4
UCF210-30	1-7/8		143	111	18	M14	2.4
UCF210-31	1-15/16		143	111	18	M14	2.4
UCF210-32	2		143	111	18	M14	2.4
UCF211		55	162	130	20	M16	3.5
UCF211-32	2		162	130	20	M16	3.5
UCF211-34	2-1/8		162	130	20	M16	3.5
UCF211-35	2002/3/16		162	130	20	M16	3.5
UCF212		60	175	143	20	M16	4.2
UCF212-36	2-1/4		175	143	20	M16	4.2
UCF212-38	2-3/8		175	143	20	M16	4.2
UCF212-39	2-7/16		175	143	20	M16	4.2
UCF213		65	187	149	22	M16	5.3
UCF213-40	2-1/2		187	149	22	M16	5.3
UCF214		70	193	152	22	M16	5.9
UCF214-44	2-3/4		193	152	22	M16	5.9
UCF215		75	200	159	22	M16	6.3
UCF215-47	2-15/16		200	159	22	M16	6.3
UCF215-48	3		200	159	22	M16	6.3
UCF216		80	208	165	22	M20	7.3
UCF217		85	220	175	24	M20	8.9
UCF217-52	3-1/4		220	175	24	M20	8.9
UCF218		90	235	187	25	M20	11.6
UCF218-56	3-1/2		235	187	25	M20	11.6

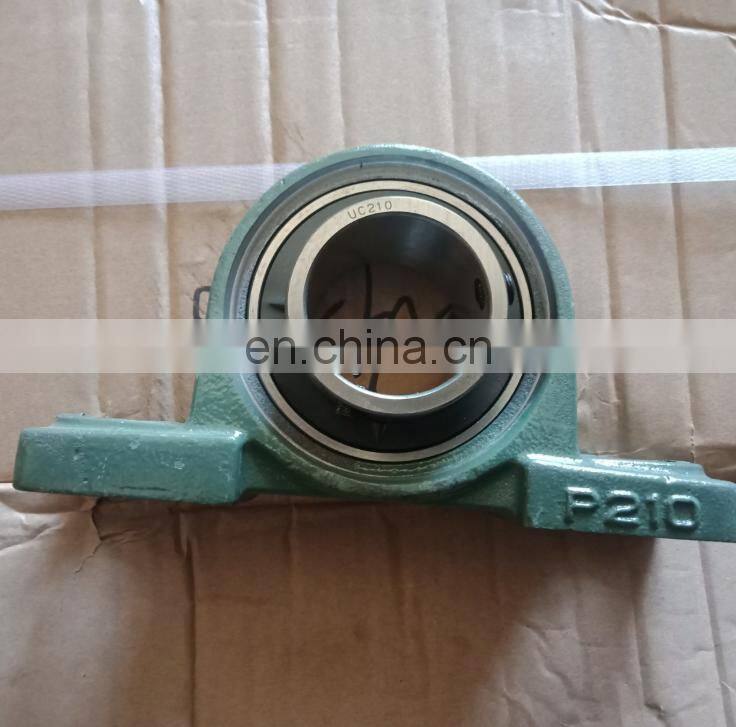

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
