Home > Products > Pillow Block Ball Bearing > 39602/F33 Square Bore Agricultural Insert Bearing 39602/33

39602/F33 Square Bore Agricultural Insert Bearing 39602/33

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

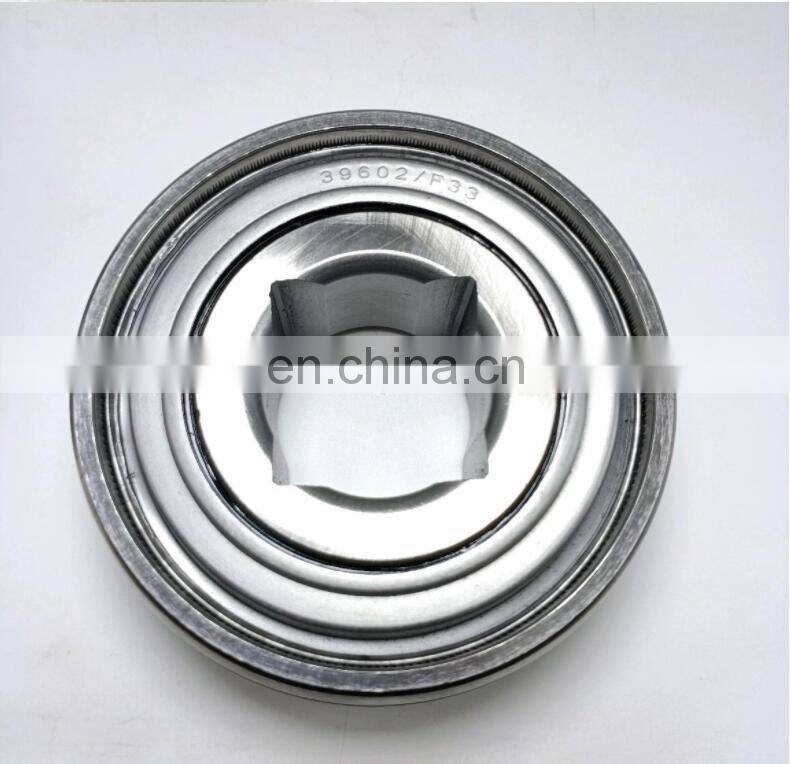

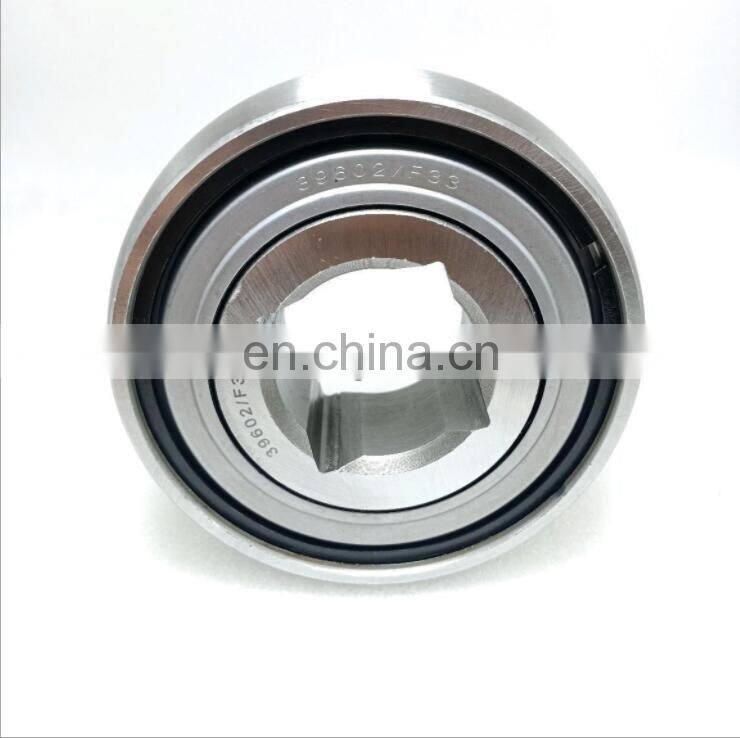

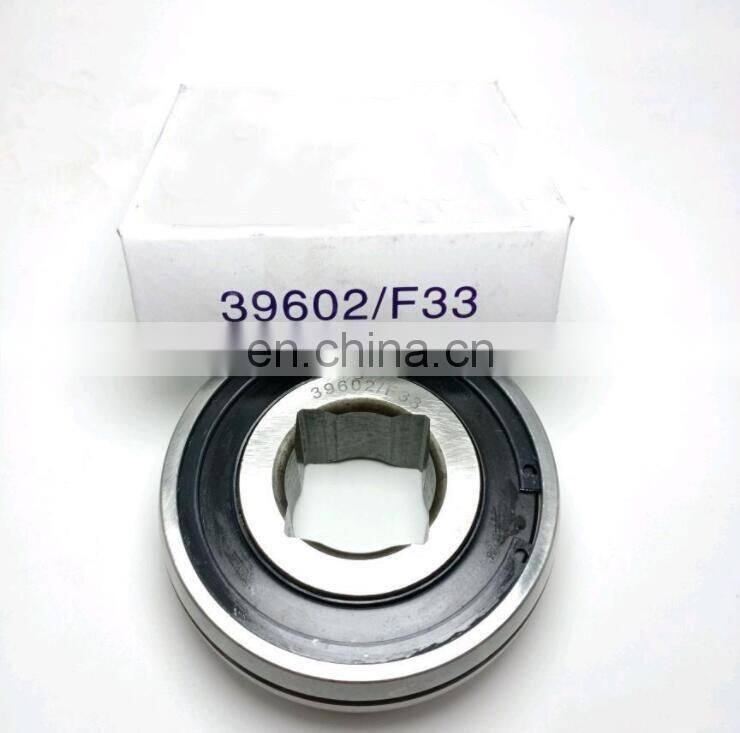

Agricultural Machinery Bearings 39602/F33 33.3x100x33.3mm Conveyor Bearings Supplied by the Manufacturer

harrow bearing 39602/F33

Weight:1.12 KGS

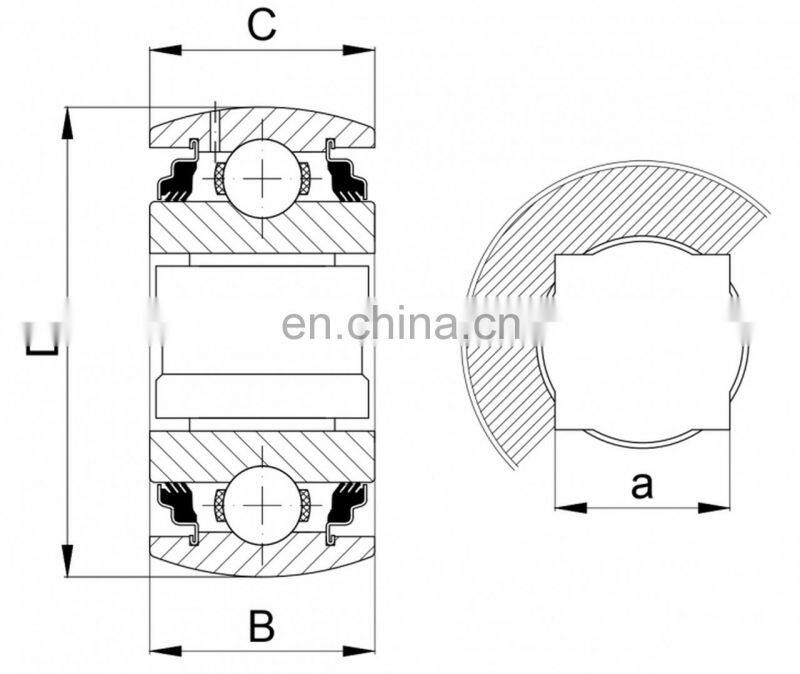

Square bore [a]:33,3 mm

Outer diameter [D]:100 mm

Inner ring width [B]:33,3 mm

Outer ring width [C]:33,3 mm

Bore type:SquareOuter ring
shape:Spherical

Square Shaft Bore Bearing 39602-F33, 39602f33 Square Bore Agricultural Machinery Insert Bearing, Tractor Bearing, Agriculture Bearing 39602 F29 F33 F41

bearing name	harrow bearing 39602/F33
Material :	bearing : chrome steel
brand	FYH , NTN ,NSK
size :	33.3x100x33.3mm
weight	1.12KG
Tel/ whatsapp	+86-18710180456 sales1@landlionbearing.com

harrow bearing 39602/F33 square bore bearing 39602 F29 F33 F41 agricultural machine bearings 39602F33

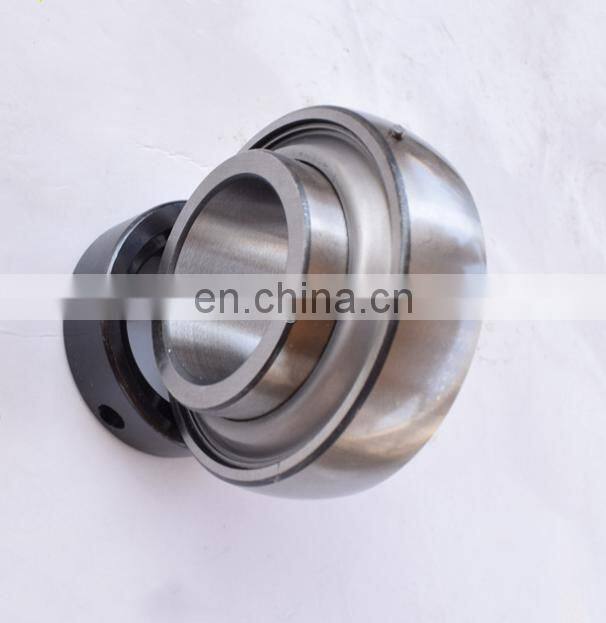

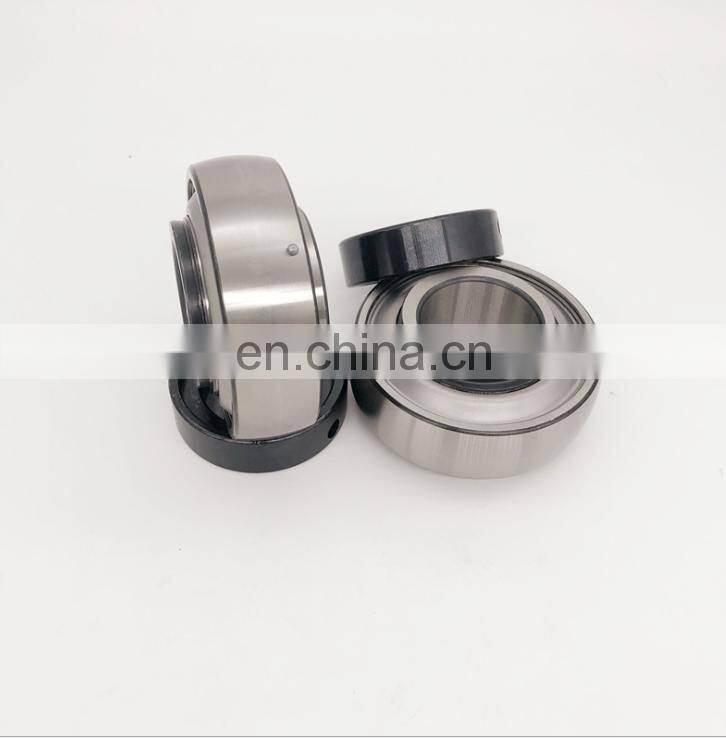

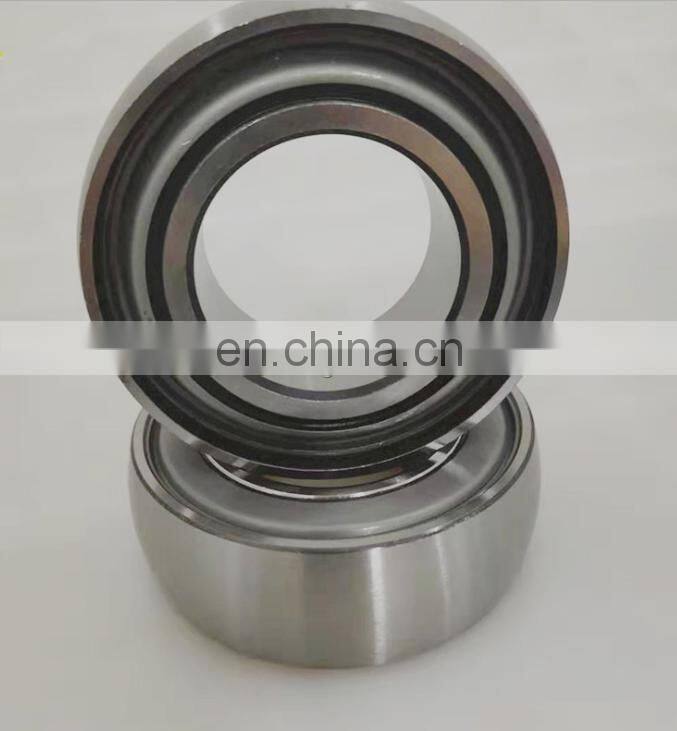

the other insert ball bearing

Factory direct agricultural machinery maintenance-free bearings HC205 HC206 HC207 208 HC209 HC210 HC310

Related Products

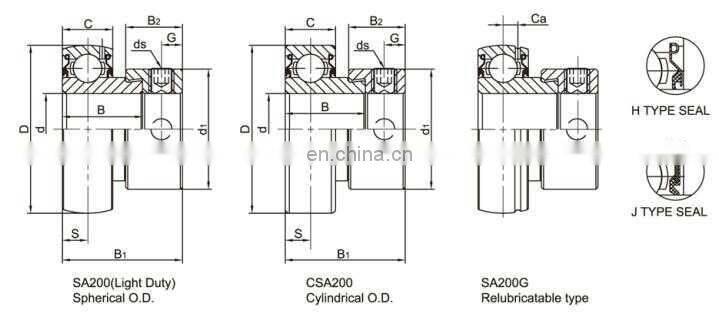

aring No.	Shaft Dia			Dimensions(mm)
	Shaft Dia			Dimensions(mm)
		d			D	B	C	S	B1	B2
		(in)	(mm)		D	B	C	S	B1	B2
SA201		12	40	19.1	12	6	28.6	13.5
SA201-8	1/2		40	19.1	12	6	28.6	13.5
SA202		15	40	19.1	12	6	28.6	13.5
SA202-9	9/16		40	19.1	12	6	28.6	13.5
SA202-10	5/8		40	19.1	12	6	28.6	13.5
SA203		17	40	19.1	12	6	28.6	13.5
SA203-11	11/16		40	19.1	12	6	28.6	13.5
SA204		20	47	21.5	14	7	31	13.5
SA204-12	3/4		47	21.5	14	7	31	13.5
SA205		25	52	22	15	7.5	31.5	13.5
SA205-14	7/8		52	22	15	7.5	31.5	13.5
SA205-15	15/16		52	22	15	7.5	31.5	13.5
SA205-16	1		52	22	15	7.5	31.5	13.5
SA206		30	62	23.8	16	8	35.7	15.9
SA206-17	1/1/16		62	23.8	16	8	35.7	15.9
SA206-18	1/1/8		62	23.8	16	8	35.7	15.9
SA206-19	1/3/16		62	23.8	16	8	35.7	15.9
SA206-20	1/1/4		62	23.8	16	8	35.7	15.9
SA207		35	72	25.4	17	8.5	38.9	17.5
SA207-20	1/1/4		72	25.4	17	8.5	38.9	17.5
SA207-21	1/5/16		72	25.4	17	8.5	38.9	17.5
SA207-22	1/3/8		72	25.4	17	8.5	38.9	17.5
SA207-23	1/7/16		72	25.4	17	8.5	38.9	17.5
SA208		40	80	30.2	18	9	43.7	18.3
SA208-24	1/1/2		80	30.2	18	9	43.7	18.3
SA208-25	1/9/16		80	30.2	18	9	43.7	18.3
SA209		45	85	30.2	19	9.5	43.7	18.3
SA209-26	1/5/8		85	30.2	19	9.5	43.7	18.3
SA209-27	1/11/16		85	30.2	19	9.5	43.7	18.3
SA209-28	1/3/4		85	30.2	19	9.5	43.7	18.3
SA210		50	90	30.2	20	10	43.7	18.3
SA210-30	1/7/8		90	30.2	20	10	43.7	18.3
SA210-31	1-15/16		90	30.2	20	10	43.7	18.3
SA210-32	2		90	30.2	20	10	43.7	18.3
SA211		55	100	32.5	21	10.5	48.4	20.7
SA211-32	2		100	32.5	21	10.5	48.4	20.7
SA211-33	2/1/16		100	32.5	21	10.5	48.4	20.7
SA211-34	2/1/8		100	32.5	21	10.5	48.4	20.7
SA211-35	2/3/16		100	32.5	21	10.5	48.4	20.7
SA212		60	110	37.2	22	11	53.1	22.3
SA212-36	2/1/4		110	37.2	22	11	53.1	22.3
SA212-37	2/5/16		110	37.2	22	11	53.1	22.3
SA212-38	2/3/8		110	37.2	22	11	53.1	22.3
SA212-39	2/7/16		110	37.2	22	11	53.1	22.3
Dimension										weight KG
B2	d1	G	ds			Ca	Dynamic Cr	Static Cor
B2	d1	G				Ca	Dynamic Cr	Static Cor	(mm)	(in.UNF)
13.5	28.6	5	M6x1		3.5	9.55	4.78	0.2
13.5	28.6	5		1/4/28	3.5	9.55	4.78			0.2
13.5	28.6	5	M6x1		3.5	9.55	4.78	0.2
13.5	28.6	5		1/4/28	3.5					0.2
13.5	28.6	5		1/4/28	3.5					0.2
13.5	28.6	5	M6x1		3.5	9.55	4.78	0.2
13.5	28.6	5		1/4/28	3.5	9.55	4.78			0.2
13.5	33.3	5	M6X1		4	12.82	6.65	0.21
13.5	33.3	5		1/4/28	4	12.82	6.65			0.21
13.5	38.1	5	M6X1		4.3	14.03	8.05	0.25
13.5	38.1	5		1/4/28	4.3					0.25
13.5	38.1	5		1/4/28	4.3					0.25
13.5	38.1	5		1/4/28	4.3					0.25
15.9	44.5	6	M6X1		4.9	19.47	11.43	0.39
15.9	44.5	6		1/4/28	4.9					0.39
15.9	44.5	6		1/4/28	4.9					0.39
15.9	44.5	6		1/4/28	4.9					0.39
15.9	44.5	6		1/4/28	4.9					0.39
17.5	55.6	6.5	M8X1		5.5	25.69	15.55	0.6
17.5	55.6	6.5		5/16-24	5.5					0.6
17.5	55.6	6.5		5/16-24	5.5					0.6
17.5	55.6	6.5		5/16-24	5.5					0.6
17.5	55.6	6.5		5/16-24	5.5					0.6
18.3	60.3	6.5	M8X1		6	29.51	18.14	0.77
18.3	60.3	6.5		5/16-24	6					0.77
18.3	60.3	6.5		5/16-24	6					0.77
18.3	63.5	6.5	M8X1		6.1	31.85	20.8	0.84
18.3	63.5	6.5		5/16-24	6.1					0.84
18.3	63.5	6.5		5/16-24	6.1					0.84
18.3	63.5	6.5		5/16-24	6.1					0.84
18.3	69.9	6.5	M8X1		6.6	34.99	23.7	1.02
18.3	69.9	6.5		5/16-24	6.6					1.02
18.3	69.9	6.5		5/16-24	6.6					1.02
18.3	69.9	6.5		5/16-24	6.6					1.02
20.7	76.2	8	M10X1.25		7.2	43.34	29.39	1.37
20.7	76.2	8		3/8/24	7.2					1.37
20.7	76.2	8		3/8/24	7.2					1.37
20.7	76.2	8		3/8/24	7.2					1.37
20.7	76.2	8		3/8/24	7.2					1.37
22.3	84.2	8	M10X1.25		7.5	47.68	33.43	1.85
22.3	84.2	8		3/8/24	7.5					1.85
22.3	84.2	8		3/8/24	7.5					1.85
22.3	84.2	8		3/8/24	7.5					1.85
22.3	84.2	8		3/8/24	7.5					1.85

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
