SN SNL series split plummer block housing SN528 SN 528
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
deep groove ball bearing 88128 Agricultural Bearings 88128R
-
688282 Conrad Ball Bearings 19*63.5*22.5mm Baler Piston Bearing 6901PJ
-
38766 Agricultural Machinery Bearing W 38766 31.75x 62x18mm
-
SNH series Housing Plummer Block SNH522 SNH522-619
-
SNH509 Bearing Housing Plummer Block SNH509 SNH510 SNH511 SNH513
-
SNL 519-616 Mounted Split Plummer Block Bearing Housing Units SNL519-616
Product Description
Product Description

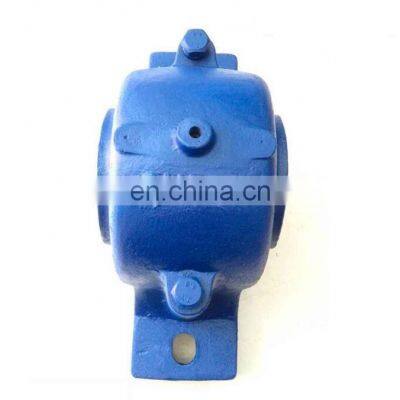

SN SNL series split plummer block housing SN528 Heavy duty plummer housing SN528
SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.
The plummer block housings, often referred to as “large SNL plummer block housings”, are split housings. They have four holes cast into the base for attachment bolts.
Large SNL plummer block housings are primarily intended for spherical roller bearings
and CARB toroidal roller bearings.
Large SNL plummer block housings as standard are made of grey cast iron EN-GJL-250. Where extra strength is needed, housing made of spheroidal graphite cast iron EN-GJS-400 can be supplied. These housings are identified by the designation prefix D, i.e. SNLD.
bearing name | SN SNL series split plummer block housing SN528 Heavy duty plummer housing SN528 |
Material : | bearing : chrome steel housing : cast iron |
bearing | 22228 |
stock | have |
brand | LSBC or OEM |
email | sales1@landlionbearing.com |
Tel/ whatsapp | +86-18710180456 |
Detailed Images
pillow block ball bearing type :
2 bolt Flange bearings units
3 bolt Flange bearings units
4-Bolt Flange Bearing Units
Take -up bearings
insert bearings
Related Products
Size Information
Large SNL plummer block housings design
Housing | Shaft | Dimensions(mm) | |||||
NO. | dia | A | H | L | N | N1 | Weightt |
d1(mm) | (kg) | ||||||
SNL505 | 20 | 67 | 74 | 165 | 20 | 15 | 1.9 |
SNL506-605 | 25 | 77 | 89 | 185 | 20 | 15 | 2.2 |
SNL507-606 | 30 | 82 | 93 | 185 | 20 | 15 | 2.4 |
SNL508-607 | 35 | 85 | 108 | 205 | 20 | 15 | 3.2 |
SNL509 | 40 | 85 | 109 | 205 | 20 | 15 | 3.5 |
SNL510-608 | 45 | 90 | 113 | 205 | 20 | 15 | 3.85 |
SNL511-609 | 50 | 95 | 128 | 255 | 24 | 18 | 5.4 |
SNL512-610 | 55 | 105 | 134 | 255 | 24 | 18 | 6.7 |
SNL513-611 | 60 | 110 | 149 | 275 | 24 | 18 | 7.9 |
SNL515-612 | 65 | 115 | 155 | 280 | 24 | 18 | 9.7 |
SNL516-613 | 70 | 120 | 177 | 315 | 28 | 22 | 11.5 |
SNL517 | 75 | 125 | 183 | 320 | 28 | 22 | 12.8 |
SNL518-615 | 80 | 140 | 194 | 345 | 28 | 22 | 15.4 |
SNL519-616 | 85 | 145 | 212 | 345 | 28 | 22 | 16.4 |
SNL520-617 | 90 | 160 | 218 | 380 | 32 | 26 | 20.4 |
SNL522-619 | 100 | 175 | 242 | 410 | 32 | 26 | 26.5 |
SNL524-620 | 110 | 185 | 271 | 410 | 32 | 26 | 32.2 |
SNL526 | 115 | 190 | 290 | 445 | 35 | 28 | 39.8 |
SNL528 | 125 | 205 | 302 | 500 | 42 | 35 | 48.8 |
SNL530 | 135 | 220 | 323 | 530 | 42 | 35 | 56.5 |
SNL532 | 140 | 235 | 344 | 550 | 42 | 35 | 63.5 |
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
