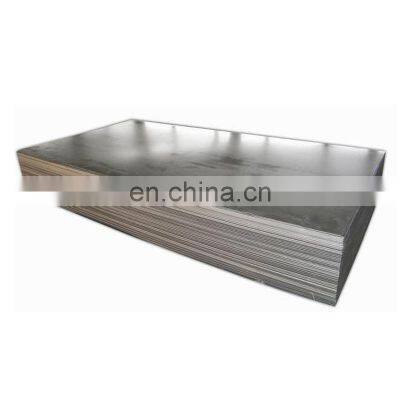

Hot Dipped 1.2mm Thicknessgi Sheet G80-G275 Zinc Coating Galvanized Steel Plate

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Hot dipped 1.2mm thicknessgi sheet G80-G275 zinc coating galvanized steel plate

Specification

Standard	AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Material	SGCC/ CGCC/ DX51D+Z
Thickness(mm)	Cold Rolled Thickness:0.12 ~ 3.00 mmHot Rolled Thickness:1.20 ~ 4.60 mm As Your Request
Width(mm)	600mm-2200mm, As Your RequestRegular width 1000mm, 1250mm, 1500mm
Tolerance	Thickness: ±0.01 mmWidth: ±2 mm
Zinc Coating	30g - 275g / m2
Surface Treatment	Anti-finger print /skin pass/oiled/ dry/chromated
Certificate	CE、ISO9001、etc.
Application	1. Refrigerator shutter &side panels, Washer, Freezers, Air conditions 2. Rice Cooker, Microwave Ovens, Water Heaters, Sterilization Cabinets, Range Hoods, Computer Panels , DVD/DVB panels, TV back panel etc.
Trade Term	FOB,CIF,CFR,EXW,etc.

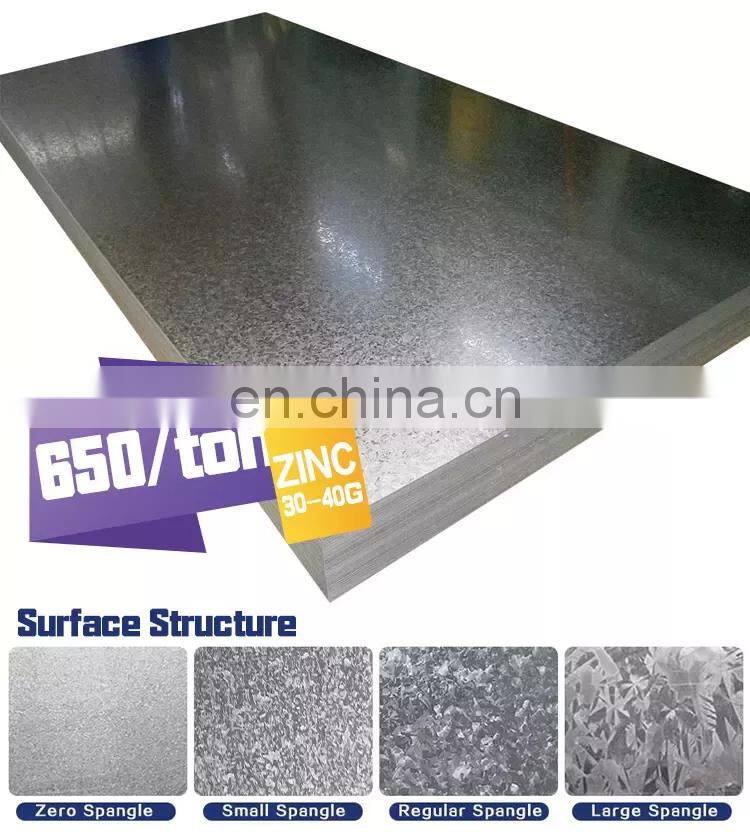

Spangle	Big spangle,Regular spangle,Mini spangle,Zero spangle
Surface Treatment	Coated,Galvanized,Clean, Blasting and Painting according to customer requirement
Packing	Standard Export packing(Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)

Usage	Grade	Yield Strength (MPA)	Tensile Strength (MPA)	Elongation rate %	Purposes and Features
Punching Galvanized Steel	DX51D+Z	~	270-500	≥20	Including general use, mechanical bite mouth with, deep red , super deep red with material. The coating properties and welding properties of the alloy are better.
		DX52D+Z	140-300	270-420		≥22
		DX53D+Z	140-260	270-380		≥26
		DX54D+Z	140-220	270-350		≥30
Structure Galvanized Steel	S220GD+Z	≥220	≥300	≥18	Can be used for structural purposes, corrosion resistance and good processing performance
		S250GD+Z	≥250	≥330		≥17
		S280GD+Z	≥280	≥360		≥16
		S320GD+Z	≥320	≥390		≥15
		S350GD+Z	≥350	≥420		≥14
		S400GD+Z	≥400	≥470		~
		S500GD+Z	≥500	≥530		~
		S550GD+Z	≥550	≥560		~

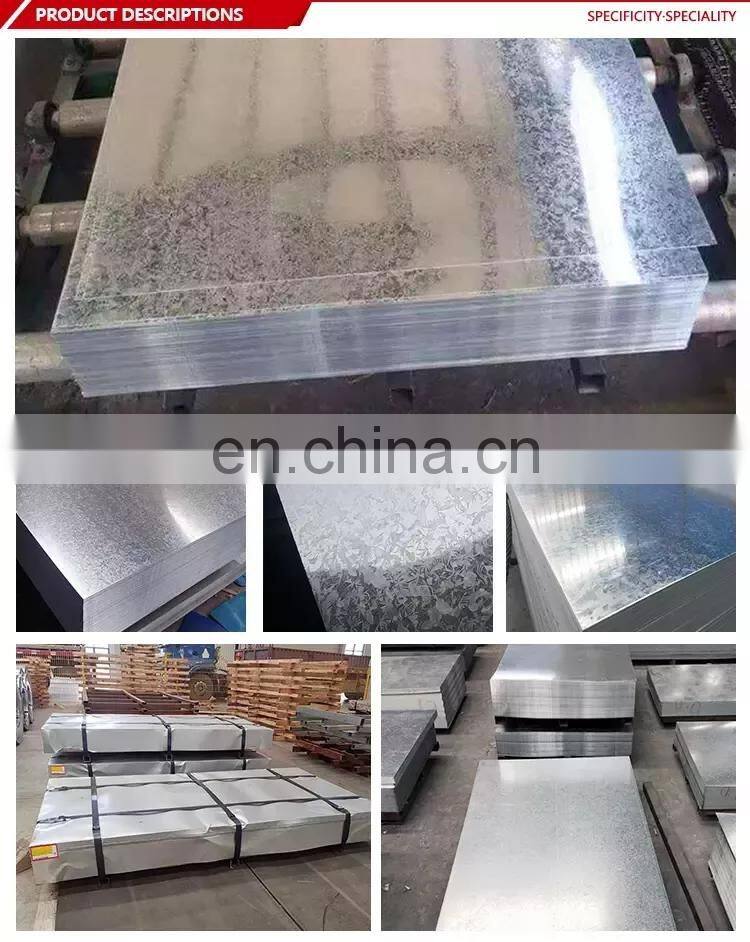

Product Details

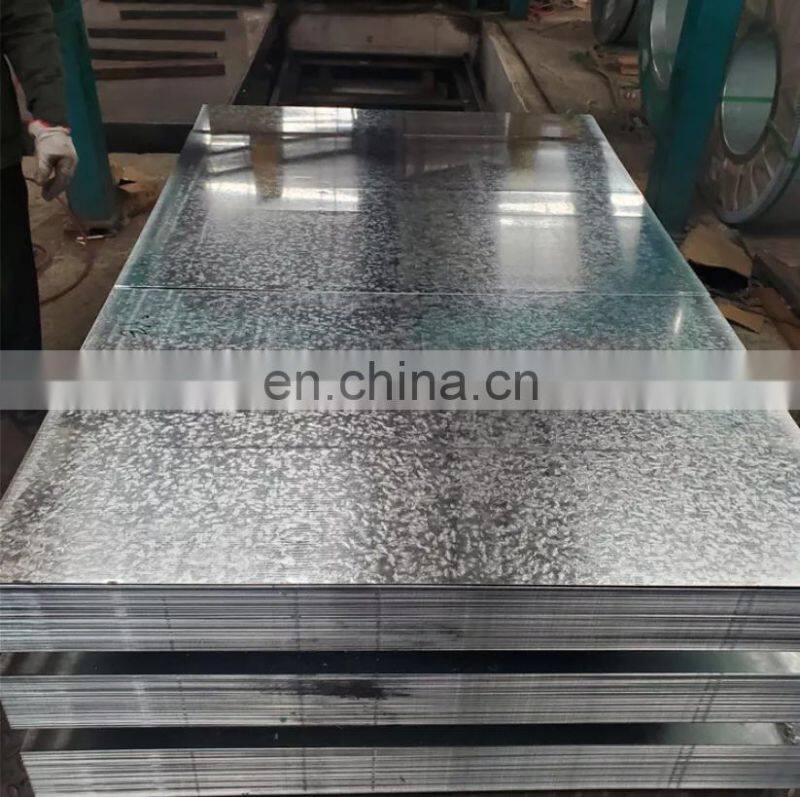

Galvanized Steel Sheet is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.

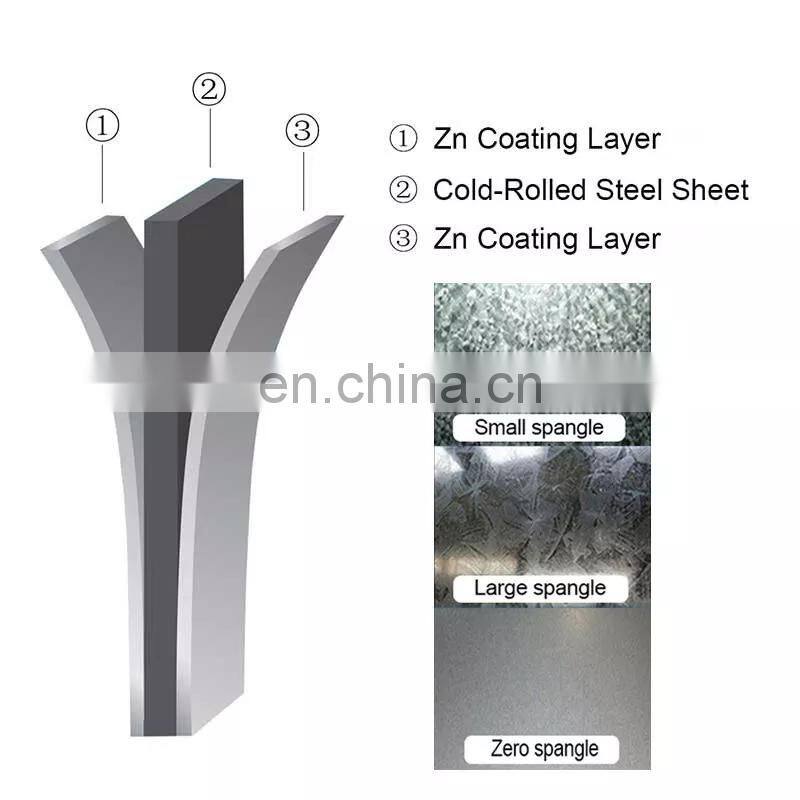

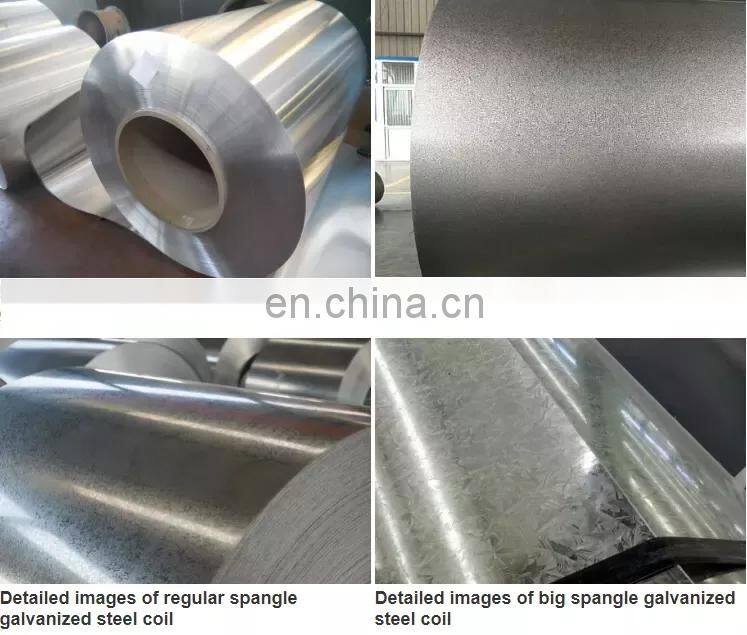

After the hot-dip galvanized steel sheet is pulled out of the zinc pot, the appearance of the crystal grains formed as the zinc layer cools and solidifies is called spangles. The size, brightness and surface morphology of spangles depend on a series of factors, but they are mainly related to the composition of the zinc layer and the cooling method.

Smooth surface

The zinc layer has uniform thickness and strong adhesion.

No peeling and good corrosion resistance. The surface is very smooth and clean, zinc flower is symmetrical, beautiful.

Zinc coated

With the cold rolled steel of different strength and thickness

as substrate, it is produced through applying the zinc coat on both faces by hot dip process.

Corrosion resistance

Galvanized steel sheet is defined as a carbon steel sheet coated with zinc on both sides. Zinc coating is one of the most effective and economical methods to protect bare steel plates. Zinc can act as a barrier between steel and the environment, it will sacrifice itself to protect the steel plate below.

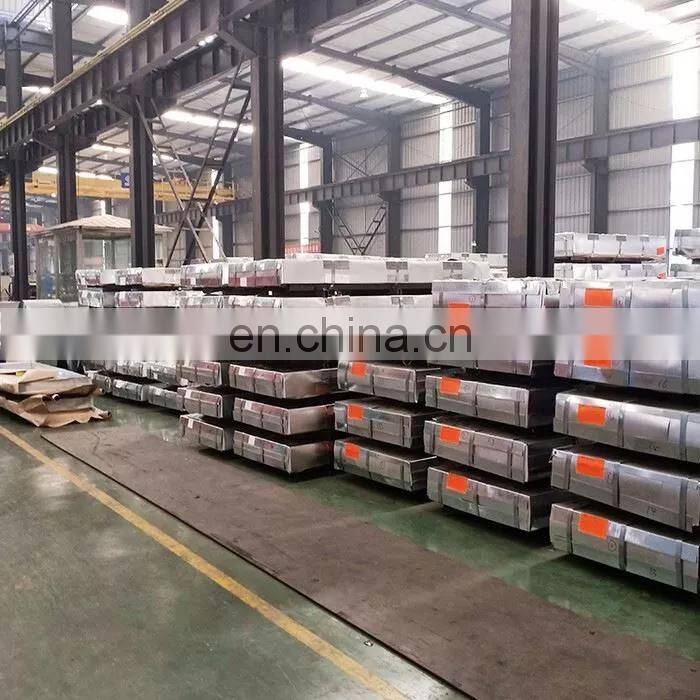

Large inventory

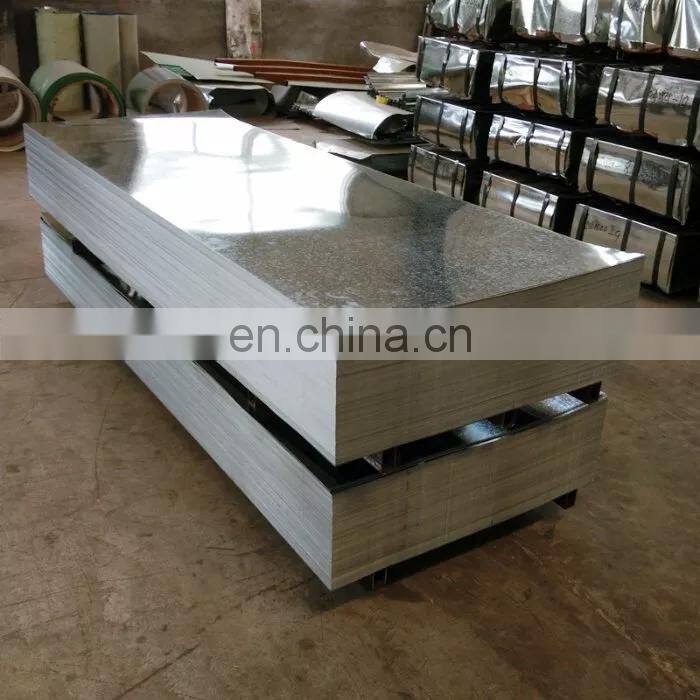

AIl products are packed and warehoused after passing the inspection, and delivered in one order.So as to ensure that the
customer's products can be delivered in the shortest time.You don't have to worry about the quality and transportation of the
goods at all.

Application

Galvanized steel sheet products are mainly used in construction, light industry, automobile, agriculture, animal husbandry,fishery and other industries. Such as building roofs, highway guardrails, sheet metal processing, roof grilles, household appliance enclosures, ventilation ducts, chimneys, kitchen utensils, grain storage and transportation, frozen processing of meat and aquatic products, etc.

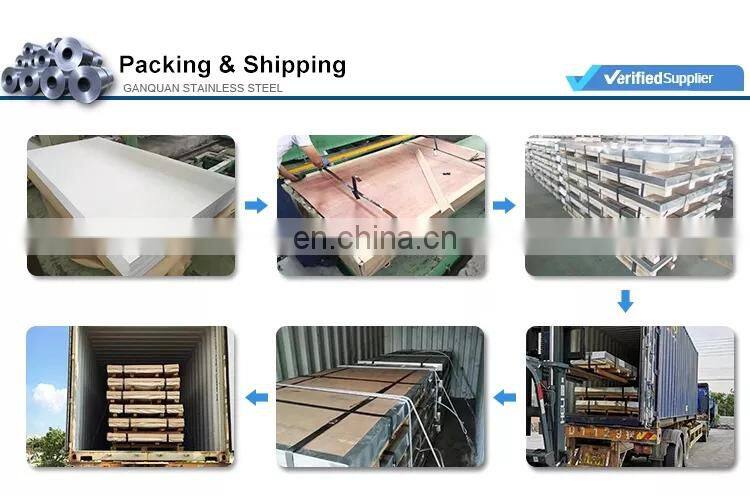

Packing & Delivery

Package	Standard export seaworthy package,suit for all kinds of transport, or as required.
Package		Water-proof Paper + Edge protection + Wooden Pallets
Bulk Size	Any size
Loading Port	Tianjin, Qingdao Port or any China Seaport
Container	1*20ft container load Max. 25 Ton, Max. length 5.8m
Container		1*40ft container load Max. 25 Ton, Max. Length 11.8m
Delivery Time	7-15 days or according to the order's quantity

Compony Profile

Shandong Ganquan Import & Export co., ltd. is located in Jinan, Shandong Province, with a registered capital of 31.68 million yuan. It is a professional steel company integrating industry and trade.The company's products include Stainless steel, carbon steel, galvanized steel,round steel,I-shanpe steel, aluminized sheet,aluminum pipe, copper sheet and other profiles, . Products are widely used in chemical, pharmaceutical, electric power, railway,
automotive, paper and construction engineering And other industries and fields. The company has long-term close trade relations with Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel,Jinxi Iron and Steel and other well-known domestic steel companies. Over the years, our company has won the trust of our customers with
high-quality products, first-class service and reasonable price. With the favor, our products are spread all over the country!

Certifications

service&Feedback

FAQ

1. Q: Are you a factory or trading company?

A: We are a Chinese manufacture of steel pipes with both factories and trading companies.

2. Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

3. Q:what is your delivery time ?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has
stock.

4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.

5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE，API authentication. From material to products, we inspect each process to keep good quality.

6. Q:How can you ensure what I got will be good ?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.

7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; We
respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.

8. Q:How about MOQ?
A:At least 5-10 tons for the unit dimension pipes and 1ton for stock pipes. Please feel free to leave us message if you have any question about us and our products.
