Product description

Our company offers professional PU sandwich panel production line. Our PU foam machine is characterized by uninflammability, moistureproof capacity, insect-resistance, sound insulation, and light weight. Besides, it is never out of shape whether in dry or wet conditions. It has good heat preservation capacity.

 pir panel machine

sandwich panel mac

pir panel machinehine

Main technical parameters of the production line

1. Production type: totally continuous production with PLC controlling

2. PU foam thickness: 30-200mm

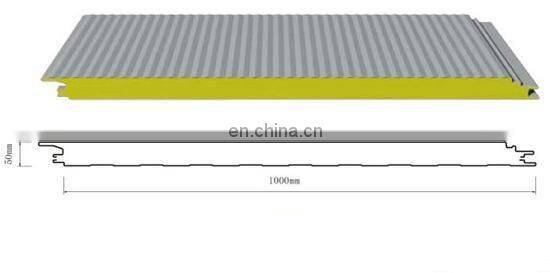

3. Standard Sandwich Panel Size:1000mm in Width

4. Sandwich panel length: as per the customer need

5. Linear speed of production: 2-6m/min

6. Reciprocating times of injection head per minute: <60

7. Composite structure: position fixed by double rubber belt conveyer

8. Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable

9. Main Power of production: ≥ 45KW

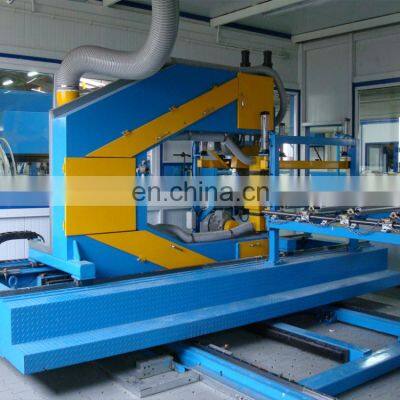

10. Length cutting: pneumatic piston driving, non-stop cutting via sliding table

11. Electronic controlling system: PLC controlling system

12. Machine dimension: about 58 meter x 4 meter

13. Total gross weight: about 46 tons

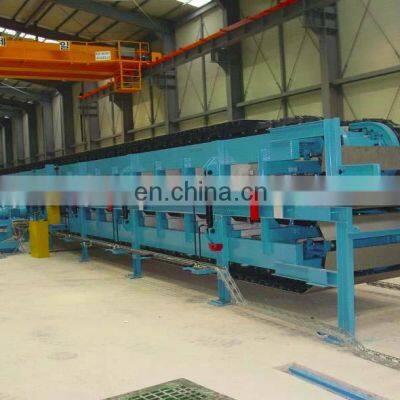

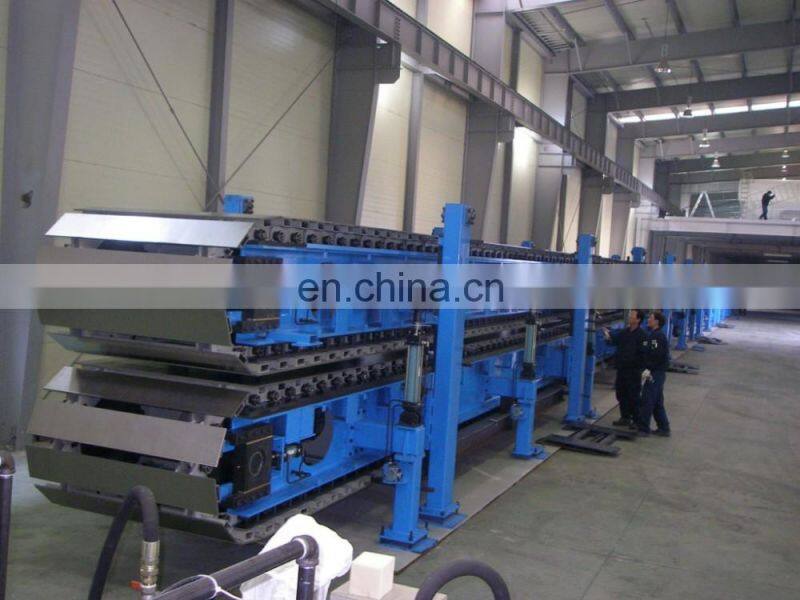

Main components

sandwich panel machine

Working flow

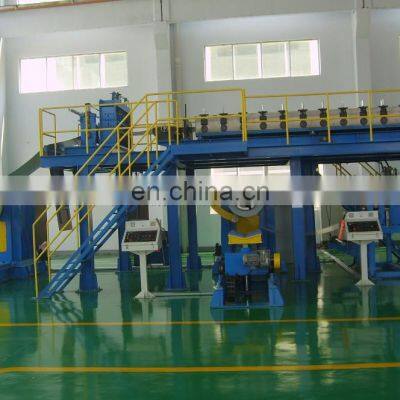

Upper decoiling – roll forming

Bottom decoiling – roll forming – PU foaming & injecting – PU solidifying – length cutting – run out

pir panel machine

Our service

1. Professional mechanical background sales for better undestanding customer's need.
2. Experienced in China machine industry for supplying comprehensive machines and equipments

3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer

4. Engineers available to service machine overseas, for example installation, training, etc

5. Lifelong service for spares, ware parts, technical supporting, etc
