KB030XP0 Inch Size Four Point Contact Open Bearing 76.2x92.075x7.938mm KB030CP0/KB030AR0

KB030XP0 Inch Size Four Point Contact Open Bearing 76.2x92.075x7.938mm KB030CP0/KB030AR0

KB030XP0 Thin section four point contact ball bearing  belongs to KB SERIES of thin section ball bearings, the KB SERIES include KBCP0, KBXP0 and KBAR0,which represented : Type-C : Deep Groove  bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon ball or steel ball as requested.

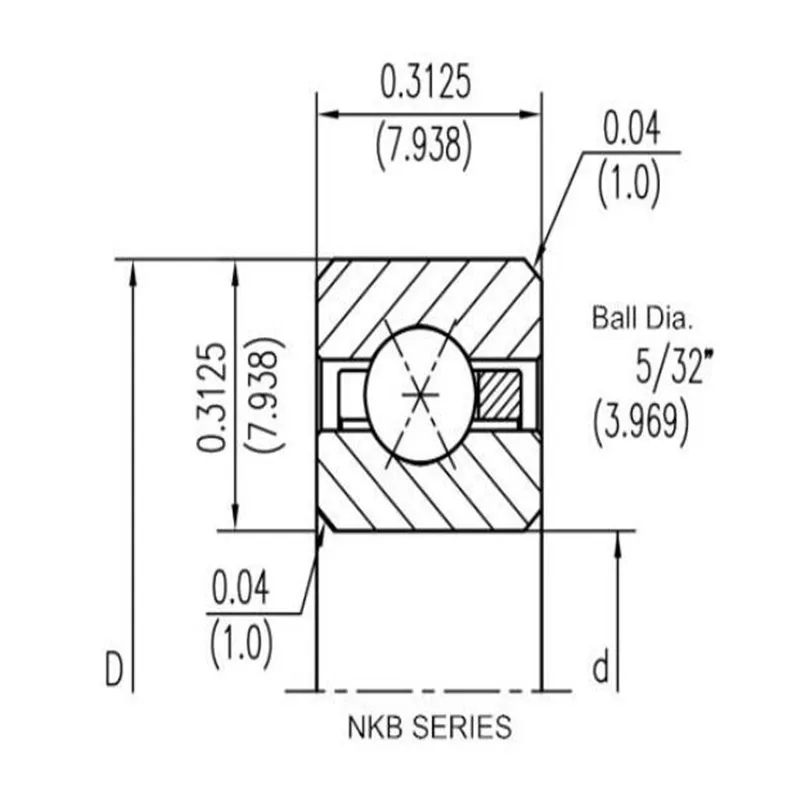

The bore size of KB SERIES are ranged from 2 inches to 20 inches and the outer diameters are arranged from 2.625 inches to 20.625 inches, while the Cross Section is constant, that is 5/16 inch.

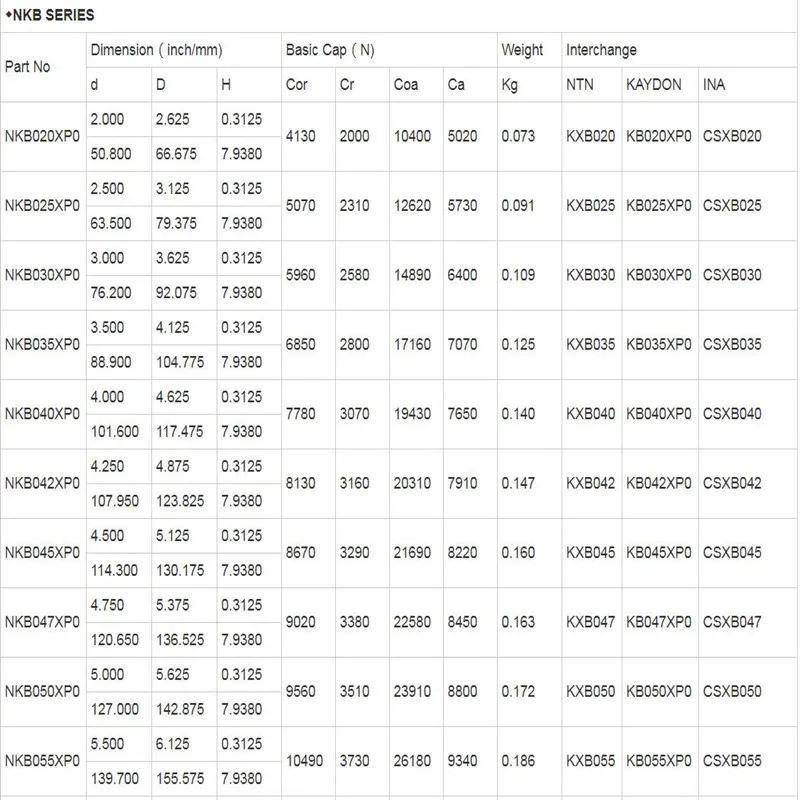

Parameters:

Product Number: NKB030XP0
HS Code:848213000
Structure:Four point contact
Number of Rows:Single
Inside Diameter:76.2 mm
Outside Diameter:92.075 mm
Thickness:7.938 mm
Dimensions:76.2 x 92.075 x 7.938 mm
Weight:0.109 KG
Basic dynamic load rating (Cr):2580 N
Basic static load rating (Cor):5960 N
Precision Rating:Po,P4,P6
Bearing Material:52100 Chrome steel
Cage material:Brass, Nylon
Seals Type:Open
Ball Material:Ceramics, Stainless steel, Chrome steel
Shipping Ways:Courier, Sea ,Air
Country of Origin:China
Quality Control: ISO 9001-2015

About Our Stock

For  those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

Customized Bearings Show

Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested  in the customized design, please feel free to leave a message or contact us directly.

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer. Our registered name :Luoyang BOBI Precision Bearing Co.,Ltd.

Q: How long is your delivery time?
A: Generally it is 3-7 days after full payment if the goods are in stock. or it is 15-35 days, if the goods are not in stock, based on order quantities.

Q: What is your terms of payment ?
A: We accept T/T in advance , L/C .We'll keep you be informed by e-mail for the production and  the photos of the products and packages shall be send to you by e-mail before you pay the balance.

Q: What's your shipment method?
A: We ship by Express FedEX, UPS, DHL, EMS and by air or sea for large batches.

Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q:  Is certified according to the latest standards?
A: We have certified by ISO 9001:2015

Q: How do you keep your customer satisfied and willing to set up long terms of business with your company ?
A1:We keep good quality and competitive price to ensure our customers to be benefit ;
A2: We respect every customer  and  serve them as a friend no matter where they come from.

Applications:

Our  BOBI products are widely used in the following fields:
Medical Equipment,  Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
