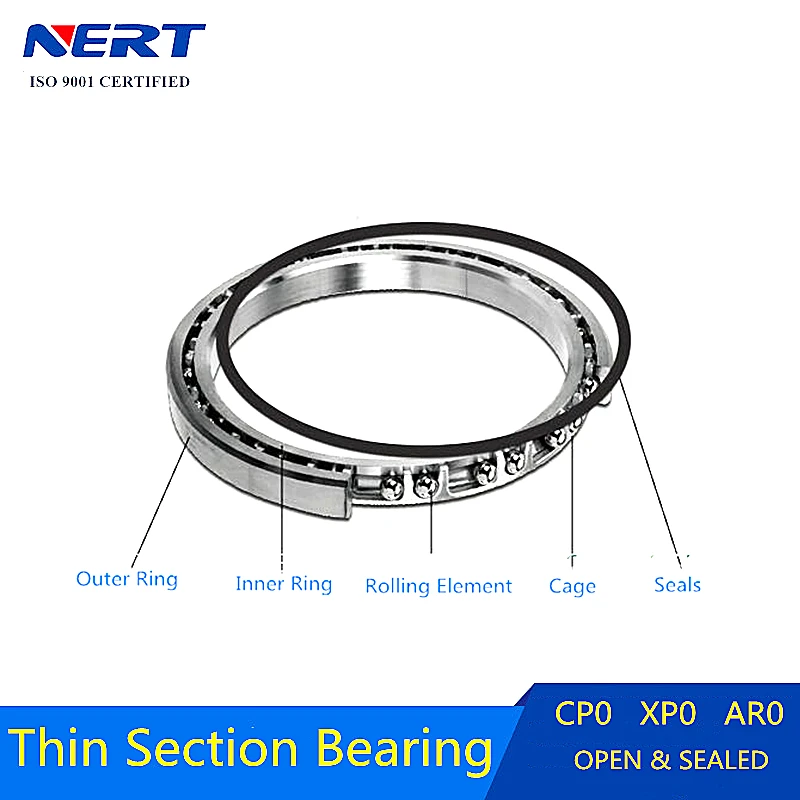

KA040CP0 Thin section radial  contact ball bearing  belongs to KA SERIES of thin section ball bearings, the KA SERIES include KACP0, KAXP0 and KAAR0,which represented : Type-C : Deep Groove  bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon ball or steel ball as requested.

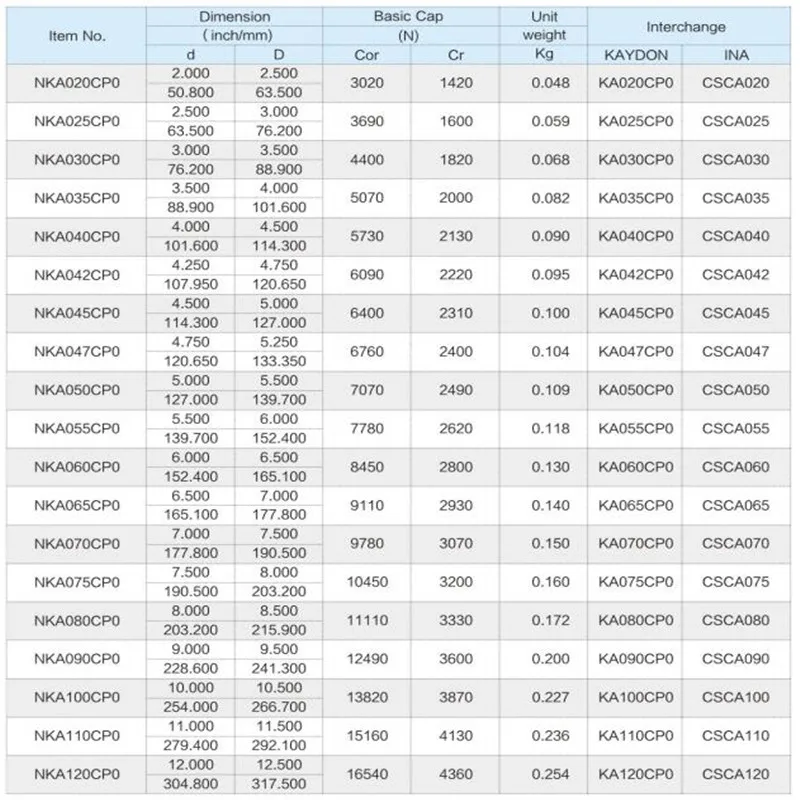

Parameters:

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open

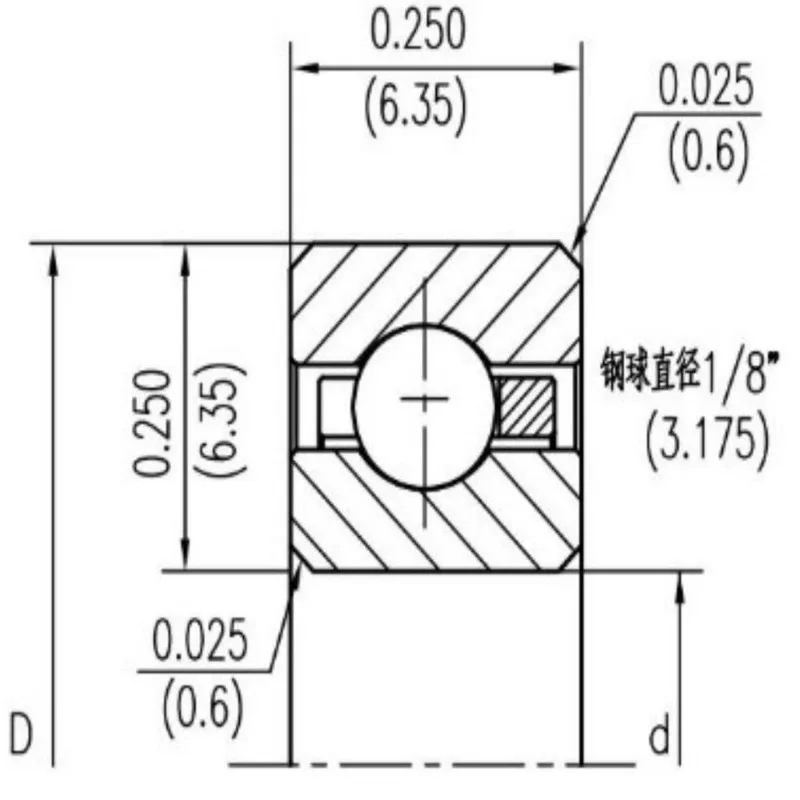

Cross Section 1/4″ x 1/4″
Part Number KA040CP0(NKA040CP0)
Bore Dia (d) 4.000"(101.6mm)
Bore Dia Tolerance -0.0008" – 0"
Outer Dia (D) 4.500"(114.3mm)
Outer Dia Tolerance -0.0006" – 0"
Width (B) 0.25"(6.35mm)
Width Tolerance +.000 –.005"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (lbs) 756
Static radial (lbs) 1290
Lubrication Lubricated
Temperature Range -20° to 180 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
Weight (lbs) 0.200

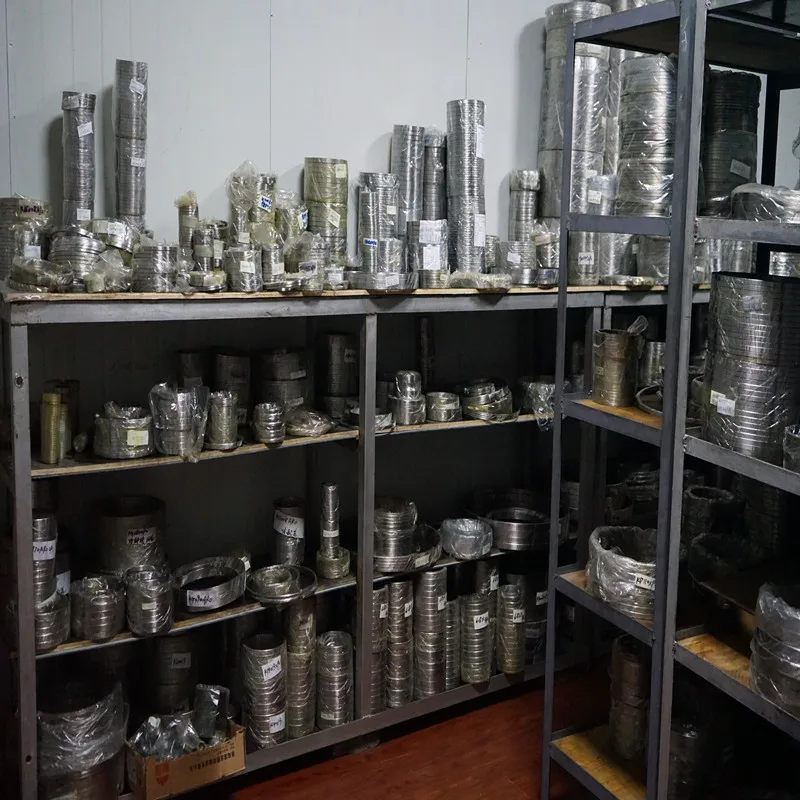

About Our Stock

For those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

Customized Design

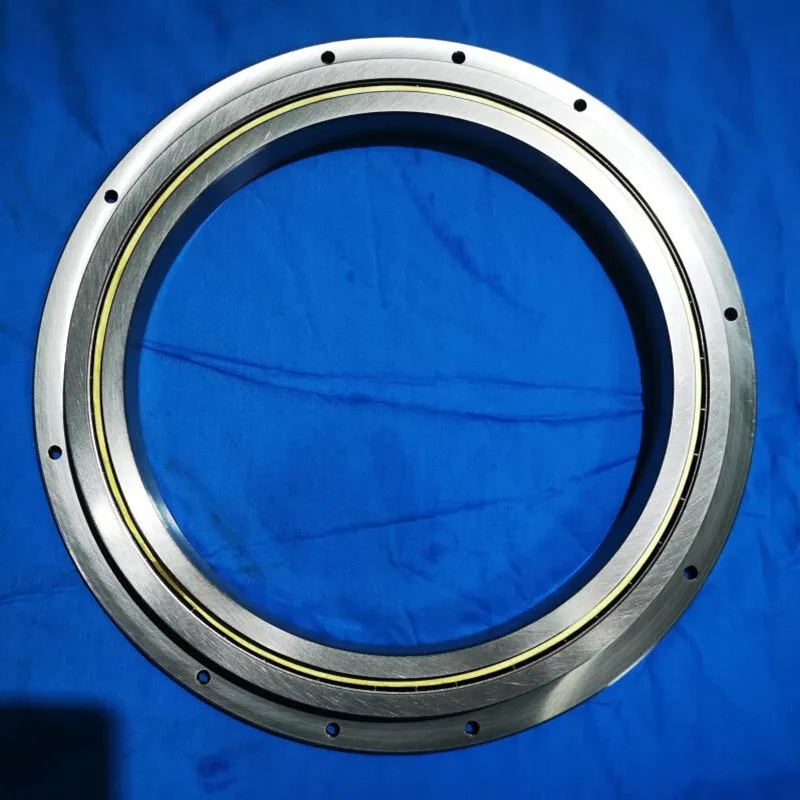

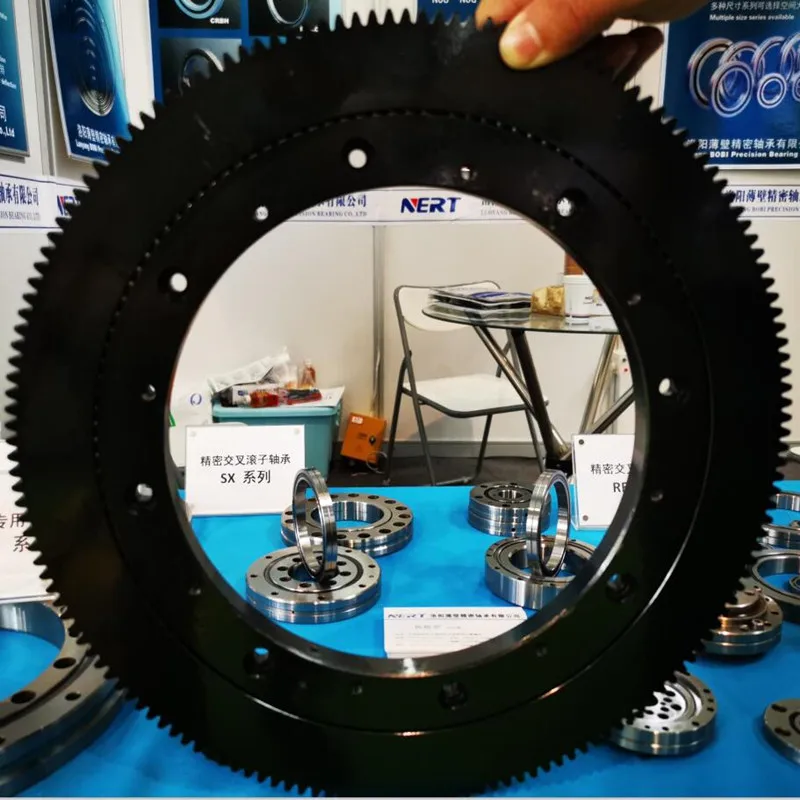

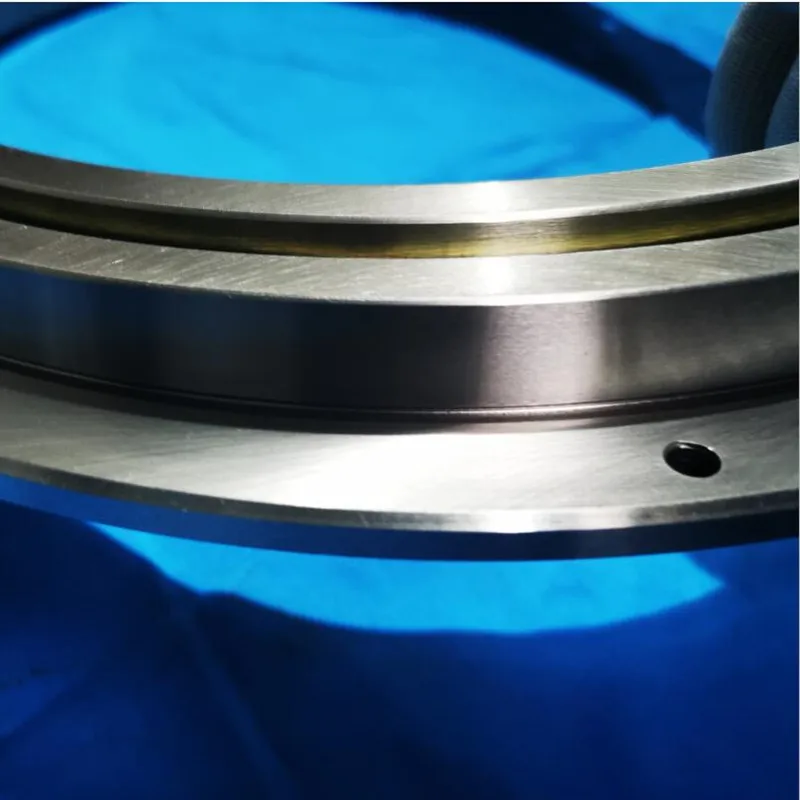

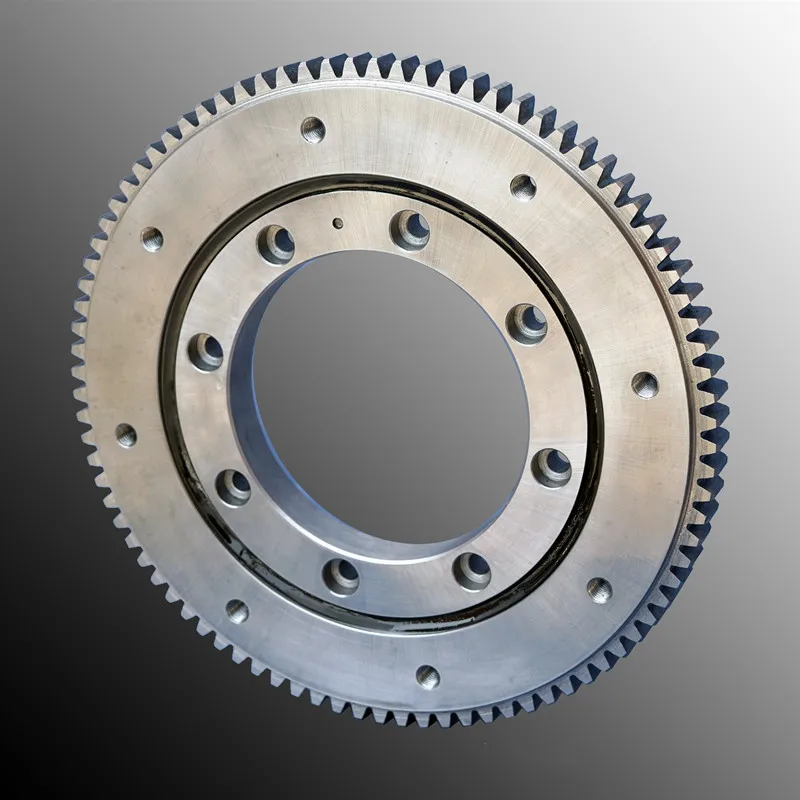

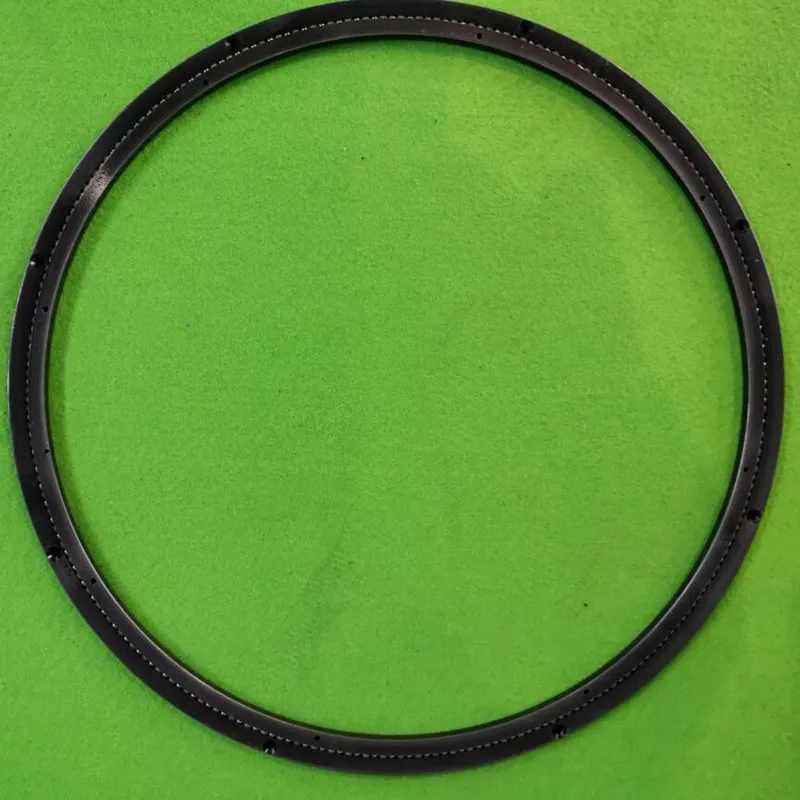

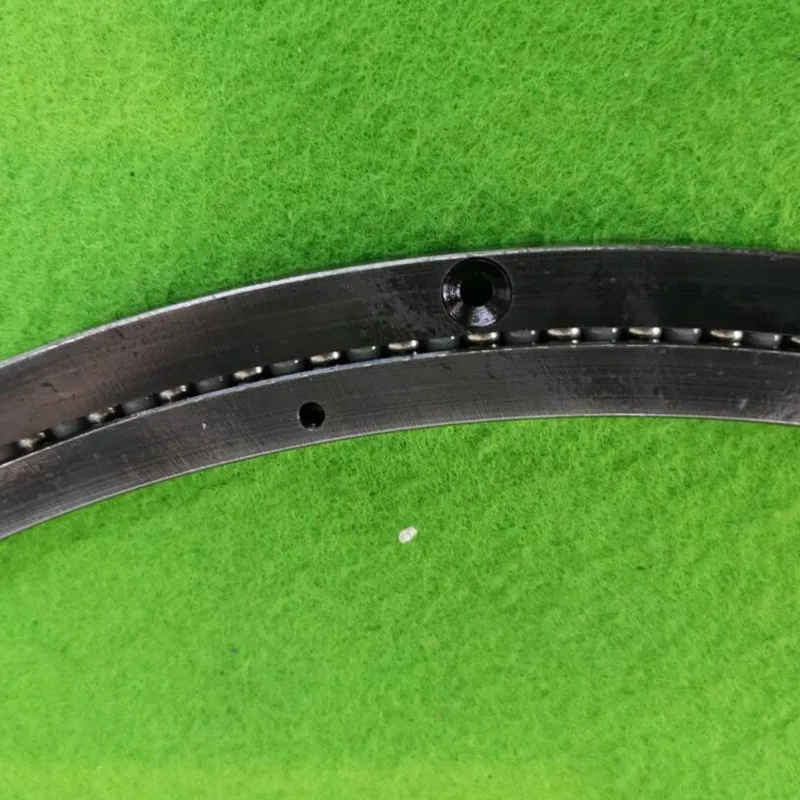

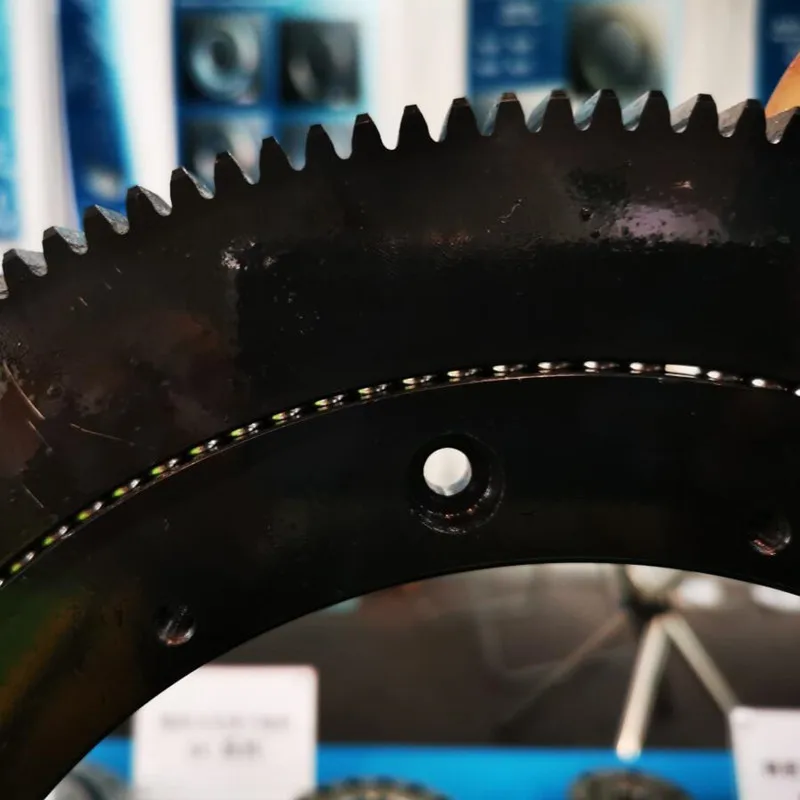

Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested  in the customized design, please feel free to leave a message or contact us directly.

Applications:

Our BOBI products are widely used in the following fields: Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.

FAQ:

Q: Are you trading company or manufacturer ?
A: We are manufacturer. Our registered name :Luoyang BOBI Precision Bearing Co.,Ltd.
Q: How long is your delivery time?
A: Generally it is 3-7 days after full payment if the goods are in stock. or it is 15-35days, if the goods are not in stock, based on order quantities.
Q: What is your terms of payment ?
A: We accept T/T in advance , L/C .We'll keep you be informed by e-mail for the production and the photos of the products and packages shall be send to you by e-mail before you pay the balance.
Q: What's your shipment method?
A: We ship by Express FedEX, UPS, DHL, EMS and by air or sea for large batches.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF. Q: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q: Is certified according to the latest standards?
A: We have certified by ISO 9001:2015
Q: How do you keep your customer satisfied and willing to set up long terms of business with your company ?
A1:We keep good quality and competitive price to ensure our customers to be benefit ;
A2: We respect every customer and serve them as a friend no matter where they come from.
