KA030CP0 Precision Equal Section Thin Bearing Thin Section Bearing Width (B) 6.35mm Harmonic Drive Bearing KA 030 CP

KA030CP0 Precision Equal Section Thin Bearing  Thin Section Bearing  Width (B) 6.35mm Harmonic Drive  Bearing CSCA 030

Ball Bearings ? Thin Section Bearings ? Inch Size Thin Section Open Bearings ? KA Series Type C Thin Section Bearings ? KA030CP0

KA030CP0 Thin section radial  contact ball bearing  belongs to KA SERIES of thin section ball bearings, the KA SERIES include KACP0, KAXP0 and KAAR0,which represented : Type-C : Deep Groove  bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon ball or steel ball as requested.

Parameters:

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open

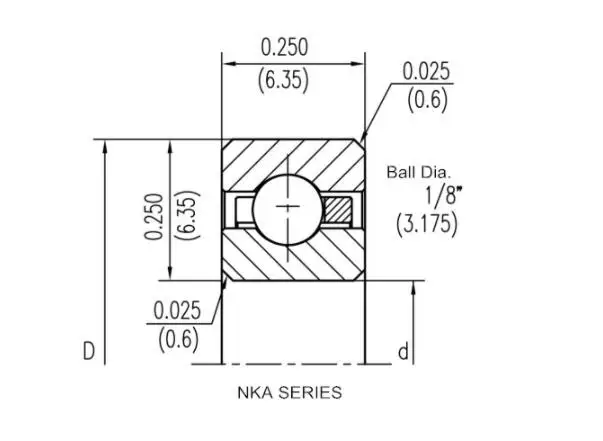

Cross Section 1/4″ x 1/4″(6.35x6.35mm）
Part Number KA030CP0(NKA030CP0)
Bore Dia (d) 3.000"（76.2mm）
Bore Dia Tolerance -0.0006"–0"
Outer Dia (D) 3.500"（88.9mm）
Outer Dia Tolerance -0.0006"–0"
Width (B) 0.25"(6.35mm）
Width Tolerance +.000 –.005"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (lbs) 487
Static radial (lbs) 990
Lubrication Lubricated
Temperature Range -20° to 180 ℃
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
Weight (lbs) 0.150

Our Stock

For those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.

The Applications of NERT Bearings

Our BOBI products are widely used in the following fields: Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.

NERT Bearings : New Products

Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested  in the customized design, please feel free to leave a message or contact us directly.
